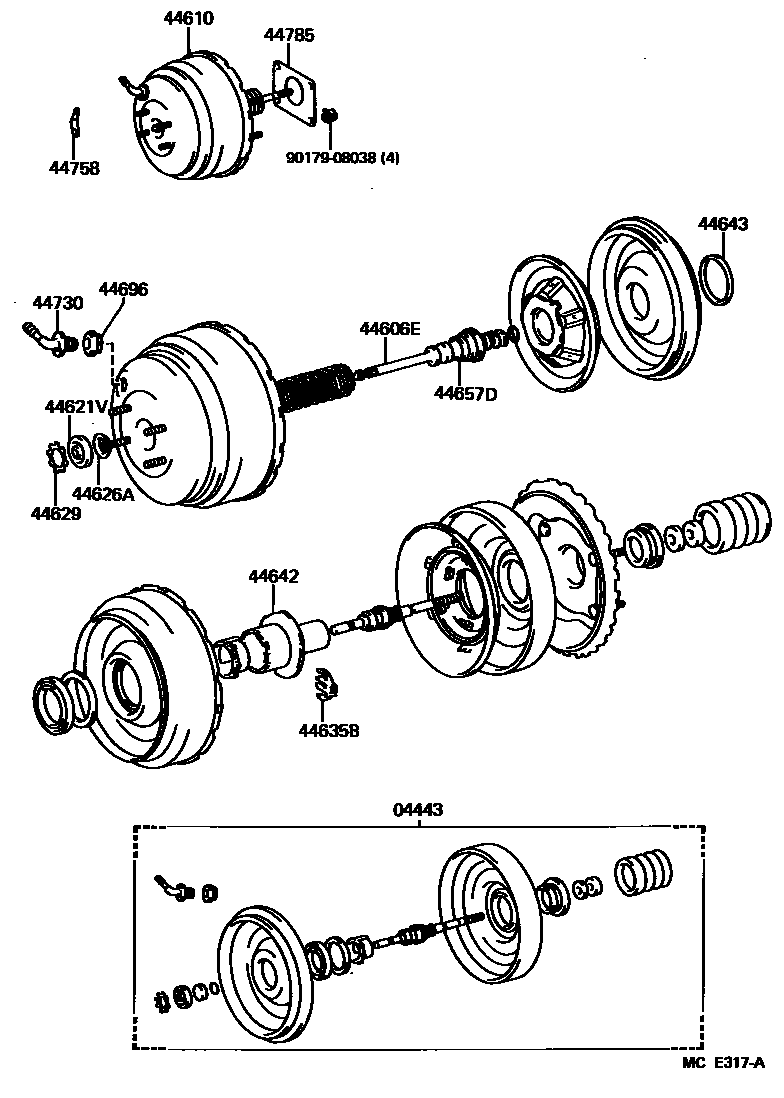

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-60310iFJ62198708-199001

main04443-60320iHJ6#198708-199001

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-20800iFJ62,HJ6#198708-199001

44610BOOSTER ASSY, BRAKE

main44610-60510iFJ62198708-199001

main44610-60520iHJ6#198708-199001

44621VSEAL, BOOSTER BODY

main44621-14030iFJ62,HJ6#198708-199001

44626ARETAINER, BOOSTER BODY SEAL

main44626-60010iFJ62,HJ6#198708-199001

44629RING, CIRCULAR INTERNAL

main44628-60010iFJ62,HJ6#198708-199001

44635BKEY, VALVE STOPPER

main44635-20800iFJ62,HJ6#198708-199001

44642PISTON, BRAKE BOOSTER

main44642-20800iFJ62,HJ6#198708-199001

44643RETAINER, DIAPHRAGM

main44643-20800iFJ62,HJ6#198708-199001

44657DCASE, REACTION DISC

main44657-28370iFJ62,HJ6#198708-199001

44696GROMMET, CHECK VALVE

main90480-24439iFJ62198708-199001

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44580-22030iHJ60..ATM198708-199001

BOOSTER SIDE

main44730-14050iFJ62198708-199001

main44730-60040iHJ61;HJ60..MTM198708-198808

VACUUM PUMP SIDE

main44730-60050iHJ61;HJ60..MTM198808-199001

VACUUM PUMP SIDE

44758BRACKET, VACUUM CHECK VALVE

main44758-28060iFJ62198708-199001

44785GASKET, BRAKE BOOSTER

main44785-35020iFJ62,HJ6#198708-199001

9017908038

main90179-08038

15 parts on this diagram · 3 diagrams in section
