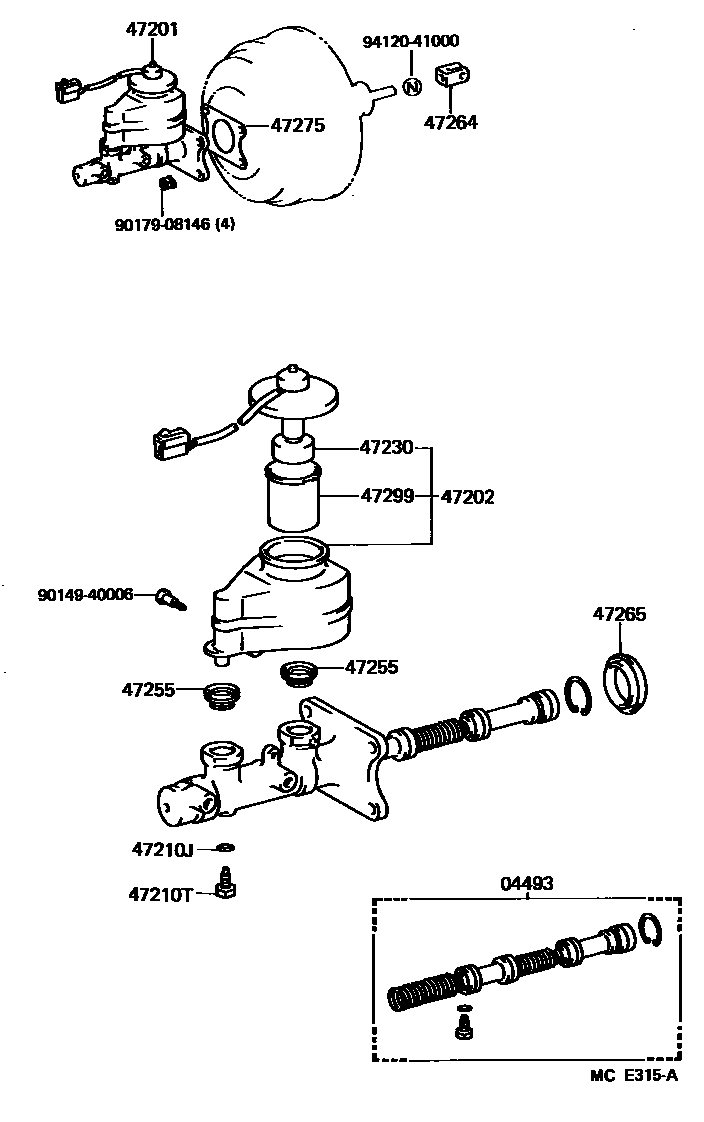

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-60090iFJ62..IV4198708-199001

sub04493-60170

main04493-60180iFJ62,HJ6#..CBU198708-199001

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-60210iFJ62..IV4198708-199001

main47201-60370iFJ62,HJ6#..CBU198708-199001

sub47201-60380

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20320iFJ62,HJ6#..CBU198708-199001

main47202-60030iFJ62..IV4198708-199001

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iFJ62,HJ6#198708-199001

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iFJ62..IV4198708-199001

main90109-06077iFJ62,HJ6#..CBU198708-199001

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12070iFJ62,HJ6#198708-199001

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iFJ62,HJ6#..CBU198708-199001

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-30040iFJ62,HJ6#198708-199001

47265BOOT, MASTER CYLINDER

main47265-20050iFJ62,HJ6#198708-199001

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iFJ62..IV4198708-199001

main47275-24010iFJ62,HJ6#..CBU198708-199001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-14010iFJ62..IV4198708-199001

main47299-32010iFJ62,HJ6#..CBU198708-199001

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

14 parts on this diagram · 2 diagrams in section
