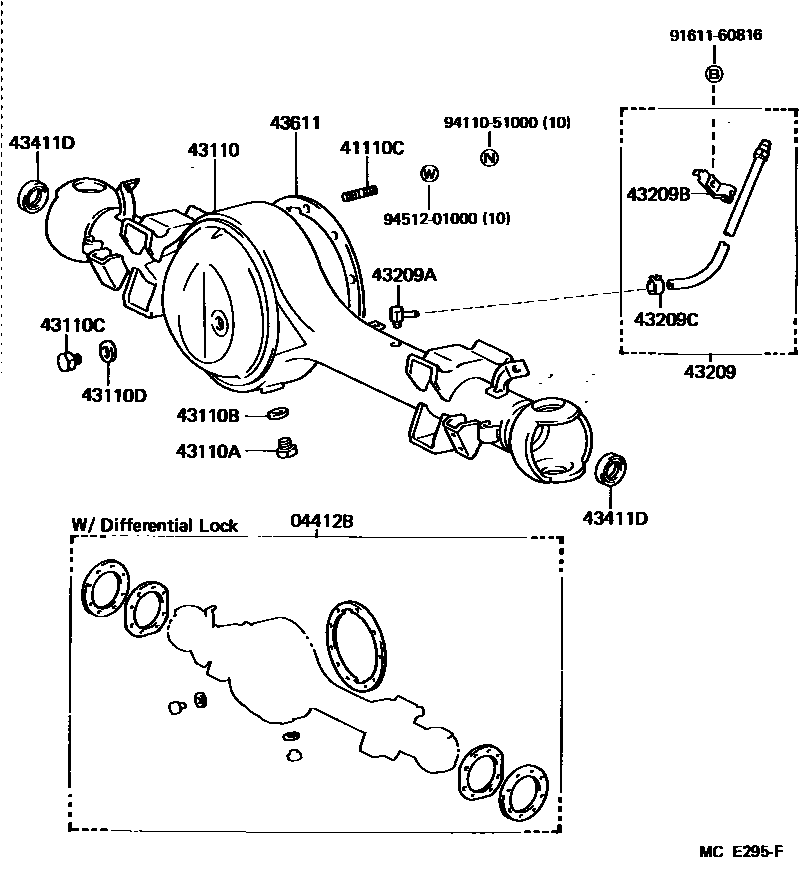

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1

04412BGASKET KIT, FRONT DIFFERENTIAL CARRIER

main04412-60020iFJ62..CBU..CBR198708-199001

sub04412-60021

main04412-60050iFJ62,HJ6#..CBR,DSL,TD198708-199001

sub04412-60051

41110CBOLT, STUD (FOR FRONT DIFFERENTIAL CARRIER)

main90116-10074×4iFJ62..CBU..CBR198906-199001

main90116-10075×4iFJ62..CBU..CBR198906-199001

main90116-10122×2iFJ62..CBU..CBR198708-199001

43110HOUSING ASSY, FRONT AXLE

main43110-60144iFJ62,HJ6#198708-199001

main43110-60211iFJ62..CBU..CBR198708-199001

43110APLUG SUB-ASSY, DRAIN

main90341-18057iFJ62,HJ6#198708-199001

43110BGASKET, DRAIN

main12157-10010iFJ62,HJ6#198708-199001

43110CPLUG (FOR FRONT AXLE HOUSING)

main90341-18006iFJ62,HJ6#198708-199001

43110DGASKET (FOR FRONT AXLE HOUSING PLUG)

main12157-10010iFJ62,HJ6#198708-199001

43209HOSE SUB-ASSY, FRONT AXLE BREATHER

main43209-60011iFJ62198708-199001

main43209-60060iHJ6#198708-199001

43209AUNION (FOR FRONT AXLE BREATHER HOSE)

main90404-10019iFJ62,HJ6#198708-199001

43209BCLAMP (FOR FRONT AXLE BREATHER HOSE)

main90461-10387iHJ6#198708-199001

43209CCLIP, HOSE (FOR FRONT AXLE BREATHER HOSE)

main96132-30600iHJ6#198708-199001

sub96132-51100

43411DSEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT)

main90311-33085×2iFJ62,HJ6#198708-199001

43611GASKET, FRONT AXLE DIFFERENTIAL CARRIER

main42181-36010iFJ62,HJ6#198708-199001

sub42181-60060

9161160816

main91611-60816

9411051000

main94110-51000

9451201000

main94512-01000

16 parts on this diagram · 4 diagrams in section
