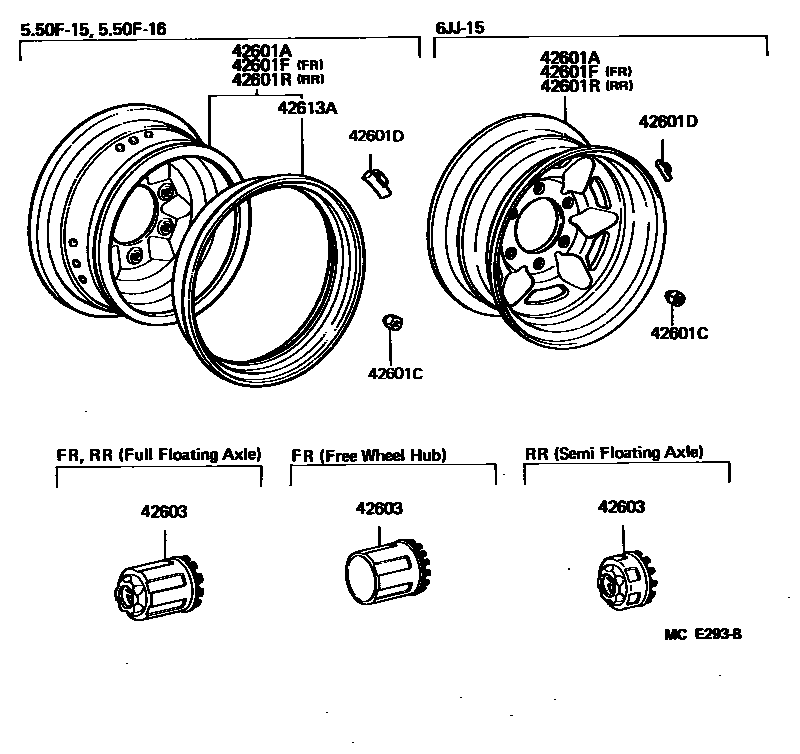

DISC WHEEL & WHEEL CAP

42601AWHEEL, DISC (FOR SPARE)

main42601-35260-05iFJ62,HJ60..STD..CBU198708-199001

sub42601-35260

main42601-35260-05iFJ62,HJ60..STD..CBU198708-199001

sub42601-35260

main42601-60200-05iFJ62,HJ61..VX198708-199001

sub42601-60200

main42601-60210iFJ62,HJ61..VX198708-199001

main42601-60221iFJ62,HJ60..GX198708-199001

main42610-60012iFJ62,HJ60..STD..CBU198708-199001

sub42610-60151

main42610-60100iFJ62..IV4198708-199001

sub42610-60101

42601CNUT, HUB (FOR AXLE)

main90942-01047iFJ62,HJ6#198708-199001

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03045iFJ62,HJ60..STD198708-199001

sub90942-03079

main90942-03047iFJ62,HJ60..STD198708-199001

sub90942-03081

main90942-03049iFJ62,HJ60..STD198708-199001

sub90942-03083

main90942-03050iFJ62,HJ60..STD198708-199001

sub90942-03080

main90942-03051iFJ62,HJ60..STD198708-199001

sub90942-03085

main90942-03052iFJ62,HJ60..STD198708-199001

sub90942-03082

main90942-03053iFJ62,HJ60..STD198708-199001

sub90942-03086

main90942-03064iFJ62,HJ60..STD198708-199001

sub90942-03084

main90942-03079iFJ62,HJ60..STD..CBU198708-199001

sub90942-03362

main90942-03080iFJ62,HJ60..STD..CBU198708-199001

sub90942-03364

main90942-03081iFJ62,HJ60..STD..CBU198708-199001

sub90942-03366

main90942-03082iFJ62,HJ60..STD..CBU198708-199001

sub90942-03368

main90942-03083iFJ62,HJ60..STD..CBU198708-199001

main90942-03084iFJ62,HJ6#..GX,VX198708-199001

main90942-03085iFJ62,HJ60..STD..CBU198708-199001

main90942-03086iFJ62,HJ6#..GX,VX198708-199001

sub90942-03081

sub90942-03083

main90942-03106iFJ62,HJ60..STD198708-199001

sub90942-03107

main90942-03107iFJ62,HJ60..STD..CBU198708-199001

sub90942-03360

42601FWHEEL, DISC (FOR FRONT)

main42601-35260-05iFJ62,HJ60..STD..CBU198708-199001

sub42601-35260

main42601-35260-05iFJ62,HJ60..GX198708-199001

sub42601-35260

main42601-60200-05iFJ62,HJ61..VX198708-199001

sub42601-60200

main42601-60210iHJ61198906-198907

main42601-60210iFJ62,HJ61..VX198708-199001

main42601-60221iHJ60..GX198906-198907

main42601-60221iFJ62,HJ60..GX198708-199001

main42610-60012iFJ62,HJ60..STD..CBU198708-199001

sub42610-60151

main42610-60100iFJ62..IV4198708-199001

sub42610-60101

42601RWHEEL, DISC (FOR REAR)

main42601-35260-05iFJ62,HJ60..GX198708-199001

sub42601-35260

main42601-35260-05iFJ62,HJ60..STD..CBU198708-199001

sub42601-35260

main42601-60200-05iFJ62,HJ61..VX198708-199001

sub42601-60200

main42601-60210iHJ60..GX198906-198907

main42601-60210iFJ62,HJ61..VX198708-199001

main42601-60221iHJ61198906-198907

main42601-60221iFJ62,HJ60..GX198708-199001

main42610-60012iFJ62,HJ60..STD..CBU198708-199001

sub42610-60151

main42610-60100iFJ62..IV4198708-199001

sub42610-60101

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-35080iFJ62,HJ6#..GX,VX198708-199001

main42603-60012iFJ62..GX198708-199001

RR,*FFA

sub42603-60013

main42603-60052iHJ60..STD198708-199001

RR,*SFA

sub42603-60053

42613ARING, DISC WHEEL SIDE

main42613-35010iFJ62,HJ60..STD..CBU198708-199001

main42613-60040iFJ62..IV4198708-199001

sub42613-60041

7 parts on this diagram · 1 diagram in section
