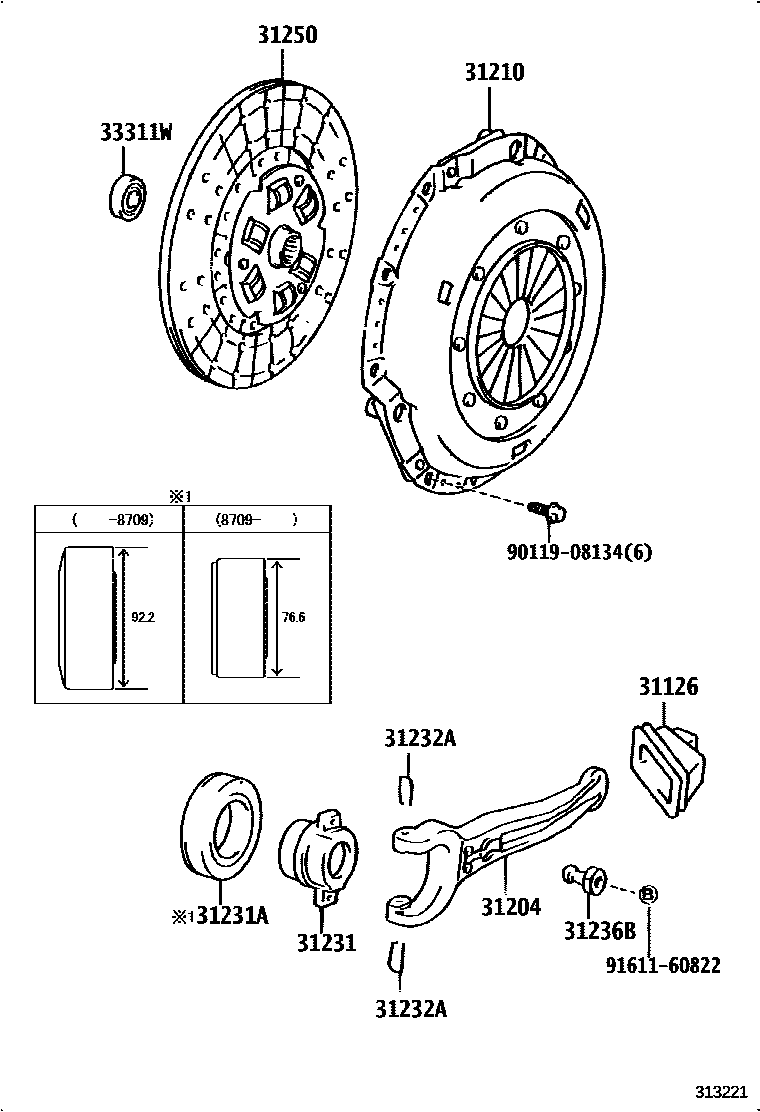

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-60021iFJ62,HJ6#..MTM198708-199001

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-60060iFJ62..CBR198708-199001

main31204-60070iHJ6#..MTM198708-199001

31210COVER ASSY, CLUTCH

main31210-36140iFJ62,HJ60..MTM198808-198910

main31210-36160iFJ62,HJ60..MTM198910-199001

sub31210-36161

main31210-60070iFJ62,HJ60..MTM198708-198712

main31210-60071iFJ62,HJ60..MTM198712-198808

main31210-60090iHJ61..MTM198708-198712

main31210-60091iHJ61..MTM198712-198910

main31210-60100iHJ61..MTM198910-199001

sub31210-60101

31231HUB, CLUTCH RELEASE BEARING

main31231-60050iHJ6#..MTM198708-198709

main31231-60051iHJ6#..MTM198709-199001

main31231-60070iFJ62198708-198709

main31231-60071iFJ62..CBR198709-199001

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45013iFJ62,HJ6#..MTM198709-199001

main90363-52001iFJ62,HJ6#..MTM198708-198709

31232ACLIP, RELEASE BEARING HUB

main31232-60020×2iFJ62,HJ6#..MTM198708-199001

31236BSUPPORT, RELEASE FORK

main31236-60020iFJ62..CBR198708-199001

main31236-60030iHJ6#..MTM198708-199001

31250DISC ASSY, CLUTCH

main31250-36340iFJ62..CBR198804-199001

sub31250-36341

main31250-60080iFJ62198708-198804

main31250-60170iHJ6#..MTM198708-199001

sub31250-60171

33311WBEARING (FOR INPUT SHAFT)

main90363-15004iFJ62,HJ6#..MTM198708-199001

9011908134

main90119-08134

9161160822

main91611-60822

11 parts on this diagram · 1 diagram in section
