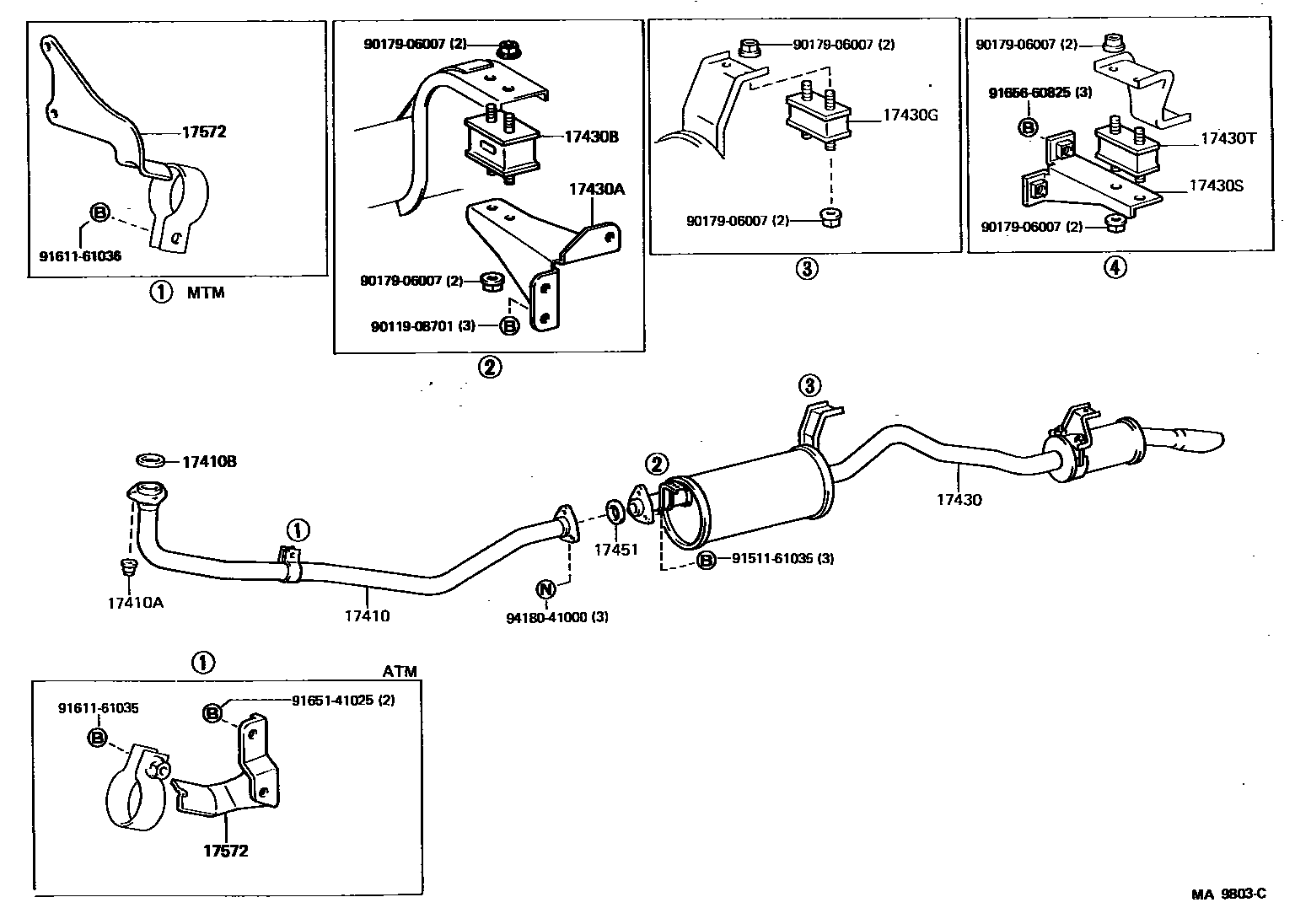

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-61170i3F..FJ62..CBU198708-199001

sub17401-61200

main17401-61210i3FE..FJ62198808-199001

main17401-68020i2H..HJ60198708-199001

main17401-68040i12HT..HJ61198708-199001

main17402-61010i3FE..FJ62198808-199001

main17410-61180i3F..FJ62..IV4198708-199001

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i3FE..FJ62198708-199001

17410BGASKET, EXHAUST PIPE

main90917-06004i3F#..FJ62198708-199001

sub90917-06039

main90917-06005i2H..HJ60198708-199001

sub90917-06042

main90917-06034i12HT..HJ61198708-199001

sub90917-06059

17430PIPE ASSY, EXHAUST, TAIL

main17405-61240i3FE..FJ62198808-199001

main17430-61241i3F..FJ62..CBU198708-199001

main17430-61251i3F..FJ62..IV4198708-199001

main17430-68051i2H..HJ60198708-199001

main17430-68061i12HT..HJ61198708-199001

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17574-61071i12HT,3F#,2H..FJ62,HJ6#198708-199001

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main17567-61030i12HT,3F#,2H..FJ62,HJ6#198708-199001

17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)

main17567-61030i12HT,3F#,2H..FJ62,HJ6#198708-199001

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17574-61060i12HT,3F#,2H..FJ62,HJ6#198708-199001

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17567-61030i12HT,3F#,2H..FJ62,HJ6#198708-199001

17451GASKET, EXHAUST PIPE

main90917-06012i3FE..FJ62198808-199001

NO.1

sub90917-06045

main90917-06023i3FE..FJ62198808-199001

NO.2

sub90917-06041

main90917-06024i12HT,3F#,2H..FJ62,HJ6#198708-199001

NO.3

sub90917-06073

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-61140i3F..FJ62198708-199001

main17571-61160i3FE..FJ62198808-199001

main17571-68010i2H..HJ60..ATM198708-199001

main17571-68020i2H..HJ60..MTM198708-199001

9011908701

main90119-08701

9017906007

main90179-06007

9151161035

main91511-61035

9161161035

main91611-61035

9161161036

main91611-61036

9165141025

main91651-41025

9165660825

main91656-60825

9418041000

main94180-41000

19 parts on this diagram · 4 diagrams in section
