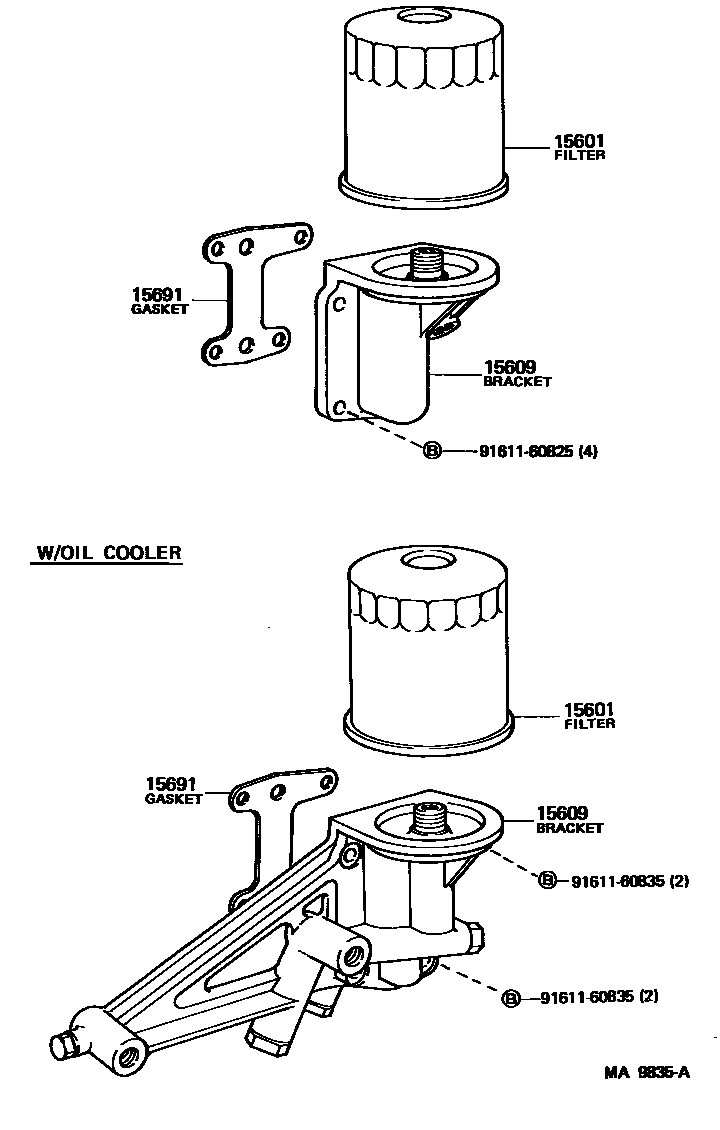

OIL FILTER

0001 1 0002 1

15601FILTER SUB-ASSY, OIL

main15600-41010i3F#..FJ62198708-199001

sub90915-40002

main15601-68010i12HT,2H..HJ6#198708-199001

15609BRACKET SUB-ASSY, OIL FILTER

main15609-61012i3FE..FJ62;3F..FJ62..IV4198708-199001

main15609-61020i3F..FJ62..CBU198708-199001

main15609-68030i12HT,2H..HJ6#198708-199001

15691GASKET, OIL FILTER

main15691-60010i3F#..FJ62198708-199001

sub15691-61010

main15691-68020i12HT,2H..HJ6#198708-199001

sub15691-68030

9161160825

main91611-60825

9161160835

main91611-60835

5 parts on this diagram · 2 diagrams in section
