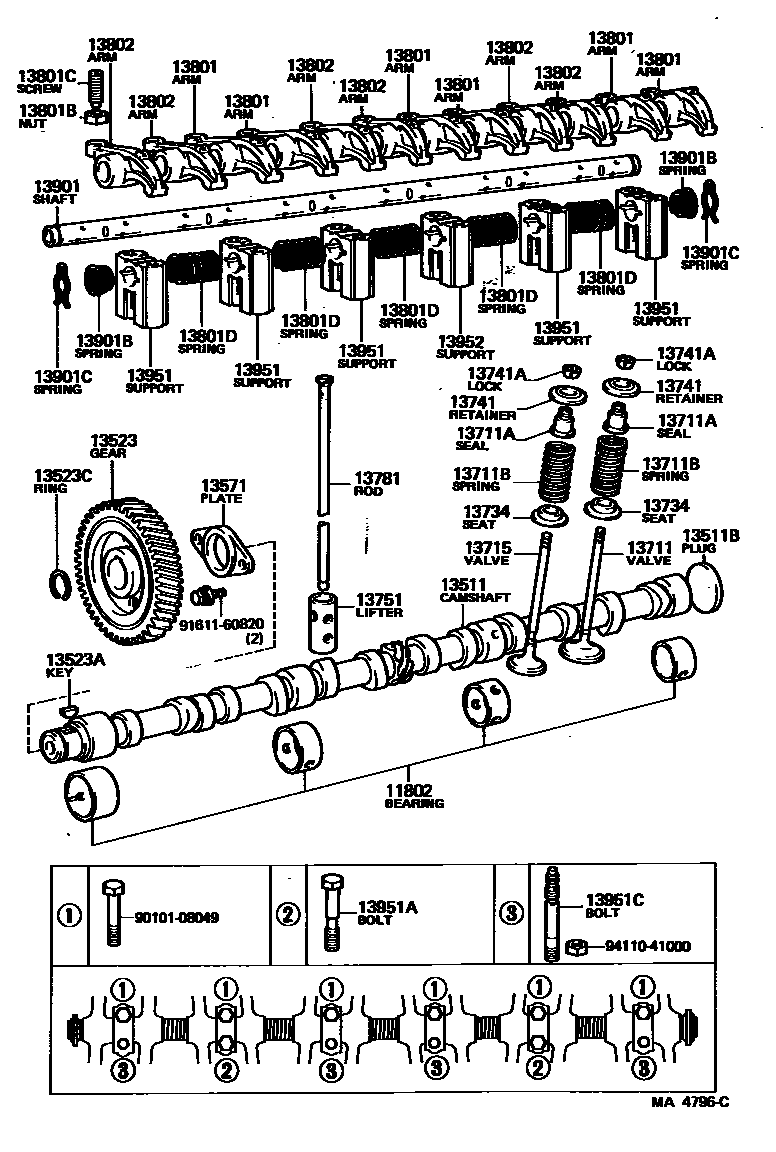

CAMSHAFT & VALVE

0001 1 0002 1

11802BEARING SET, CAMSHAFT

main11802-61010i3F#..FJ62198708-199001

main11802-68011i12HT,2H..HJ6#198708-199001

main11803-68011i12HT,2H..HJ6#198708-199001

main11804-61010i3F#..FJ62198708-199001

main11804-68011i12HT,2H..HJ6#198708-199001

main11805-61010i3F#..FJ62198708-199001

13511CAMSHAFT

main13511-60060i3F#..FJ62198708-199001

main13511-68010i2H..HJ60198708-199001

main13511-68020i12HT..HJ61198708-199001

13511BPLUG, EXPANSION(FOR CAMSHAFT)

main90331-48010i3F#..FJ62198708-199001

main90331-55001i12HT,2H..HJ6#198708-199001

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-61010i3F#..FJ62198708-199001

main13523-68010i12HT,2H..HJ6#198708-199001

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05010i3F#..FJ62198708-199001

main95161-10519i12HT,2H..HJ6#198708-199001

13523CRING, SNAP CAMSHAFT(FOR TIMING GEAR)

main90520-29051i3F#..FJ62198708-199001

13571PLATE, CAMSHAFT THRUST

main13571-61010i3F#..FJ62198708-199001

main13571-68010i12HT,2H..HJ6#198708-199001

13711VALVE, INTAKE

main13711-61010×6i3FE..FJ62198808-199001

main13711-61020×6i3F..FJ62198708-199001

main13711-68010×6i12HT,2H..HJ6#198708-199001

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02048×12i3F#..FJ62198708-199001

main90913-02050×12i12HT,2H..HJ6#198708-199001

13711BSPRING, COMPRESSION(FOR INNER)

main90501-26017×12i12HT,2H..HJ6#198708-199001

main90501-45342×12i3F#..FJ62198708-199001

13715VALVE, EXHAUST

main13715-61040×6i3F#..FJ62198708-199001

main13715-68010×6i2H..HJ60198708-199001

main13715-68020×6i12HT..HJ61198708-199001

13734SEAT, VALVE SPRING

main13734-60030×12i3F#..FJ62198708-199001

13741RETAINER, VALVE SPRING

main13741-60030×6i3F#..FJ62198708-199001

INTAKE

main13741-61010×6i3F#..FJ62198708-199001

EXHAUST

main13741-68010×12i12HT,2H..HJ6#198708-199001

13741ALOCK, VALVE SPRING RETAINER

main90913-03005×12i3F#..FJ62198708-199001

EXHAUST

main90913-03012×12i3F#..FJ62198708-199001

INTAKE

main90913-03018×24i12HT,2H..HJ6#198708-199001

13751LIFTER, VALVE

main13751-47011×12i12HT,2H..HJ6#198708-199001

sub13751-44030

main13751-61020×12i3F#..FJ62198708-199001

main13755-47011×12i12HT,2H..HJ6#198708-199001

O/S 0.05

sub13755-44030

main13755-61020×12i3F#..FJ62198708-199001

13781ROD, VALVE PUSH

main13781-61020×12i3F#..FJ62198708-199001

main13781-68010×12i12HT,2H..HJ6#198708-199001

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-61030×6i3F#..FJ62198708-199001

main13811-68011×12i2H..HJ60198708-199001

main13811-68020×12i12HT..HJ61198708-199001

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-08005×12i12HT,2H..HJ6#198708-199001

13801CSCREW, VALVE ADJUSTING

main90913-05020×12i12HT,2H..HJ6#198708-199001

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-14087×5i3F#..FJ62198708-199001

main90501-16163×6i12HT,2H..HJ6#198708-199001

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13812-61030×6i3F#..FJ62198708-199001

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-61020i3F#..FJ62198708-199001

main13901-68010i12HT,2H..HJ6#198708-199001

13901BSPRING, CONICAL(FOR VALVE ROCKER SHAFT)

main90502-16004×2i3F#..FJ62198708-199001

13901CSPRING, RETAINER(FOR VALVE ROCKER SHAFT)

main90524-15008×2i3F#..FJ62198708-199001

13951SUPPORT, VALVE ROCKER, NO.1

main13951-68010i12HT,2H..HJ6#198708-199001

main13952-61012×5i3F#..FJ62198708-199001

13951ABOLT(FOR ROCKER SUPPORT SET)

main90910-01006i3F#..FJ62198708-199001

*13-1.75PX138-27

main90910-01012i3F#..FJ62198708-199001

*10-1.25PX75-20

main91611-60860×14i12HT,2H..HJ6#198708-199001

13951CBOLT, STUD(FOR ROCKER SUPPORT)

main13994-61020×4i3F#..FJ62198708-199001

main92112-60828×4i12HT,2H..HJ6#198708-199001

13952SUPPORT, VALVE ROCKER, NO.2

main13952-61012i3F#..FJ62198708-199001

main13952-68010×2i12HT,2H..HJ6#198708-199001

9010108049

main90101-08049

9161160820

main91611-60820

9411041000

main94110-41000

31 parts on this diagram · 2 diagrams in section
