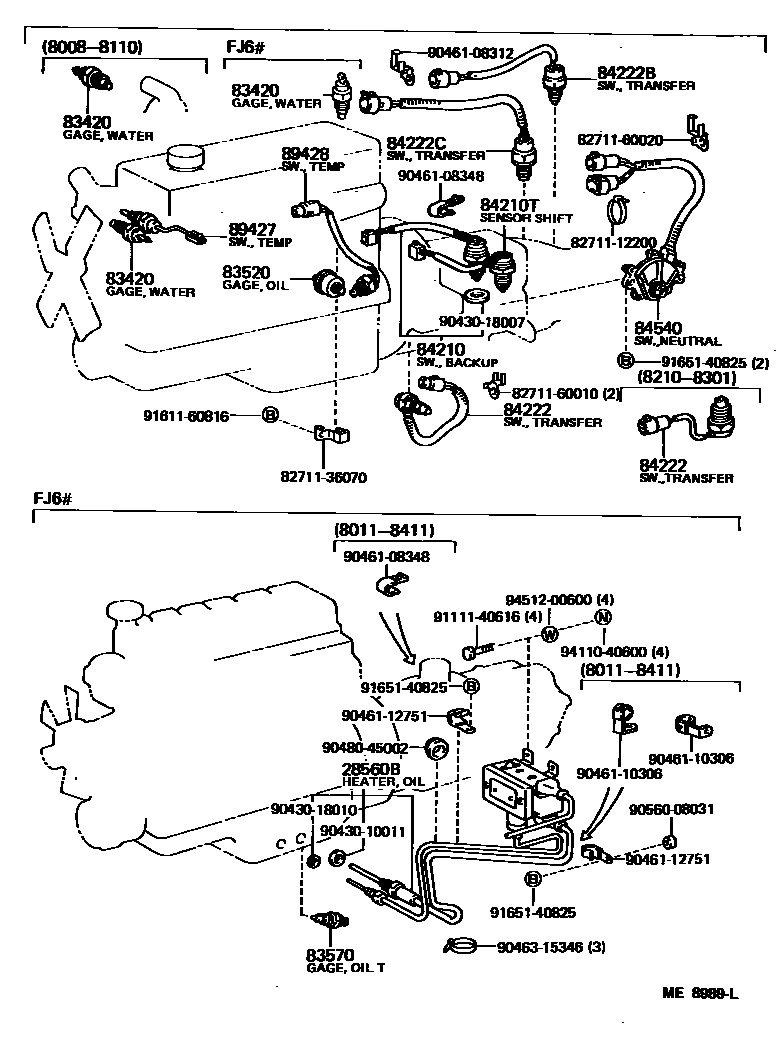

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1

28560BHEATER ASSY, OIL

main07043-80620i2F..FJ6#..IV4198011-198411

main28580-60010i3F..FJ62..IV4198411-198708

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iBJ6#,FJ6#,HJ6#198008-198708

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iFJ6#198008-198301

12V,DENSO

sub83520-14022

main83520-55011iFJ6#198008-198301

12V,YAZAKI

main83520-55020iBJ6#,HJ60198008-198301

24V

main83520-60010iFJ6#198301-198708

12V

sub83520-60011

main83520-60020iBJ61,HJ6#198301-198708

24V

83570GAGE ASSY, OIL TEMPERATURE SENDER

main83420-20011iFJ6#..IV4198011-198411

main83420-36010iFJ62..IV4198411-198708

84210SWITCH ASSY, BACK-UP LAMP

main84210-60010iBJ60,FJ60198008-198210

main84210-60021iBJ61,FJ6#,HJ6#..MTM198210-198708

84210TSENSOR ASSY, SHIFT POINT

main84220-60010×2iFJ62198411-198708

main84220-60020iFJ61198210-198411

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-60020iBJ61,FJ61,HJ60198210-198301

main84222-60021iBJ61,FJ6#,HJ6#198301-198708

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60030iBJ61,FJ62,HJ6#198411-198708

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-60040iBJ61,FJ62,HJ6#198411-198708

sub84222-60041

84540SWITCH ASSY, NEUTRAL START

main84540-60020iHJ6#..4FC198411-198708

89427SWITCH, TEMPERATURE DETECT

main89428-14040iFJ62198411-198608

main89428-60050iFJ62198608-198708

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-36010iHJ6#..4FC198411-198708

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271136070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36070

8271160010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60010

8271160020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60020

9043010011

main90430-10011

9043018007

main90430-18007

9043018010

main90430-18010

9046108312

main90461-08312

9046108348

main90461-08348

9046110306

main90461-10306

9046112751

main90461-12751

9046315346

main90463-15346

9048045002

main90480-45002

9056008031

main90560-08031

9111140616

main91111-40616

9161160816

main91611-60816

9165140825

main91651-40825

9411040600

main94110-40600

9451200600

main94512-00600

31 parts on this diagram · 10 diagrams in section
