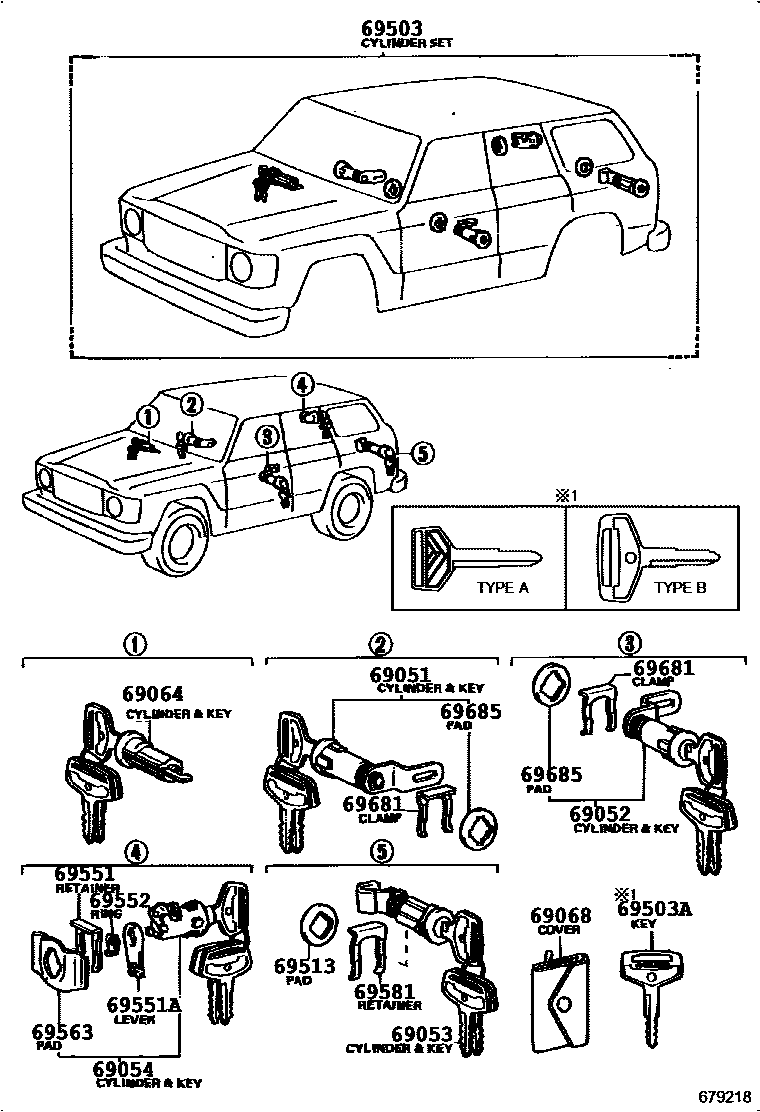

LOCK CYLINDER SET

0001 1 0002 1 0003 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-90A00iBJ61,FJ62,HJ6#198008-198708

sub69051-90A04

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-90A00iBJ6#,FJ6#,HJ60..CBU198008-198708

sub69052-90A04

69053CYLINDER & KEY SET, FUEL INLET LOCK

main69058-19065iBJ6#,FJ6#,HJ60..CBU198008-198510

sub69058-37070

main69058-90A03iBJ61,FJ62,HJ6#..CBU198510-198708

sub69058-90A02

main69058-95400iFJ6#..IV4198101-198708

sub69058-60071

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69051-19176iBJ60,FJ60..VKC..CBU198008-198210

sub69051-39036

main69055-90A00iBJ60..VLS198110-198210

main69055-90A03iBJ61,FJ6#..VKC..CBU198210-198510

sub69055-90A10

main69055-90A04iBJ61,HJ6#..VLS198210-198708

main69055-90A08iBJ61,FJ62,HJ60..VKC..CBU198510-198708

sub69055-90A09

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-14010iBJ6#,FJ6#,HJ6#198008-198608

sub69057-22020

main69057-90A00iBJ60198008-198110

main69057-90A06iFJ62,HJ6#198608-198708

sub69057-90A08

69068COVER SUB-ASSY, KEY

main69555-20010iBJ6#,FJ6#,HJ60..CBU198008-198708

69503CYLINDER SET, LOCK

main69005-90A03iBJ60198008-198110

sub69005-90A30

main69005-90A06iBJ6#,FJ6#..VKC..CBU198008-198608

main69005-90A10iBJ60..VLS198110-198210

sub69005-90A33

main69005-90A12iFJ6#..IV4198011-198411

main69005-90A15iBJ61,HJ6#..VLS198210-198608

main69005-90A16iFJ62..IV4198411-198608

main69005-90A22iFJ62,HJ60..VKC..CBU198608-198708

sub69005-90A56

main69005-90A23iHJ6#..VLS198608-198708

sub69005-90A57

main69005-90A42iFJ62..IV4198608-198708

sub69005-90A53

69503AKEY, BLANK

main90999-00066iBJ60,FJ60198008-198708

sub90999-00085

main90999-00072iBJ60198008-198210

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-14010iBJ6#,FJ6#,HJ6#..CBU198008-198708

69551RETAINER, BACK DOOR LOCK CYLINDER

main69551-13020iBJ6#,HJ6#..VLS198110-198708

main69681-20040iBJ6#,FJ6#,HJ60..VKC..CBU198008-198708

69551ALEVER, BACK DOOR KEY CYLINDER

main69551-90A00iBJ61,HJ6#..VLS198309-198708

69552RING, BACK DOOR KEY CYLINDER LEVER

main69552-95A00iBJ61,HJ6#..VLS198210-198708

69563PAD, BACK DOOR LOCK CYLINDER

main69513-14010iBJ60..VLS198110-198210

main69513-90A00iBJ6#,FJ6#,HJ60..VKC..CBU198008-198708

sub69513-38010

main69563-90A01iBJ61,HJ6#..VLS198210-198708

69581RETAINER, FUEL FILLER LID CYLINDER

main69581-14010iBJ6#,FJ6#,HJ6#..CBU198008-198708

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iBJ6#,FJ6#,HJ60..CBU198008-198708

69685PAD, LOCK CYLINDER

main69513-90A00iBJ6#,FJ6#,HJ60..CBU198008-198708

sub69513-38010

16 parts on this diagram · 3 diagrams in section
