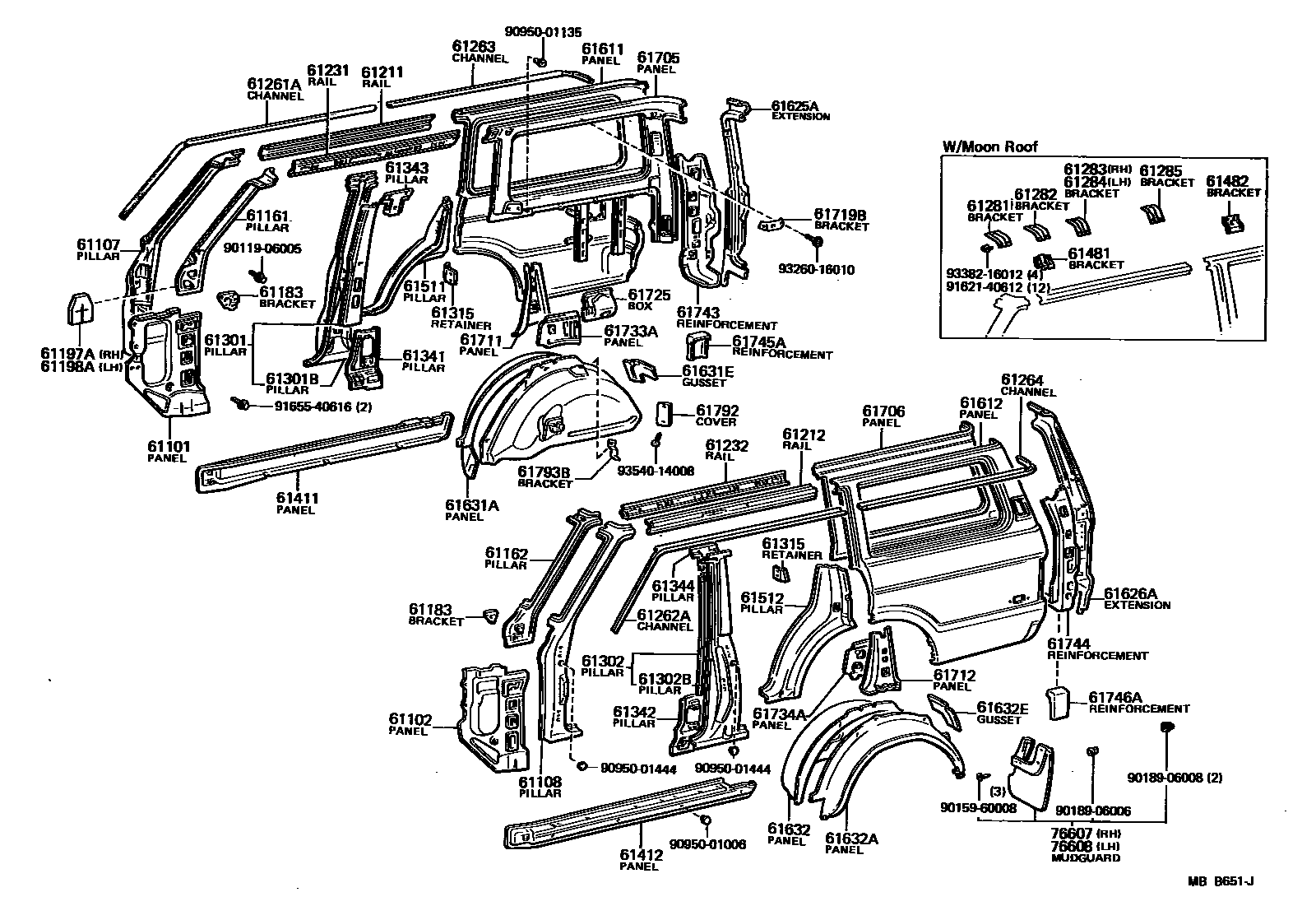

SIDE MEMBER

0001 1 0002 1 0003 1

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-90A00iBJ6#,FJ6#,HJ60198008-198411

sub61101-90A04

main61101-90A08iBJ61,FJ62,HJ6#198411-198708

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-90A04iBJ6#,FJ6#,HJ60198008-198411

sub61102-90A07

main61102-90A07iBJ61,FJ62,HJ6#198411-198708

61107PILLAR SUB-ASSY, FRONT BODY OUTER, RH

main61027-90A00iBJ6#,FJ6#..SRF..CBU198008-198309

main61027-90A02iFJ6#..IV4198011-198411

main61027-90A03iBJ61,HJ60..HRF198210-198309

main61027-90A04iBJ61,FJ61..SRF..CBU198309-198708

main61027-90A05iBJ61,HJ6#..HRF198309-198512

main61027-90A10iBJ61,HJ6#..HRF198512-198708

61108PILLAR SUB-ASSY, FRONT BODY OUTER, LH

main61028-90A00iBJ6#,FJ6#..SRF..CBU198008-198309

main61028-90A01iFJ6#..IV4198011-198411

main61028-90A03iBJ61,HJ60..HRF198210-198309

main61028-90A04iBJ61,FJ61..SRF..CBU198309-198708

main61028-90A05iBJ61,HJ6#..HRF198309-198512

main61028-90A07iBJ61,HJ6#..HRF198512-198708

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-90A00iBJ6#,FJ6#,HJ60198008-198510

sub61161-90A02

main61161-90A02iBJ61,FJ62,HJ6#198510-198708

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-90A00iBJ60,FJ60198008-198010

sub61162-90A02

main61162-90A01iBJ6#,FJ6#,HJ60198010-198510

main61162-90A02iBJ61,FJ62,HJ6#198510-198708

61183BRACKET, INSTRUMENT PANEL SIDE

main61183-90A01iBJ6#,FJ6#,HJ6#198008-198708

RH

main61184-90A00iBJ6#,FJ6#,HJ6#198008-198708

LH

61197ACOVER, FRONT PILLAR, RH

main61197-90A00iHJ6#..4FC198411-198708

61198ACOVER, FRONT PILLAR, LH

main61197-90A00iHJ6#..4FC198411-198708

61211RAIL, ROOF SIDE, OUTER RH

main61211-90A00iBJ60,FJ60..CBU198008-198210

sub61211-90H00

main61211-90H00iBJ61,FJ61,HJ60..CBU198210-198708

61212RAIL, ROOF SIDE, OUTER LH

main61212-90A00iBJ60,FJ60..CBU198008-198210

sub61212-90H00

main61212-90H00iBJ61,FJ61,HJ60..CBU198210-198708

61231RAIL, ROOF SIDE, INNER RH

main61231-90A00iBJ60,FJ60..CBU198008-198210

sub61231-90A02

sub61211-90A01

main61231-90A02iBJ61,FJ61,HJ60..CBU198210-198708

sub61231-90A03

61232RAIL, ROOF SIDE, INNER LH

main61232-90A00iBJ60,FJ60..CBU198008-198210

sub61232-90A01

sub61212-90A01

main61232-90A01iBJ61,FJ61,HJ60..CBU198210-198708

sub61232-90A02

61261CHANNEL, ROOF DRIP, RH

main61261-90A00iFJ6#..IV4198011-198411

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-90A00iBJ6#,FJ6#,HJ60..CBU198008-198708

61262CHANNEL, ROOF DRIP, LH

main61262-90A01iFJ6#..IV4198011-198411

61262ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-90A00iBJ6#,FJ6#,HJ60..CBU198008-198708

61263CHANNEL, ROOF DRIP, REAR RH

main61267-90A00iBJ61,FJ62,HJ6#198008-198708

61264CHANNEL, ROOF DRIP, REAR LH

main61268-90A00iBJ61,FJ62,HJ6#198008-198708

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-90A00iBJ61,HJ6#..HRF198210-198708

61282BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.2

main61282-90A00iBJ61,HJ6#..HRF198210-198708

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-90A00iBJ61,HJ6#..HRF198210-198708

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61283-90A00iBJ61,HJ6#..HRF198210-198708

61285BRACKET, SLIDING ROOF HOUSING SIDE

main61285-90A00iBJ61,HJ6#..HRF198210-198708

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61330-90A00iBJ6#,FJ6#,HJ60..CBU198008-198309

sub61330-90A02

main61330-90A03iBJ61,FJ61,HJ60..CBU198309-198708

sub61330-90A04

main61330-90A04iHJ6#..VLS198510-198708

61301BPILLAR, CENTER BODY, OUTER RH

main61301-90A02iBJ6#,FJ6#,HJ60..CBU198008-198305

sub61301-90A03

main61301-90A03iBJ61,FJ61,HJ60..CBU198305-198309

main61301-90A04iBJ61,FJ62,HJ60198309-198708

sub61301-90A05

main61301-90A05iHJ61198510-198708

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61340-90A00iBJ6#,FJ6#,HJ60..CBU198008-198309

sub61340-90A03

main61340-90A04iBJ61,FJ61,HJ60..CBU198309-198708

sub61340-90A05

main61340-90A05iHJ61198510-198708

61302BPILLAR, CENTER BODY, OUTER LH

main61302-90A03iBJ6#,FJ6#,HJ60..CBU198008-198305

sub61302-90A05

main61302-90A05iBJ61,FJ61,HJ60..CBU198305-198309

main61302-90A06iFJ62,HJ60..VKC198309-198708

sub61302-90A07

main61302-90A07iHJ61198510-198708

61315RETAINER, DOOR LOCK STRIKER PLATE

main61503-90A00iBJ6#,FJ6#,HJ60..CBU198008-198708

RH

main61504-90A00iBJ61,FJ62,HJ6#198008-198708

LH

61341PILLAR, CENTER BODY, INNER LOWER RH

main61345-90A00iBJ6#,FJ6#,HJ60..CBU198008-198708

61342PILLAR, CENTER BODY, INNER LOWER LH

main61346-90A00iBJ6#,FJ6#,HJ60..CBU198008-198708

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-90A00iBJ6#,FJ6#,HJ60..CBU198008-198708

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-90A00iBJ6#,FJ6#,HJ60..CBU198008-198708

61411PANEL, ROCKER, OUTER RH

main61401-90A02iBJ6#,FJ6#,HJ60..CBU198008-198309

main61401-90A04iFJ6#..IV4198011-198411

main61401-90A06iBJ61,FJ62,HJ6#198309-198708

61412PANEL, ROCKER, OUTER LH

main61402-90A02iBJ6#,FJ6#,HJ60..CBU198008-198309

main61402-90A04iFJ6#..IV4198011-198411

main61402-90A06iBJ61,FJ61,HJ60..CBU198309-198708

61481BRACKET, ROOF SIDE RAIL REINFORCE, NO.1

main61481-90A01iBJ61,HJ6#..HRF198210-198708

W/MOON ROOF

61482BRACKET, ROOF SIDE RAIL REINFORCE, NO.2

main61482-90A00iBJ61,HJ6#..HRF198510-198708

61511PILLAR, QUARTER LOCK, RH

main61511-90A01iBJ61,FJ62,HJ6#198008-198708

61512PILLAR, QUARTER LOCK, LH

main61512-90A01iBJ6#,FJ6#,HJ60..CBU198008-198708

61611PANEL, QUARTER, RH

main61601-90G11iFJ62..IV4198411-198708

main61611-90A00iBJ6#,FJ6#,HJ60..CBU198008-198411

sub61611-90A15

main61611-90A15iBJ61,FJ62,HJ6#..CBU198411-198708

61612PANEL, QUARTER, LH

main61602-90A58iFJ62..IV4198411-198708

main61612-90A00iBJ6#,FJ6#,HJ60..CBU198008-198411

sub61612-90A12

main61612-90A12iBJ61,FJ62,HJ60..CBU198411-198708

61625AEXTENSION SUB-ASSY, QUARTER PANEL, RH

main61031-90A00iBJ60..VLS198110-198210

main61031-90A01iBJ6#,FJ6#..VKC..CBU198008-198411

main61031-90A02iBJ61,HJ6#..VLS198210-198708

main61031-90A03iBJ61,FJ62,HJ60..VKC198411-198708

61626AEXTENSION SUB-ASSY, QUARTER PANEL, LH

main61032-90A00iBJ6#,HJ6#..VLS198110-198708

main61032-90A01iBJ6#,FJ6#..VKC..CBU198008-198411

main61032-90A02iBJ61,FJ62,HJ60..VKC198411-198708

61631PANEL, QUARTER WHEEL HOUSE, RH

main61607-90A00iBJ6#,FJ6#,HJ60..CBU198008-198411

sub61607-90A04

main61607-90A04iBJ61,FJ62,HJ6#198411-198708

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-90A02iBJ6#,FJ6#..SRF..CBU198008-198411

sub61631-90A03

main61631-90A03iBJ61,FJ62,HJ60..SRF..CBU198411-198708

sub61631-90A05

main61631-90A05iBJ61,HJ6#..HRF198210-198708

61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-90A00iBJ6#,FJ6#,HJ60..CBU198008-198708

61632PANEL, QUARTER WHEEL HOUSE, LH

main61608-90A00iBJ6#,FJ6#,HJ60..CBU198008-198708

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-90A02iBJ6#,FJ6#..SRF..CBU198008-198411

sub61632-90A03

main61632-90A03iBJ61,FJ62,HJ60..SRF..CBU198411-198708

sub61632-90A05

main61632-90A05iBJ61,HJ6#..HRF198210-198708

61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-90A00iBJ6#,FJ6#,HJ60..CBU198008-198708

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-90A01iBJ60,FJ60198008-198210

main61705-90A04iBJ61,FJ6#,HJ60198210-198701

main61705-90A13iHJ61198510-198701

main61705-90A17iFJ62,HJ60..CBU198701-198708

main61705-90A25iHJ61198701-198708

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-90A01iBJ60,FJ60198008-198210

main61706-90A06iBJ61,FJ6#..VKC..CBU198210-198510

main61706-90A09iBJ61,HJ60..VLS198210-198411

sub61706-90A25

main61706-90A25iBJ61,HJ60..VLS198411-198510

main61706-90A34iBJ61,FJ62,HJ60..VKC198510-198701

sub61706-90A50

main61706-90A37iBJ61,HJ60..VLS198510-198701

sub61706-90A53

main61706-90A44iHJ61198510-198708

sub61706-90A60

main61706-90A50iFJ62,HJ60..VKC198701-198708

sub61706-90A71

main61706-90A53iHJ60..VLS198701-198708

sub61706-90A71

main61706-90A60iHJ61198701-198708

sub61706-90A72

61711PANEL, ROOF SIDE, OUTER RH

main61711-90A00iBJ60,FJ60..CBU198008-198210

main61711-90A01iBJ61,FJ61,HJ60..CBU198210-198708

61712PANEL, ROOF SIDE, OUTER LH

main61712-90A00iBJ60,FJ60..CBU198008-198210

main61712-90A01iBJ61,FJ61,HJ60..CBU198210-198708

61719BBRACKET, ROOF SIDE, INNER

main61719-90A00iHJ61198510-198708

61725BOX, FUEL INLET

main61709-90A00iBJ6#,FJ6#,HJ60198008-198411

main61709-90A01iBJ61,FJ62,HJ60..VKC..CBU198411-198708

main61709-90A02iBJ61,HJ6#..VLS198411-198708

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-90A00iBJ6#,FJ6#,HJ60..CBU198008-198411

main61733-90A02iBJ61,FJ62,HJ6#198411-198708

sub61733-90A05

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-90A00iBJ6#,FJ6#,HJ60..CBU198008-198510

sub61734-90A03

sub90480-45002

main61734-90A03iBJ61,FJ62,HJ6#198510-198708

sub61734-90A05

61743REINFORCEMENT, BACK DOOR OPENING, INNER RH

main61743-90A00iBJ60..VLS198110-198210

sub61743-90A02

main61743-90A01iBJ6#,FJ6#,HJ60..VKC198008-198708

main61743-90A02iBJ61,HJ6#..VLS198210-198708

sub61743-90A01

61744REINFORCEMENT, BACK DOOR OPENING, INNER LH

main61034-90A00iBJ61,HJ6#..VLS198510-198708

main61034-90A01iBJ61,FJ62,HJ60..VKC198510-198708

main61744-90A00iBJ60..VLS198110-198210

sub61744-90A01

main61744-90A01iBJ61,FJ6#,HJ60198008-198510

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-90A01iBJ6#,FJ6#,HJ6#198008-198708

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-90A01iBJ6#,FJ6#,HJ6#198008-198708

61792COVER, ROOF SIDE INNER SERVICE HOLE

main61791-90A00iBJ6#,FJ6#,HJ6#198008-198708

sub61791-90B01

61793BBRACKET, COOLER CONDENSER, NO.1

main61793-90A00iHJ61198510-198708

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-69015iBJ6#,FJ6#,HJ6#198008-198708

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-69015iBJ6#,FJ6#,HJ6#198008-198708

9011906005

main90119-06005

9015960008

main90159-60008

9018906006

main90189-06006

9018906008

main90189-06008

9095001006

main90950-01006

9095001135

main90950-01135

9095001444

main90950-01444

9162140612

main91621-40612

9165540616

main91655-40616

9326016010

main93260-16010

9338216012

main93382-16012

9354014008

main93540-14008

77 parts on this diagram · 3 diagrams in section
