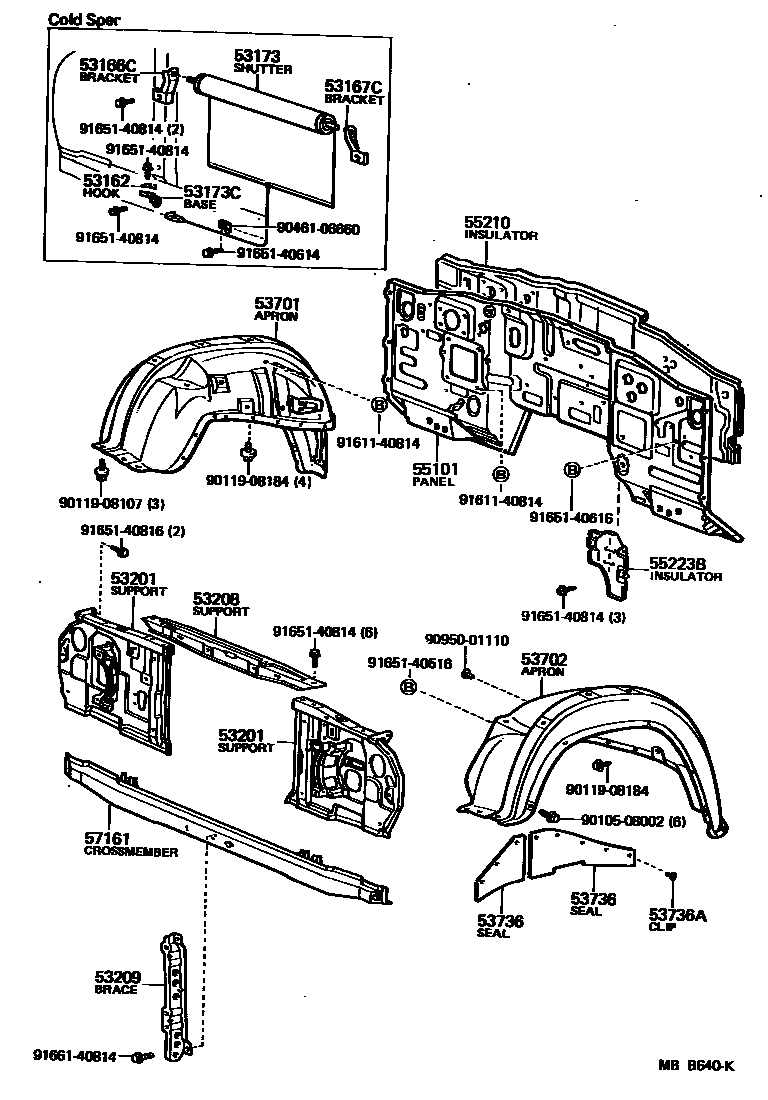

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

53162HOOK, RADIATOR SHUTTER

main53162-90500iBJ6#,HJ6#198008-198708

53166CBRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-90A00iBJ6#,HJ6#198008-198708

53167CBRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-90A00iBJ6#,HJ6#198008-198708

53173SHUTTER SUB-ASSY, RADIATOR WIND

main53180-90A00iBJ6#,HJ6#198008-198708

53173CBASE, RADIATOR SHUTTER CONTROL WIRE CLAMP

main53191-90A00iBJ6#,HJ6#198008-198708

53201SUPPORT SUB-ASSY, RADIATOR

main53202-90A01iBJ6#,FJ6#,HJ6#198008-198708

RH

main53203-90A01iBJ6#,FJ6#,HJ6#198008-198708

LH

53208SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER

main53216-90A00iBJ6#,FJ6#,HJ60198008-198411

main53216-90A01iBJ61,FJ62,HJ6#198411-198708

sub53216-90A03

53209BRACE SUB-ASSY, HOOD LOCK

main53209-90A01iBJ61,FJ62,HJ6#198411-198708

main53217-90A01iBJ6#,FJ6#,HJ60198008-198411

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-90A25iBJ60198008-198110

main53701-90A28iHJ60198303-198411

W/WINCH

main53701-90A29iHJ60198210-198303

W/WINCH

sub53701-90G29

main53701-90A31iBJ60,FJ60..CBU198008-198210

W/POWER STEERING

main53701-90A39iFJ60198008-198210

W/WINCH

main53701-90A47iFJ61..CBU198210-198411

W/WINCH

sub53701-90G40

main53701-90A51iBJ61198210-198608

sub53701-90G42

main53701-90G06iHJ61198510-198708

sub53701-90G81

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-90A15iBJ60198008-198110

sub53702-90A14

main53702-90A17iFJ62..CBU198504-198708

main53702-90A19iFJ6#..CBU198210-198504

main53702-90A22iFJ60..CBU198008-198110

main53702-90A23iFJ6#..IV4198011-198708

main53702-90A24iFJ60..CBU198110-198210

sub53702-90A14

main53702-90A25iBJ60198008-198110

W/WINCH

main53702-90A26iBJ6#198110-198504

main53702-90A27iBJ6#198110-198303

W/WINCH

main53702-90A28iBJ61198504-198608

53736SEAL, FRONT FENDER APRON, RH

main53738-90A00×2iBJ6#,FJ6#,HJ6#198008-198708

FR

main53739-90A00×2iBJ6#,FJ6#,HJ6#198008-198708

RR

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-08011×16iBJ6#,FJ6#,HJ6#198008-198708

55101PANEL SUB-ASSY, DASH

main55016-90A27iHJ60..4FC198510-198708

main55016-90A37iHJ61..4FC198608-198708

main55101-90658iBJ61198510-198608

main55101-90663iFJ62..IV4198510-198708

main55101-90674iFJ62,HJ60..5F..CBU198510-198708

main55101-90A02iFJ60..CBU198008-198210

W/O HEATER,COOLER

main55101-90A03iFJ60..IV4198011-198210

W/HEATER

main55101-90A04iFJ60..IV4198011-198210

W/O HEATER

main55101-90A08iBJ60198008-198210

main55101-90A20iFJ60..CBU198008-198210

W/HEATER,COOLER

main55101-90A52iFJ61..IV4198210-198411

W/O HEATER

main55101-90A55iBJ61198210-198411

main55101-90A65iFJ61..IV4198210-198411

W/HEATER

main55101-90A95iFJ61..CBU198210-198411

main55101-90A96iHJ60198210-198411

main55101-90G30iFJ62..IV4198411-198510

main55101-90G69iHJ60..4FC198411-198510

main55101-90G71iBJ61198411-198510

main55101-90G81iFJ62,HJ60..5F..CBU198411-198510

main55101-90G97iHJ61..5F198510-198708

55210INSULATOR ASSY, DASH PANEL

main55210-90A00iFJ60..IV4198011-198210

W/O HEATER

main55210-90A01iFJ60..IV4198011-198210

W/HEATER

main55210-90A06iBJ61,FJ61,HJ60198210-198411

main55210-90A08iBJ61,FJ62,HJ60198411-198708

sub55210-90A13

main55210-90A10iHJ61198510-198708

55223BINSULATOR, DASH PANEL HEAT, NO.1

main55223-90A02iFJ6#198008-198708

main55223-90A03iBJ60198008-198210

main55223-90A04iBJ61198210-198608

57161CROSSMEMBER, FRONT

main57104-90A00iBJ6#,FJ6#,HJ60198008-198411

main57104-90A01iBJ61,FJ62,HJ6#198411-198708

sub57104-90A03

9010508002

main90105-08002

9011908107

main90119-08107

9011908184

main90119-08184

9046106660

main90461-06660

9095001110

main90950-01110

9161140814

main91611-40814

9165140516

main91651-40516

9165140614

main91651-40614

9165140616

main91651-40616

9165140814

main91651-40814

9165140816

main91651-40816

9166140814

main91661-40814

28 parts on this diagram · 3 diagrams in section
