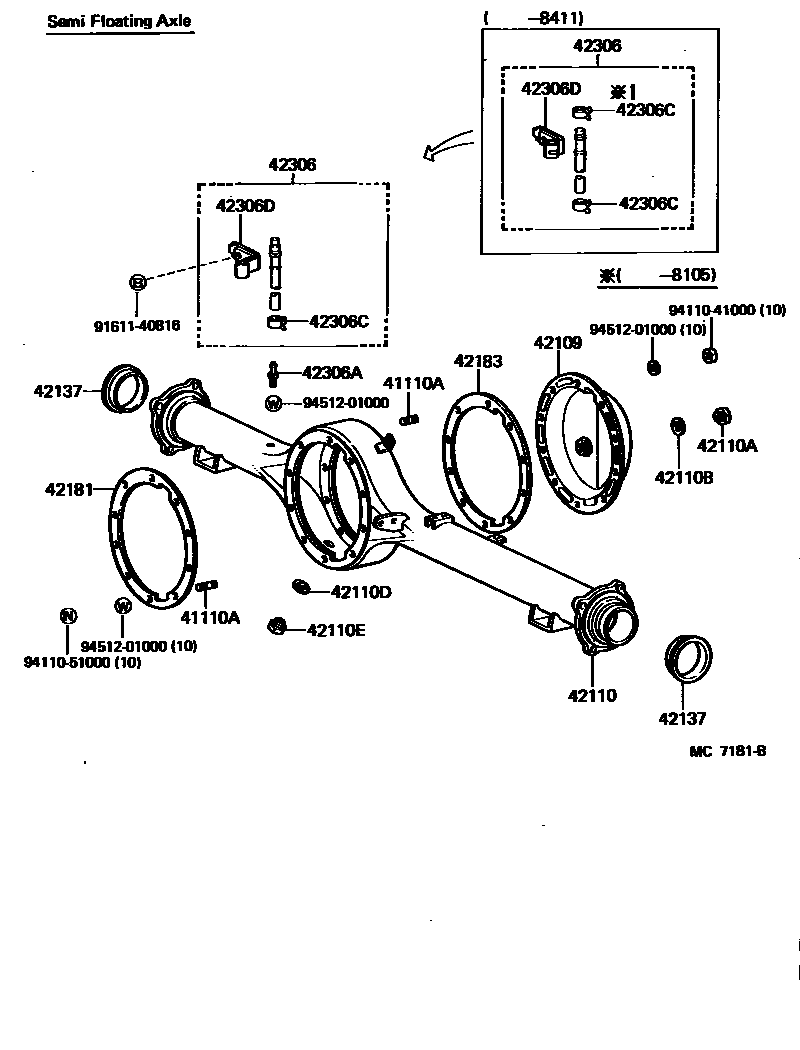

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1��������������

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-60016iFJ6#..IV4198011-198411

main41110-60016iBJ6#198008-198408

main41110-60017iBJ61198408-198411

sub41110-60018

main41110-60026iFJ6#,HJ60..CBU198008-198408

*FGR=37:10,*AXC=K052

main41110-60027iFJ61,HJ60..CBU198408-198411

*FGR=37:10,*AXC=K052

sub41110-60028

main41110-60061iFJ6#,HJ60..CBU198201-198408

*FGR=37:10,*AXC=K055,W/LSD

main41110-60062iFJ61,HJ60..CBU198408-198411

*FGR=37:10,*AXC=K055,W/LSD

sub41110-60120

main41110-60071iBJ6#198201-198408

main41110-60071iFJ61..IV4198210-198411

main41110-60072iBJ61198408-198411

sub41110-60130

main41110-60100iFJ62,HJ6#..5F..CBU198411-198708

sub41110-60450

main41110-60110iBJ61;HJ60..4FC198411-198708

sub41110-60111

sub90949-01692

main41110-60120iFJ62,HJ6#..5F..CBU198411-198708

sub41110-60470

main41110-60120iHJ61..4FC198608-198708

sub41110-60470

main41110-60130iBJ61;HJ60..4FC198411-198708

sub41110-60430

main41110-60160iFJ62..IV4198411-198708

main41110-60220iHJ61198510-198708

sub41110-60221

sub90116-10075

main41110-60230iHJ60..4FC198608-198708

sub41110-60231

sub90116-10075

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-10074iBJ61,FJ6#,HJ6#198212-198708

main90116-10075iBJ61,FJ6#,HJ6#198212-198708

main90116-10076iBJ61,FJ61,HJ6#..CBU198212-198708

main90116-10103iBJ6#,FJ6#,HJ60198008-198212

main90116-10104iBJ6#,FJ6#,HJ60198008-198212

sub90116-10075

main90116-10107iBJ6#,FJ6#,HJ60..CBU198008-198212

sub90116-10076

main90116-10124iHJ61198510-198708

42109COVER SUB-ASSY, REAR AXLE HOUSING

main42109-60050iBJ6#,FJ6#,HJ60198008-198708

42110HOUSING ASSY, REAR AXLE

main42110-60170iBJ60,FJ60..VKC..CBU198008-198210

SEMI FLOATING

main42110-60171iBJ61,FJ61..VKC..CBU198210-198608

SEMI FLOATING

main42110-60172iHJ60..VKC198608-198708

SEMI FLOATING

main42110-60190iBJ60..VLS198110-198210

SEMI FLOATING

main42110-60191iBJ61,HJ60..VLS198210-198411

SEMI FLOATING

main42110-60192iBJ61,HJ6#..VLS198411-198608

SEMI FLOATING

main42110-60193iHJ6#..VLS198608-198708

SEMI FLOATING

main42110-60210iBJ60,FJ60..VKC..CBU198201-198210

FULL FLOATING

main42110-60210iFJ60..IV4198011-198210

main42110-60211iBJ61,FJ6#..VKC..CBU198210-198608

FULL FLOATING

main42110-60211iFJ61..IV4198210-198411

main42110-60212iFJ62,HJ60..VKC..CBU198608-198708

FULL FLOATING

main42110-60230iBJ60..VLS198201-198210

FULL FLOATING

main42110-60231iBJ61,HJ60..VLS198210-198411

FULL FLOATING

main42110-60232iBJ61,HJ6#..VLS198411-198608

FULL FLOATING

main42110-60233iHJ6#..VLS198608-198708

FULL FLOATING

main42110-60280iFJ62..IV4198411-198608

main42110-60281iFJ62..IV4198608-198708

main42110-60291iFJ62,HJ60..VKC..CBU198608-198708

W/DIFFERENTIAL LOCK

main42110-60300iHJ61198510-198608

W/DIFFERENTIAL LOCK

main42110-60301iHJ6#..VLS198608-198708

W/DIFFERENTIAL LOCK

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iBJ61,FJ62,HJ6#198411-198708

main90341-18049iBJ6#,FJ6#,HJ60198008-198411

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iBJ6#,FJ6#,HJ6#198008-198708

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iBJ6#,FJ6#,HJ6#198008-198708

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iBJ6#,FJ6#,HJ6#198008-198708

42137COLLAR, REAR AXLE HOUSING SIDE

main42137-55010iBJ6#,FJ6#,HJ60198008-198708

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-36010iBJ6#,FJ6#,HJ6#198008-198708

sub42181-60060

main42181-60030iHJ61198510-198708

W/DIFFERENTIAL LOCK

sub42181-60060

42183GASKET, REAR AXLE HOUSING COVER

main42183-35010iBJ6#,FJ6#,HJ60198008-198708

42306HOSE SUB-ASSY, REAR AXLE BREATHER

main42306-60050iBJ6#,FJ6#,HJ60198008-198411

main42306-60051iBJ61,FJ62,HJ6#198411-198708

42306AUNION (FOR REAR AXLE BREATHER HOUSE)

main90404-10018iBJ6#,FJ6#,HJ6#198008-198708

42306CCLIP, HOSE (FOR REAR AXLE BREATHER HOSE)

main96132-30600iBJ6#,FJ6#,HJ6#198008-198708

sub96132-51100

42306DCLAMP (FOR REAR AXLE BRATHER HOSE)

main90461-10558iBJ6#,FJ6#,HJ6#198008-198708

9161140816

main91611-40816

9411041000

main94110-41000

9411051000

main94110-51000

9451201000

main94512-01000

19 parts on this diagram · 9 diagrams in section
