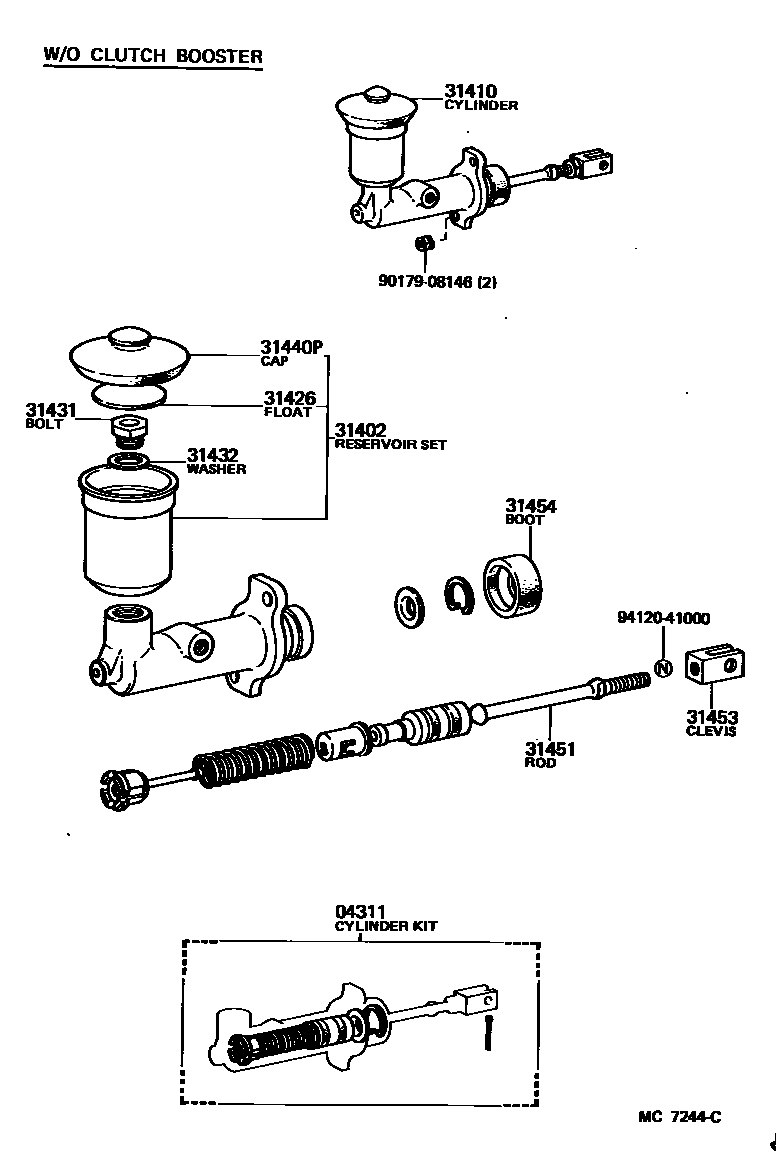

CLUTCH MASTER CYLINDER

0001 1 0003 1 0004 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-60030iBJ60,FJ60..CBU198008-198210

main04311-60040iBJ61,FJ6#,HJ6#..MTM..CBU198210-198708

sub04311-60041

main04311-60050iFJ62..IV4198411-198708

sub04311-60051

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20010iBJ61,FJ6#,HJ6#..MTM..CBU198210-198708

main31402-30030iFJ62..IV4198411-198708

main47202-12010iFJ6#..IV4198011-198411

31410CYLINDER ASSY, CLUTCH MASTER

main31401-60010iBJ61,FJ61,HJ60..CBU198210-198411

main31401-60020iBJ61,FJ62,HJ6#..MTM..CBU198411-198708

sub31401-60021

main31410-60050iFJ6#..IV4198011-198411

main31410-60280iFJ62..IV4198411-198708

sub31410-60281

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iBJ6#,FJ6#,HJ6#..MTM198008-198708

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iBJ61,FJ6#,HJ6#..MTM..CBU198210-198708

main47231-30010iFJ6#..IV4198011-198708

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iBJ60,FJ60..CBU198008-198210

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iBJ60,FJ60..CBU198008-198210

main47230-20040iBJ61,FJ6#,HJ6#..MTM..CBU198210-198708

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-30030iBJ60,FJ60..CBU198008-198210

main31451-60050iFJ62..IV4198411-198708

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iBJ61,FJ62,HJ6#..MTM198411-198611

main31453-30011iBJ6#,FJ6#,HJ60198008-198411

main31453-35010iFJ62,HJ6#..5F198611-198708

31454BOOT, CLUTCH MASTER CYLINDER

main31454-30030iFJ6#..IV4198011-198708

main47265-20050iBJ61,FJ6#,HJ6#..MTM..CBU198210-198708

9017908146

main90179-08146

9412041000

main94120-41000

12 parts on this diagram · 3 diagrams in section
