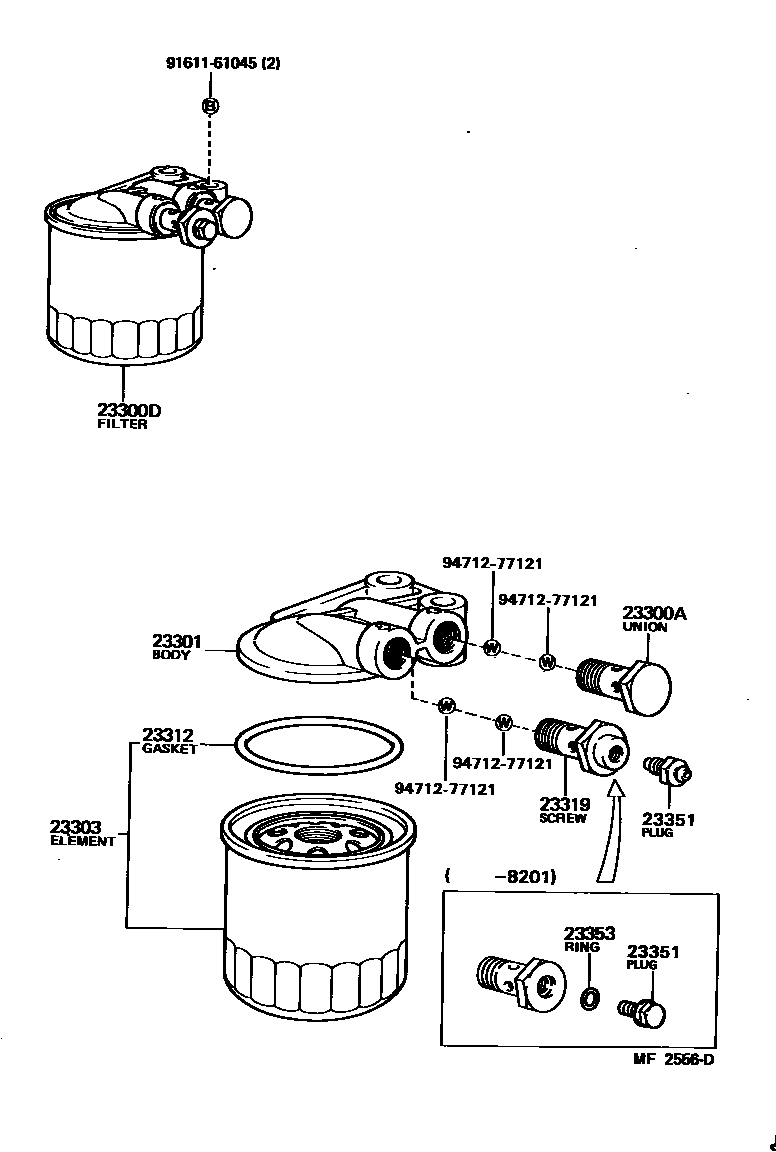

FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1CARTRIDGE

23300FILTER ASSY, FUEL

main23300-38010i2F,3F..FJ6#198008-198704

main23300-61070i3F..FJ62198704-198708

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90099-18010i12HT,2H..HJ6#198603-198708

main90401-14060i12HT,2H..HJ6#198008-198603

main90405-08016i3B..BJ61198411-198605

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-54120i3B..BJ61198411-198608

W/O FUEL HEATER

sub23300-54121

main23300-56040i3B..BJ60198008-198210

main23300-56060i3B..BJ61198210-198411

main23300-68030i12HT,2H..HJ6#198210-198708

CARTRIDGE

23301BODY SUB-ASSY, FUEL FILTER

main23310-56010i3B..BJ61198210-198411

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-54071i2H..HJ60198210-198411

CARTRIDGE

sub23303-54072

main23303-56031i3B..BJ60198008-198210

main23303-64010i3B..BJ61198411-198608

CARTRIDGE

23312GASKET, FILTER BOWL

main23312-56021i3B..BJ60198008-198210

23319SCREW, FUEL PIPE FOLLOW

main23319-46010i3B..BJ60198008-198201

main23319-48010i2H..HJ60198201-198411

main90099-18011×2i3B..BJ61198411-198605

main90401-14060×2i3B..BJ61198210-198411

23351PLUG, AIR VENT

main23351-46010i3B..BJ60198008-198201

main23351-54010×2i12HT,2H..HJ6#198411-198708

W/SEDIMENTER

main47547-12030i3B..BJ60198201-198210

23353RING, O(FOR AIR VENT PLUG)

main23353-46010i3B..BJ60198008-198201

main23353-54010×2i3B..BJ6#198110-198411

W/SEDIMENTER

9161161045

main91611-61045

9471277121

main94712-77121

11 parts on this diagram · 7 diagrams in section
