CYLINDER HEAD

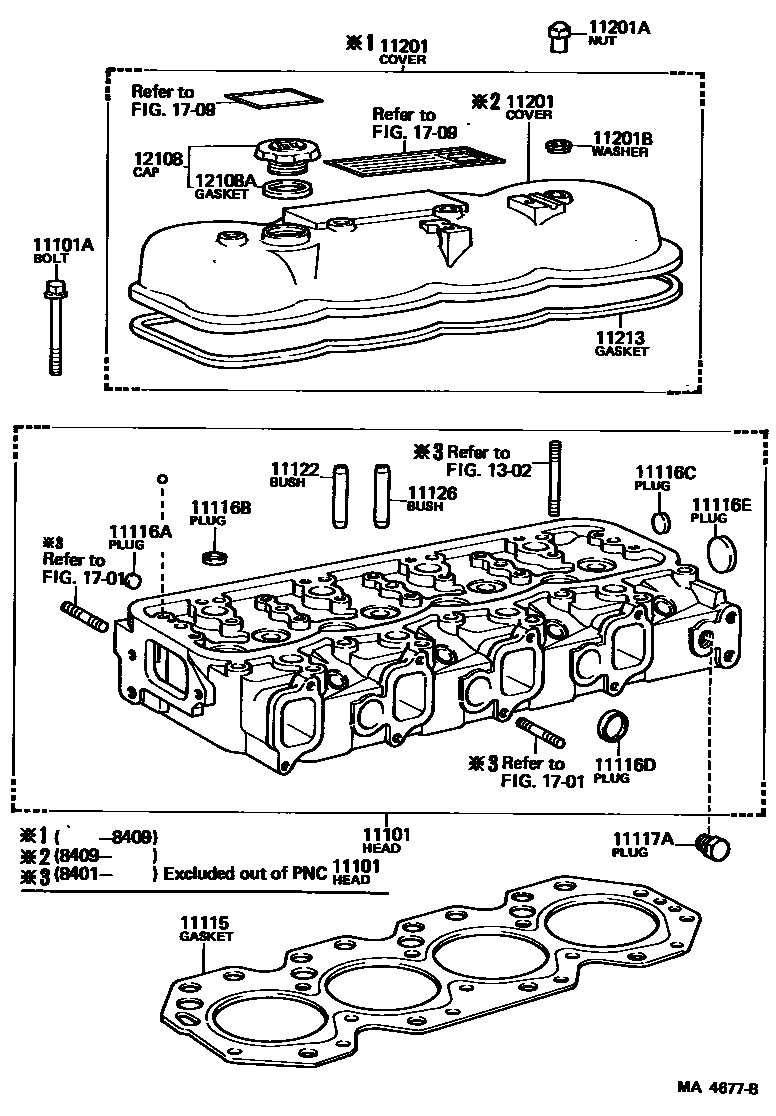

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-58012i198401-198406
main11101-58013i198406-198608
main11101-59095i198008-198110
sub11101-59096
main11101-59096i198110-198401
sub11101-58012
sub90116-08123
sub90116-10048
sub90345-54005
sub92132-60822
sub94184-61000
main11101-61021i198008-198411
main11101-61060i198411-198708
main11101-68011i198210-198708
sub11101-68012
sub87209-90B35
sub87245-90A19
sub87248-90A31
sub87248-90K18
sub90460-24039
main11101-68020i198510-198708
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02046i198008-198608
*12-1.25PX119-25
main90910-02050i198008-198708
*13-1.75PX120.5-27
main90910-02070i198210-198708
*12-1.25PX119-25
11115GASKET, CYLINDER HEAD
main11115-58010i198008-198308
sub11115-58011
main11115-58011i198308-198310
sub11115-58012
main11115-58012i198310-198409
sub11115-58040
main11115-58040i198409-198608
sub11115-58110
main11115-61010i198008-198411
main11115-61020i198411-198708
sub11115-61030
main11115-68010i198210-198411
sub11115-68011
main11115-68020i198411-198708
sub11115-68040
main11115-68030i198510-198708
sub11115-68050
11116APLUG, TIGHT, NO.1
main96411-11200i198008-198509
OD=12
sub96411-41200
main96411-41200i198509-198608
OD=12
main96411-42000i198210-198708
OD=20
main96411-45000i198008-198708
OD=50
11116BPLUG, TIGHT, NO.2
main96411-12500i198008-198509
OD=25
sub96411-42500
main96411-42500i198008-198708
OD=25
11116CPLUG, TIGHT, NO.3
main90331-21001i198008-198608
OD=21
main96411-43000i198210-198708
OD=30
11116DPLUG, TIGHT, NO.4
main96411-12800i198008-198509
OD=28
sub96411-42800
main96411-42800i198509-198608
OD=28
main96411-45000i198210-198708
OD=50
11116EPLUG, TIGHT, NO.5
main90331-40024i198008-198608
OD=40
sub96411-44000
11117APLUG, W/HEAD TAPER SCREW, NO.1
main90345-54004i198008-198306
main90345-54005i198008-198708
11122BUSH, INTAKE VALVE GUIDE
main11122-56020i198008-198308
sub11122-56021
main11122-56021i198308-198608
sub11122-56030
main11122-61011i198008-198708
main11122-68010i198210-198708
main11123-61011i198008-198708
11126BUSH, EXHAUST VALVE GUIDE
main11122-56020i198008-198308
sub11122-56021
main11122-56021i198308-198608
sub11122-56030
main11122-68010i198210-198708
main11126-61011i198008-198708
main11127-61011i198008-198708
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-61040i198411-198608
sub11201-61041
main11201-61041i198608-198708
sub11201-61050
main11201-68011i198411-198708
main11201-68020i198510-198708
main11201-69045i198008-198411
main11201-69055i198210-198411
sub11201-68011
sub11213-68010
sub12180-70010
sub90210-13001
main11211-56031i198409-198608
main11211-59045i198008-198409
sub11211-56031
sub11213-56012
sub11278-77010
sub11293-56012
sub11293-56040
sub11293-57010
sub11293-57030
sub11293-58010
sub12180-70010
sub90210-12001
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
main11295-46010i198008-198608
main90176-08014i198008-198708
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
main90210-12001i198008-198608
main90210-13001i198008-198708
11213GASKET, CYLINDER HEAD COVER
main11213-56011i198008-198409
sub11213-56012
main11213-56012i198409-198608
main11213-61011i198008-198411
main11213-61020i198411-198708
main11213-68010i198210-198708
main11213-68020i198510-198708
12108CAP SUB-ASSY, OIL FILLER
main12180-13010i198008-198411
main12180-13030i198509-198708
sub12180-55010
main12180-61010i198510-198708
sub12180-70020
main12180-70010i198301-198607
sub12108-78010
main12180-71010i198411-198506
main12180-71011i198506-198510
sub12180-61010
12108AGASKET(FOR OIL FILLER CAP)
main12195-71010i198411-198708
sub12195-71020
main90430-37140i198008-198708
1302
1701
1709

20 parts on this diagram · 5 diagrams in section
