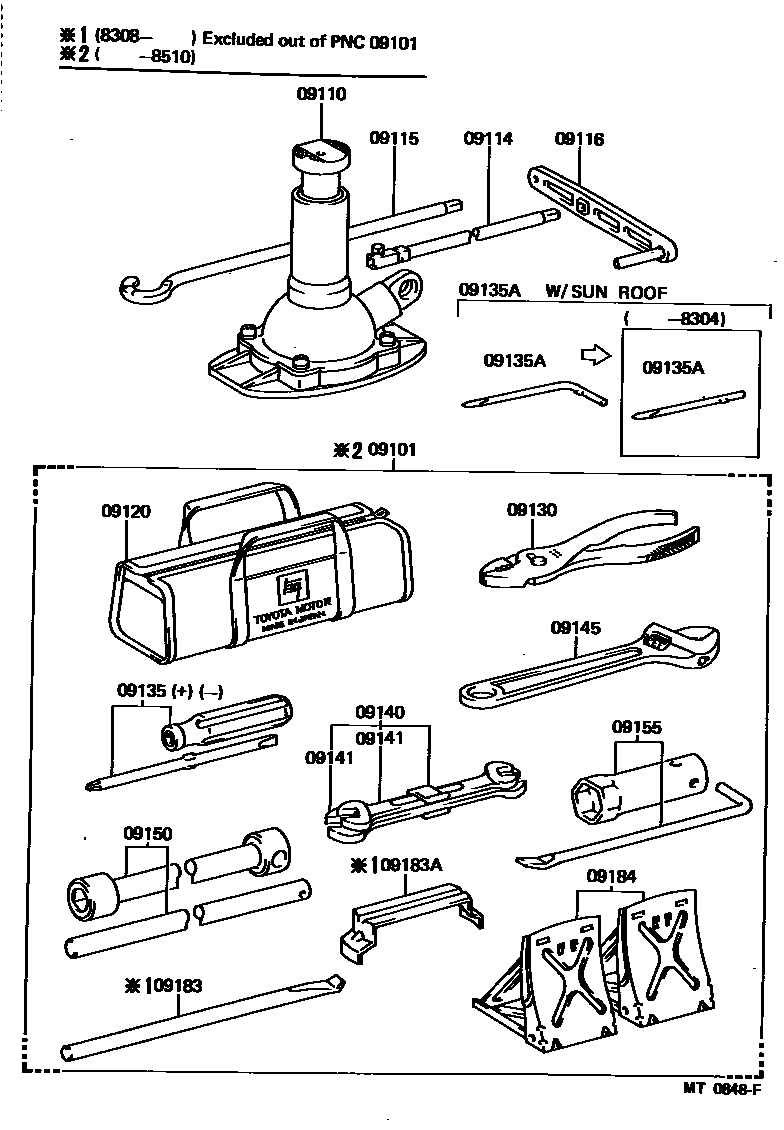

STANDARD TOOL

0001 1 0002 1

09101TOOL SET, STANDARD W/O JACK

main09101-60070iFJ60198008-198110

main09101-60080iBJ60198008-198110

main09101-60180iBJ60198110-198205

sub09101-60220

main09101-60190iFJ60198110-198205

sub09101-60221

main09101-60220iBJ61,HJ60198210-198308

W/FREE WHEEL HUB

main09101-60220iBJ60198205-198210

main09101-60221iFJ60198205-198210

main09101-60221iFJ61198210-198308

W/FREE WHEEL HUB

main09101-60250iBJ61,HJ60198210-198510

main09101-60251iFJ6#198210-198510

09110JACK ASSY

main09110-60030iBJ6#,FJ6#,HJ60198008-198308

sub09110-60040

main09110-60040iBJ61,FJ61,HJ60198308-198411

sub09111-60050

sub09113-60040

main09111-60050iBJ61,FJ62,HJ6#198411-198708

sub09110-60060

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60030iBJ6#,FJ6#,HJ60198008-198510

sub09114-60032

main09114-60050iBJ61,FJ62,HJ6#198510-198708

sub09114-28010

09115ROD SUB-ASSY, JACK HANDLE

main09115-35040iBJ6#,FJ6#,HJ60198008-198510

main09115-60030iBJ61,FJ62,HJ6#198510-198708

09116LEVER, JACK HANDLE

main09116-35041iBJ6#,FJ6#,HJ6#198008-198708

09120BAG, TOOL

main09120-60060iBJ6#,FJ6#,HJ60198008-198510

sub09120-60090

main09120-60080iBJ61,FJ62,HJ6#198510-198703

main09120-60090iFJ62,HJ6#198703-198708

09130PLIERS

main09130-00030iBJ60,FJ60198008-198205

sub09130-00022

main99913-11500iFJ62,HJ6#198703-198708

main99913-12000iBJ6#,FJ6#,HJ6#198205-198703

09135DRIVER, SCREW

main99915-10700iBJ6#,FJ6#,HJ6#198008-198708

(+),(-)

09135ABIT, SCREW DRIVER

main09135-00011iBJ61,HJ60..HRF198210-198304

sub09135-00012

main09135-00012iBJ61,HJ60..HRF198304-198510

main09135-60010iBJ61,HJ6#..HRF198510-198708

09140SPANNER SET

main09140-27010iBJ6#,FJ6#,HJ6#198008-198608

09141SPANNER

main99914-10810iFJ62,HJ6#198703-198708

main99914-11012iBJ6#,FJ6#,HJ6#198008-198703

main99914-11214iFJ62,HJ6#198703-198708

main99914-11417iBJ6#,FJ6#,HJ6#198008-198703

09145WRENCH, MONKEY

main99911-10250iBJ6#,FJ6#,HJ6#198008-198608

sub99911-20250

main99911-11200iFJ62,HJ6#198703-198708

main99911-20250iFJ62,HJ6#198608-198703

sub09029-10250

09150WRENCH, HUB NUT BOX

main09150-60010iBJ6#,FJ6#,HJ6#198008-198705

main09150-60020iFJ62,HJ6#198705-198708

09155WRENCH, SPARK PLUG

main09155-44010iFJ6#198008-198708

09183WRENCH, WHEEL CAP

main09183-00030iBJ60,FJ60198110-198210

main09183-00030iBJ61,FJ6#,HJ6#198210-198708

W/FREE WHEEL HUB

09183AREPLACER, WHEEL CAP

main09183-60010iBJ60,FJ60198110-198210

main09183-60010iBJ61,FJ6#,HJ6#198210-198708

W/FREE WHEEL HUB

09184STOPPER, WHEEL

main09184-00031iBJ6#,FJ6#,HJ6#198008-198708

sub09184-60010

17 parts on this diagram · 2 diagrams in section
