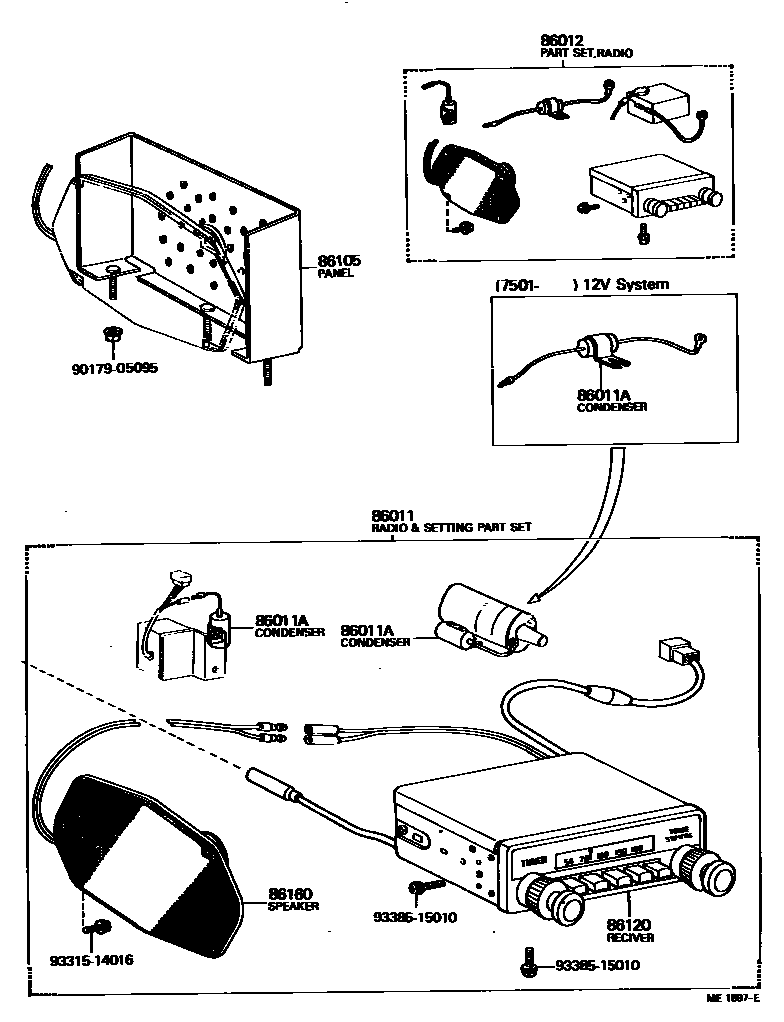

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1

86011RADIO & SETTING PARTS SET

main86011-35031iFJ55196903-197107

sub86011-35032

sub86011-60020

main86011-60020iFJ55197107-197209

sub86011-35032

main86011-60021iFJ5#197209-197505

main86011-60022iFJ56197505-197902

sub86120-35025

sub86012-69025

main86011-60030iFJ4#197209-197505

sub86011-60031

main86011-60031iFJ4#197505-197509

sub86120-35025

sub86012-69015

main86011-60040iBJ4#197402-198007

main86011-69015iBJ4#197902-198007

W/BRACKET

86011ACONDENSER, RADIO SETTING

main90980-04007iBJ4#,FJ4#,55197209-197601

CONNECTOR:(U)

main90980-04011iBJ4#,FJ4#,5#196903-197601

CONNECTOR:PLUG

main90980-04011iBJ4#,FJ56197601-198007

CONNECTOR;PLUG

main90980-04015iFJ4#197501-197509

CONNECTOR ; PLUG &(U)

sub90980-04033

86012PARTS SET, RADIO SETTING

main86012-69015iFJ4#197505-197509

sub86012-69016

main86012-69025iFJ56197505-197902

main86012-69027iFJ56197902-198007

sub86012-69018

86105PANEL SUB-ASSY, SPEAKER SEPARATE

main86101-90300iBJ4#,FJ4#197209-198007

86120RECEIVER ASSY, RADIO

main86120-25010iBJ4#197402-197711

sub86120-25020

sub86212-95211

main86120-25020iBJ4#197711-197806

main86120-35024iFJ4#,5#197107-197505

sub86120-35025

sub86215-25020

sub86215-36011

sub86215-89107

main86120-35025iFJ4#,56197505-197902

main86120-60020iFJ56197902-198007

main86120-60030iBJ4#197806-198007

86160SPEAKER ASSY, FRONT NO.1

main86150-35022iFJ55196903-197209

main86160-35010iFJ5#197209-197505

sub86160-36010

main86160-35011iFJ56197505-197902

main86160-60010iFJ4#197209-197505

main86160-60011iFJ4#197505-197509

main86160-60012iFJ56197902-198007

main86160-60020iBJ4#197402-197806

main86160-60021iBJ4#197806-198007

9017905095

main90179-05095

9331514016

main93315-14016

9338515010

main93385-15010

9 parts on this diagram · 5 diagrams in section
