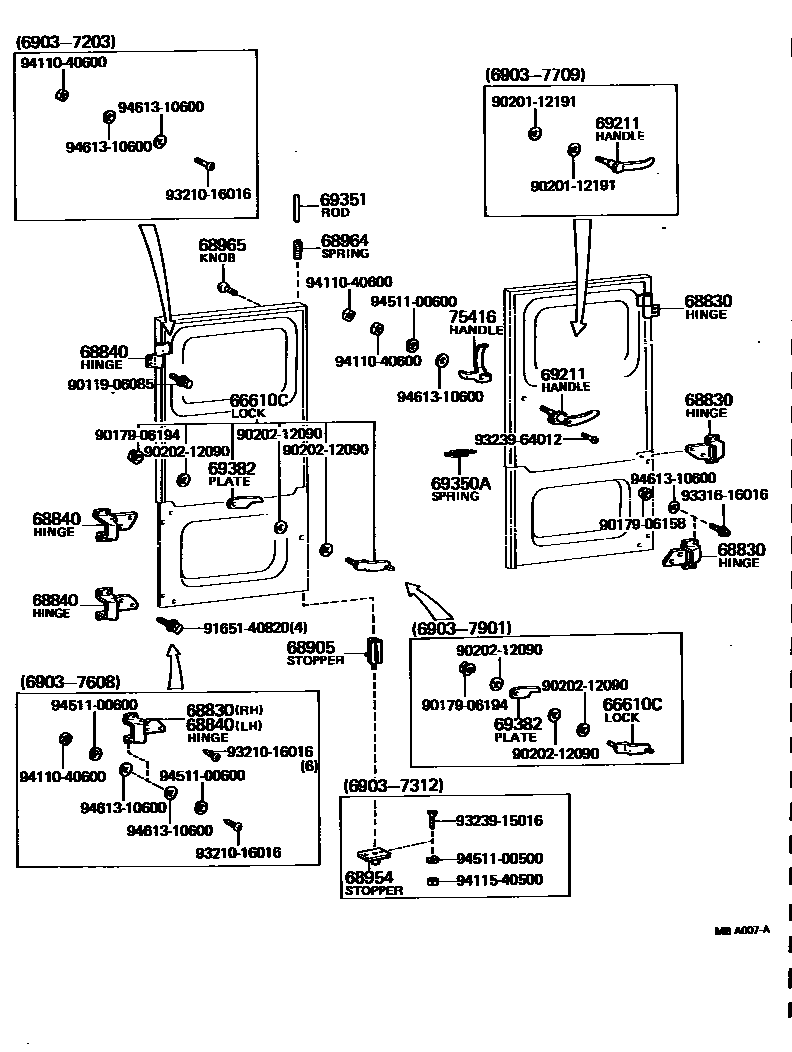

BACK DOOR LOCK & HINGE

0001 1 0002 1 0003 1 0004 1 0005 1

66610LOCK ASSY, TAIL GATE

main69310-60031iBJ40,FJ40..VKC¥9,500197204-197902

main69310-90301iBJ41..VKC¥8,900197902-198007

main69350-91145iFJ5#..VTG196903-198007

RH.

main69380-91145iFJ5#..VTG196903-198007

LH.

main69390-60021iBJ40,41,FJ40..VLS¥1,440196903-198007

66610CLOCK ASSY, REAR DROP GATE

main69308-90314iFJ4#..TPC¥1,590196903-197005

sub69308-90315¥1,590

sub90202-12090¥230

main69308-90315iBJ4#,FJ4#..TP¥1,590197005-197902

main69360-60010iBJ40,41,FJ40..VLS¥3,940196903-198007

main69380-90316iBJ4#..TPC¥1,490197902-198007

sub69308-90315¥1,590

sub69382-90315¥900

sub90202-12090¥230

68830HINGE ASSY, BACK DOOR, RH

main65610-90356iFJ5#..VKC¥4,820196903-198007

UPPER

main65630-90356iFJ5#..VKC¥4,820196903-198007

LOWER

main68095-60020iBJ40,41,FJ40..VKC¥4,560197204-198007

LOWER

main68810-90301iBJ40,41,FJ40..VLS¥3,440196903-198007

main68905-60030iBJ40,41,FJ40..VKC¥4,910197204-198007

UPPER

main68905-90304iBJ4#..TPC¥1,880197608-198007

CENTER

main68905-90924iBJ4#,FJ4#..TP196903-197608

CENTER

main68906-90303iBJ4#..TPC¥1,880197608-198007

LOWER

main68906-90924iBJ4#,FJ4#..TP196903-197608

LOWER

main68907-90314iBJ4#..TPC197608-198007

UPPER

main72402-90351iFJ5#..VTG196903-197712

main72402-90352iFJ56..VTG197712-198007

68840HINGE ASSY, BACK DOOR, LH

main65620-90356iFJ5#..VKC196903-198007

UPPER

main65640-90356iFJ5#..VKC196903-198007

LOWER

main68095-60020iBJ40,41,FJ40..VKC¥4,560197204-198007

LOWER

main68810-90301iBJ40,41,FJ40..VLS¥3,440196903-198007

main68905-90304iBJ4#..TPC¥1,880197608-198007

LOWER

main68905-90924iBJ4#,FJ4#..TP196903-197608

LOWER

main68906-60020iBJ40,41,FJ40..VKC¥5,400197204-198007

UPPER

main68906-90303iBJ4#..TPC¥1,880197608-198007

CENTER

main68906-90924iBJ4#,FJ4#..TP196903-197608

CENTER

main68908-90314iBJ4#..TPC197608-198007

UPPER

main72418-90351iFJ5#..VTG196903-197712

main72418-90352iFJ56..VTG197712-198007

68905STOPPER SUB-ASSY, BACK DOOR OPEN

main68950-90305iBJ4#,FJ4#..TPB,TPC,VLS¥2,930196903-198007

68954STOPPER, REAR SWING GATE OPEN FEMALE

main68955-60010iFJ40..TPC,VLS196903-197312

68964SPRING, REAR SWING DOOR OPEN STOPPER

main68964-90924iBJ4#,FJ4#..TP¥250196903-197902

sub90501-12037¥220

main90501-12037iBJ4#..TPC¥220197902-198007

68965KNOB, REAR SWING DOOR OPEN STOPPER

main68962-90300iBJ4#..TPC¥730197902-198007

main68963-90925iBJ4#,FJ4#..TP¥860196903-197902

sub68962-90300¥730

69211HANDLE, BACK DOOR OUTSIDE, RH

main69201-60010iBJ4#,FJ4#..TP¥6,300196903-197709

main69201-90327iBJ4#,FJ4#..TP¥10,000196903-197902

W/KEY

main69201-90327iBJ4#..TPC¥10,000197902-198007

main69210-90351iFJ5#..VKC¥4,450196903-197709

main69240-90351iFJ56..VKC197709-198007

69350LOCK ASSY, BACK DOOR

main65580-90355iFJ5#..VKC196903-197807

main65580-90356iFJ56..VKC197807-198007

69350ASPRING(FOR BACK DOOR LOCK)

main90506-09131iBJ40,41,FJ40..VLS196903-198007

main90506-18324iBJ4#,FJ4#..TP¥430196903-198007

69351ROD, BACK DOOR LOCK CONTROL, UPPER

main68961-90315iBJ4#,FJ4#..TP¥1,980196903-198007

main69764-60010iFJ40..VKC197204-197302

main69764-90300iBJ40,FJ40..VKC197302-197507

main69764-90301iBJ40,FJ40..VKC197507-197807

main69764-90302iBJ40,41..VKC¥1,530197807-198007

69382PLATE, REAR SWING GATE LOCK

main69382-90314iFJ4#..TPC196903-197005

main69382-90315iBJ4#,FJ4#..TP¥900197005-198007

75416HANDLE, TAIL GATE, INSIDE

main69260-60010iBJ40,41,FJ40..VLS¥2,690196903-198007

main69261-90314iBJ4#,FJ4#..TP196903-197902

main69261-90323iBJ4#,FJ4#..TP¥1,570196903-197902

W/KEY

main69261-90323iBJ4#..TPC¥1,570197902-198007

main69271-10020iBJ40,41,FJ40,5#..VKC¥940196903-198007

9011906085

main90119-06085¥250

9017906158

main90179-06158¥70

9017906194

main90179-06194¥120

9020112191

main90201-12191¥250

9020212090

main90202-12090¥230

9165140820

main91651-40820¥90

9321016016

main93210-16016¥170

9323915016

main93239-15016¥80

9323964012

main93239-64012¥120

9331616016

main93316-16016¥130

9411040600

main94110-40600¥80

9411540500

main94115-40500¥110

9451100500

main94511-00500¥170

9451100600

main94511-00600¥120

9461310600

main94613-10600¥170

29 parts on this diagram · 5 diagrams in section
