E
EPC Data

SIDE MEMBER

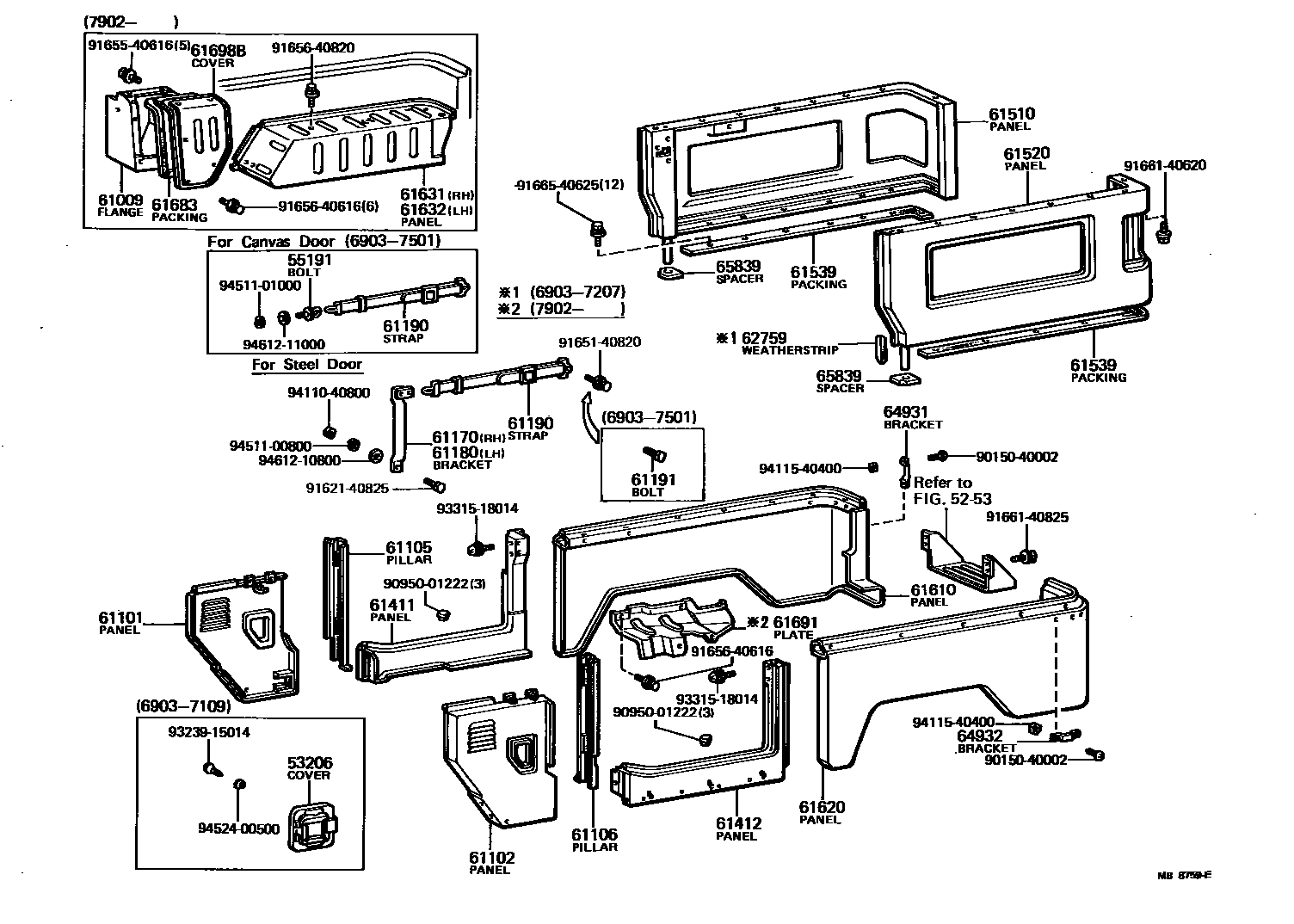

Parts diagram
5253
53206COVER SUB-ASSY, COWL SIDE AIR GUIDE
main53206-60020i196903-197109
55191BOLT, SAFETY STRAP RING
main55191-60010i196903-197501
61009FLANGE SUB-ASSY,REAR SIDE SERVICE HOLE COVER SET
main61009-90300i197902-198007
61101PANEL SUB-ASSY, COWL SIDE, RH
main55007-90300i197109-197902
sub55706-90301
main55007-90301i197902-198007
sub55007-90800
main61101-90351i196903-197209
main61101-90354i197209-198007
61102PANEL SUB-ASSY, COWL SIDE, LH
main55707-90301i197109-197309
main55707-90304i197309-197902
main55707-90314i197902-197911
sub55707-90816
main55707-90320i197911-198007
sub55707-90807
main61102-90351i196903-197209
main61102-90353i196910-197209
FOR W/COOLER
main61102-90354i197209-198007
main61102-90358i197209-197309
FOR W/COOLER
61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH
main61106-90300i197109-197509
main61106-90305i197501-197902
main61106-90309i197902-198007
61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH
main61107-90302i197109-197509
main61107-90312i197501-197902
sub61107-90313
main61107-90316i197902-198007
main61107-90318i197902-198007
FOR W/COOLER
61170BRACKET ASSY, SAFETY STRAP, RH
main61193-90300i196903-197509
61180BRACKET ASSY, SAFETY STRAP, LH
main61193-90300i196903-197509
61190STRAP ASSY, SAFETY
main61190-90300i196903-197509
61191BOLT, SAFETY STRAP RING
main61191-60010i196903-197501
61411PANEL, ROCKER, OUTER RH
main61310-60010i196903-197012
main61310-90300i197012-197209
main61310-90302i197209-197509
main61310-90303i197501-197902
sub61310-90305
main61310-90311i197902-198007
sub61310-90310
main61411-90352i196903-198007
61412PANEL, ROCKER, OUTER LH
main61320-60010i196903-197012
main61320-90300i197012-197509
main61320-90301i197402-197509
main61320-90302i197501-197509
sub61320-90304
main61320-90303i197501-197902
main61320-90308i197902-198007
sub61320-90309
main61412-90352i196903-198007
61510PANEL ASSY, REAR UPPER SIDE, RH
main61501-60011i196903-197309
sub61501-90303
sub61549-90800
main61501-90303i197309-197608
sub61501-90305
main61501-90304i197402-197608
sub61501-90306
main61501-90310i197608-197902
sub61501-90311
main61501-90311i197902-198007
main61501-90312i197608-197902
sub61501-90313
main61501-90313i197902-198007
61520PANEL ASSY, REAR UPPER SIDE,LH
main61502-60011i196903-197309
sub61502-90310
main61502-90303i197309-197608
sub61502-90304
sub61549-90800
main61502-90305i197402-197608
sub61502-90306
sub61549-90800
main61502-90311i197608-197902
sub61502-90315
sub61549-90800
main61502-90312i197902-198007
sub61502-90318
sub61549-90800
main61502-90313i197608-197902
sub61502-90316
sub61549-90800
main61502-90314i197902-198007
sub61502-90317
sub61549-90800
61539PACKING, REAR UPPER SIDE PANEL SET
main61534-60011i196903-198007
61610PANEL ASSY, REAR BODY SIDE, RH
main61601-60071i196903-196910
sub61601-90422
main61601-60073i196910-197209
sub61601-90422
main61601-90071i197209-197302
sub61601-90425
main61601-90073i197209-197309
sub61601-90425
main61601-90077i197209-197302
sub61601-90443
main61601-90085i197302-197309
sub61601-90443
main61601-90275i197309-197501
main61601-90276i197501-197902
sub61601-90428
main61601-90280i197309-197501
main61601-90281i197501-197902
sub61601-90429
main61601-90287i197509-197709
sub61601-90445
main61601-90288i197309-197501
main61601-90302i196903-196910
sub61601-90422
main61601-90305i196903-196910
sub61601-90441
main61601-90328i196910-197209
sub61601-90422
main61601-90334i196910-197209
sub61601-90441
main61601-90611i197402-197501
main61601-90612i197402-197501
W/SAFETY BAR
main61601-90620i197402-197501
FOR W/SAFETY BAR
main61601-90622i197402-197501
FOR W/SAFETY BAR
main61601-90633i197512-197902
main61601-90803i197709-197902
main61601-90819i197902-197904
sub61601-90848
sub61802-90302
main61601-90820i197902-197904
sub61601-90849
sub61802-90302
main61601-90821i197902-197904
sub61601-90850
sub61802-90302
main61601-90828i197902-197904
sub61601-90857
sub61802-90302
main61601-90848i197904-198005
main61601-90849i197904-198005
main61601-90850i197904-198007
main61601-90857i197904-198007
main61601-90877i198005-198007
main61601-90878i198005-198007
61620PANEL ASSY, REAR BODY SIDE, LH
main61602-60070i196903-196910
sub61602-90088
main61602-60072i196910-197309
sub61602-90088
main61602-90071i197309-197501
main61602-90072i197501-197509
sub61602-90089
main61602-90076i197501-197608
sub61602-90275
main61602-90078i197309-197501
main61602-90288i197402-197501
sub61602-90410
main61602-90316i196903-196910
sub61602-90088
main61602-90322i196903-196910
sub61602-90275
main61602-90328i196910-197309
sub61602-90088
main61602-90334i196910-197309
sub61602-90275
main61602-90346i197501-197509
sub61602-90088
main61602-90349i197309-197501
main61602-90410i197402-197608
main61602-90414i197402-197501
sub61602-90076
main61602-90420i197402-197501
W/SAFETY BAR
sub61602-90410
main61602-90425i197402-197501
sub61602-90072
main61602-90426i197402-197608
main61602-90431i197402-197501
FOR W/SAFETY BAR
main61602-90433i197402-197501
W/SAFETY BAR
main61602-90435i197402-197501
W/SAFETY BAR
main61602-90441i197512-197608
main61602-90605i197608-197709
main61602-90606i197608-197902
main61602-90607i197608-197902
main61602-90609i197608-197902
main61602-90611i197709-197902
main61602-90631i197902-198005
main61602-90632i197902-198007
main61602-90633i197902-198005
main61602-90640i197902-198005
main61602-90822i198005-198007
main61602-90824i198005-198007
main61602-90830i198005-198007
61631PANEL, QUARTER WHEEL HOUSE, RH
main61603-90070i197902-198007
main61603-90345i197902-198007
main61603-90346i197902-198007
main61603-90347i197902-198007
FOR L/ROLL BER
main61603-90348i197902-198007
main61603-90349i197902-198007
main61625-90903i196903-197209
INNER,FOR W/SIDE SEAT
main61631-90351i196903-197209
OUTER
sub61646-90351
main61633-90361i196903-197209
INNER,FOR W/3RD SEAT
main61633-90904i196903-197209
INNER
main61646-90351i197209-198007
OUTER
main61648-90352i197209-197902
INNER,FOR W/3RD SEAT
main61648-90901i197209-197508
INNER
sub61705-90351
main61648-90902i197209-197508
INNER,FOR W/SIDE SEAT
sub61705-90352
main61705-90351i197508-198007
INNER
main61705-90352i197508-197902
INNER,FOR W/SIDE SEAT
61632PANEL, QUARTER WHEEL HOUSE, LH
main61604-90070i197902-198007
main61604-90345i197902-198007
main61604-90346i197902-198007
sub61604-90803
main61604-90347i197902-198007
FOR L/ROLL BAR
main61604-90348i197902-198007
main61604-90349i197902-198007
main61626-90903i196903-197209
INNER,FOR W/SIDE SEAT
main61632-90351i196903-197209
OUTER
sub61647-90351
main61634-90361i196903-197209
INNER,FOR W/3RD SEAT
main61634-90904i196903-197209
INNER
main61647-90351i197209-198007
OUTER
main61649-90352i197209-197902
INNER,FOR W/3RD SEAT
main61649-90901i197209-197508
INNER
sub61706-90351
main61649-90902i197209-197508
INNER,FOR W/SIDE SEAT
sub61706-90352
main61706-90351i197508-198007
INNER
main61706-90352i197508-197902
INNER,FOR W/SIDE SEAT
61683PACKING, REAR BODY REAR SIDE SERVICE HOLE COVER
main61683-90300i197902-198007
61691PLATE, REAR FENDER UNDER GUARD
main61691-90300i197902-198007
61698BCOVER, REAR BODY SIDE SERVICE HOLE
main61698-90300i197902-198007
62759WEATHERSTRIP, UPPER SIDE SET FLANGE
main65839-90300i196903-197207
64931BRACKET, BAND, NO.1
main64921-60010i196903-198007
64932BRACKET, BAND, NO.2
main64921-90310i196903-198007
65839SPACER, FRONT SIDE PANEL PILLAR
main65839-90300i196903-198007
9015040002
main90150-40002
9095001222
main90950-01222
9162140825
main91621-40825
9165140820
main91651-40820
9165540616
main91655-40616
9165640616
main91656-40616
9165640820
main91656-40820
9166140620
main91661-40620
9166140825
main91661-40825
9166540625
main91665-40625
9323915014
main93239-15014
9331518014
main93315-18014
9411040800
main94110-40800
9411540400
main94115-40400
9451100800
main94511-00800
9451101000
main94511-01000
9452400500
main94524-00500
9461210800
main94612-10800
9461211000
main94612-11000

47 parts on this diagram · 2 diagrams in section
