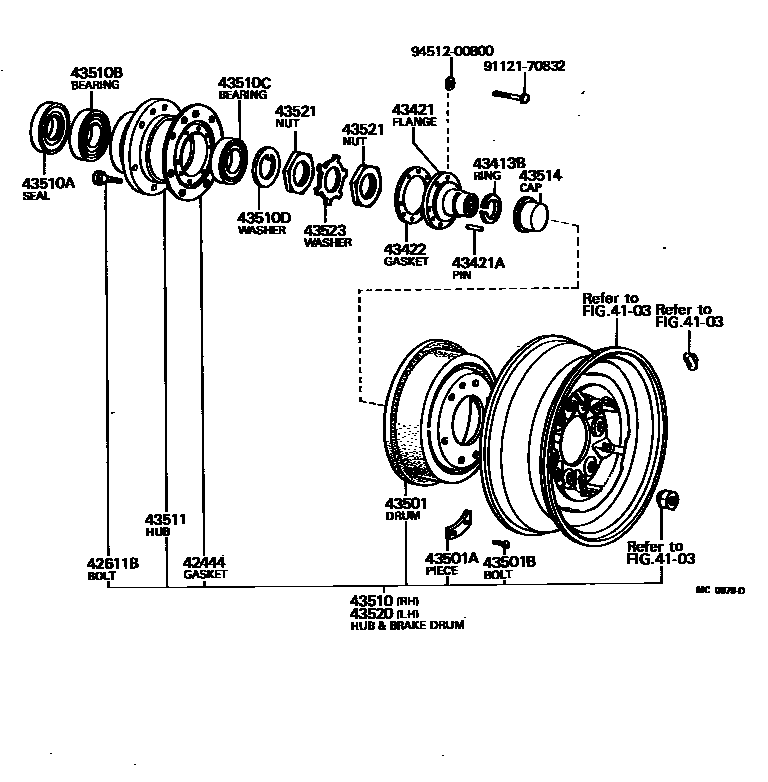

FRONT AXLE HUB

0001 1 0002 1 0003 1

4103

42444GASKET, BRAKE DRUM (FOR FRONT AXLE)

main42444-35010×2iBJ4#,FJ4#,55196903-197509

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02014×12iBJ4#,FJ4#,5#196903-197509

main90942-02034×12iBJ4#,FJ56197509-198007

FOR DRUM BRAKE

sub90942-02052

43413BRING, DRIVE SHAFT SNAP

main90520-28038×2iBJ4#,FJ4#,5#196903-197509

main90520-31001×2iBJ4#,FJ56197509-198007

sub90520-31007

43421FLANGE, FRONT AXLE OUTER SHAFT

main43421-60010×2iBJ4#,FJ4#,5#196903-197509

main43421-60012×2iBJ4#,FJ56197509-197902

main43421-60013×2iBJ4#,FJ56197902-198007

43421APIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE)

main90250-07057×4iBJ4#,FJ4#,5#196903-198007

43422GASKET, FRONT AXLE OUTER SHAFT FLANGE

main43422-60010×2iBJ4#,FJ4#,5#196903-198007

43501DRUM SUB-ASSY, FRONT BRAKE

main43501-60010×2iBJ4#,FJ4#,5#196903-197509

main43512-60020×2iBJ4#,FJ56197509-198007

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01027iBJ4#,FJ4#,5#196903-197509

30G.

main90937-01028iBJ4#,FJ4#,5#196903-197509

60G.

main90937-01085iBJ4#,FJ4#,5#197111-197509

90G.

main90937-01117iBJ4#,FJ56197509-198007

main90937-01118iBJ4#,FJ56197509-198007

main90937-01119iBJ4#,FJ56197509-198007

main90937-01120iBJ4#,FJ56197509-198007

main90937-01121iBJ4#,FJ56197509-198007

main90937-01122iBJ4#,FJ56197509-198007

main90937-01183iBJ4#197902-198007

FOR DISC BRAKE

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007×4iBJ4#,FJ4#,5#196903-197509

main90113-10035×2iBJ4#,FJ56197509-198007

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-60010iBJ4#,FJ4#,5#196903-197509

main43510-60040iBJ4#,FJ56197509-198007

sub43510-60041

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-62001×2iBJ4#,FJ56197610-198007

main90311-62147×2iBJ4#,FJ56197509-197610

main90312-55010×2iBJ4#,FJ4#,5#196903-197509

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-41002×2iBJ4#,FJ4#,5#196903-197509

main90368-49084×2iBJ4#,FJ56197509-198007

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-38003×2iBJ4#,FJ4#,5#196903-197509

main90368-45087×2iBJ4#,FJ56197509-198007

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-38013×2iBJ4#,FJ4#,5#196903-197509

main90214-42030×2iBJ4#,FJ56197509-198007

43511HUB, FRONT AXLE

main43511-60010×2iBJ4#,FJ4#,5#196903-197509

main43511-60012×2iBJ4#,FJ56197509-198007

FOR DRUM BRAKE

sub43502-60030

main43511-60021×2iBJ4#197902-198007

FOR DISC BRAKE

43514CAP, FRONT HUB GREASE

main43423-60010×2iBJ4#,FJ4#,5#196903-197902

main43423-60011×2iBJ4#,FJ56197902-198007

sub43423-35010

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-60010iBJ4#,FJ4#,5#196903-197509

main43510-60040iBJ4#,FJ56197509-198007

sub43510-60041

43521NUT, FRONT WHEEL ADJUSTING

main43521-60010×4iBJ4#,FJ4#,5#196903-197509

main43521-60011×4iBJ4#,FJ56197509-198007

43523WASHER, FRONT WHEEL ADJUSTING LOCK

main43523-60010×2iFJ4#,55196903-197112

main90215-38020×2iBJ4#,FJ4#,5#197112-197509

main90215-42025×2iBJ4#,FJ56197509-198007

9112170832

main91121-70832

9451200800

main94512-00800

22 parts on this diagram · 3 diagrams in section
