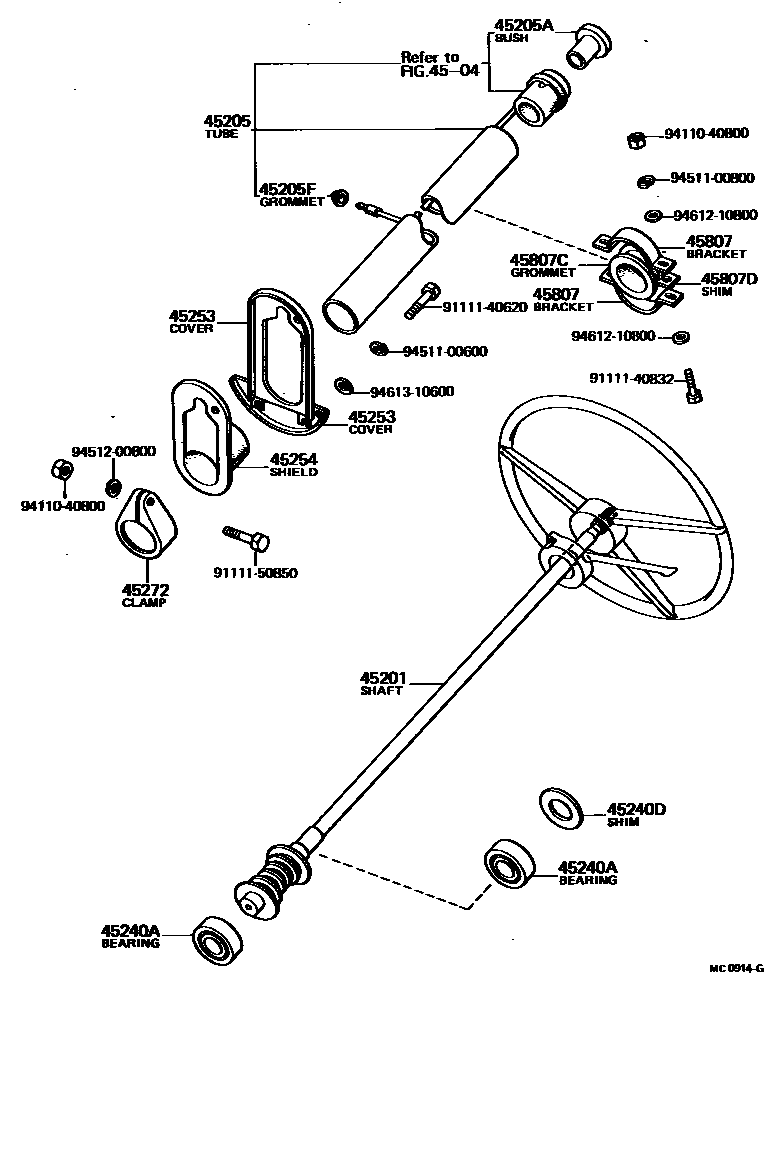

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

4504

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-60011iFJ4#196903-196907

SPLINE N=36

main45201-60012iFJ4#196907-197109

SPLINE N=33

main45201-60032iFJ4#197109-197209

main45201-60033iBJ4#,FJ4#197209-198007

sub45201-60034

main45201-60040iFJ55196903-196908

sub94125-41200

main45201-60041iFJ55196908-197209

main45201-60042iFJ5#197209-198007

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-60020iFJ4#196903-197109

main45205-60031iFJ5#197209-198007

main45205-60040iFJ4#197109-197209

main45205-60041iBJ4#,FJ4#197209-198007

main45251-60050iFJ55196903-197209

45205ABUSH(FOR STEERING COLUMN TUBE)

main90386-18026iFJ4#196903-197209

45205FGROMMET, STEERING COLUMN

main90480-12069iFJ4#196903-197209

45240WORM ASSY, STEERING

main45240-36030iFJ55197204-197209

sub45240-36031

main45241-60030iFJ55196903-197204

45240ABEARING(FOR STEERING WORM)

main90363-20003×2iBJ4#,FJ56197711-198007

main90363-20062×2iBJ4#,FJ4#,5#197209-197711

main97600-30205iFJ4#,55196903-197204

sub97609-30205

main97600-30206iFJ4#197204-197209

45240DSHIM(FOR STEERING WORM BEARING ADJUST)

main90564-40037iFJ4#,55196903-197204

T=0.5

main90564-40038iFJ4#197204-197209

T=0.2

main90564-40039iFJ4#,55196903-197204

T=0.1

45253COVER, STEERING COLUMN HOLE

main45253-60010iFJ55196903-197209

FOR COLUMN SHIFT

main45253-60030iFJ5#196903-198007

FOR FLOOR SHIFT

main45253-60050iBJ4#,FJ4#197209-198007

main55673-60010iFJ4#196903-197209

UPPER

main55674-60010iFJ4#196903-197209

LOWER

45254SHIELD, STEERING COLUMN HOLE

main45254-60010iFJ5#196903-198007

main45254-60020iBJ4#,FJ4#197209-198007

main55122-60011iFJ4#196903-197209

FOR COLUMN SHIFT

main55122-60021iFJ4#196903-197209

FOR FLOOR SHIFT

45272CLAMP, STEERING COLUMN, LOWER

main45272-55010iFJ4#,55196903-197209

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main55661-60010iFJ4#196903-197309

UPPER.FOR SINGLE M/C

main55661-60020iFJ40197109-197301

UPPER.FOR TANDEM M/C

main55661-90351iFJ55196903-197309

UPPER,FOR SINGLE M/C

main55661-90352iFJ5#197109-198007

UPPER,FOR TANDEM M/C

main55662-60010iFJ4#196903-197309

LOWER,FOR SINGLE M/C

main55662-60020iFJ40197109-197301

LOWER,FOR TANDEM M/C

main55662-90351iFJ55196903-197309

LOWER,FOR SINGLE M/C

main55662-90352iFJ5#197109-198007

LOWER,FOR TANDEM M/C

45807CGROMMET(FOR STEERING COLUMN CLAMP)

main90480-45092iBJ4#,FJ4#,5#196903-198007

45807DSHIM, STEERING COLUMN CLAMP

main55614-60010×4iBJ4#,FJ4#196903-198007

9111140620

main91111-40620

9111140832

main91111-40832

9111150850

main91111-50850

9411040800

main94110-40800

9451100600

main94511-00600

9451100800

main94511-00800

9451200800

main94512-00800

9461210800

main94612-10800

9461310600

main94613-10600

23 parts on this diagram · 9 diagrams in section
