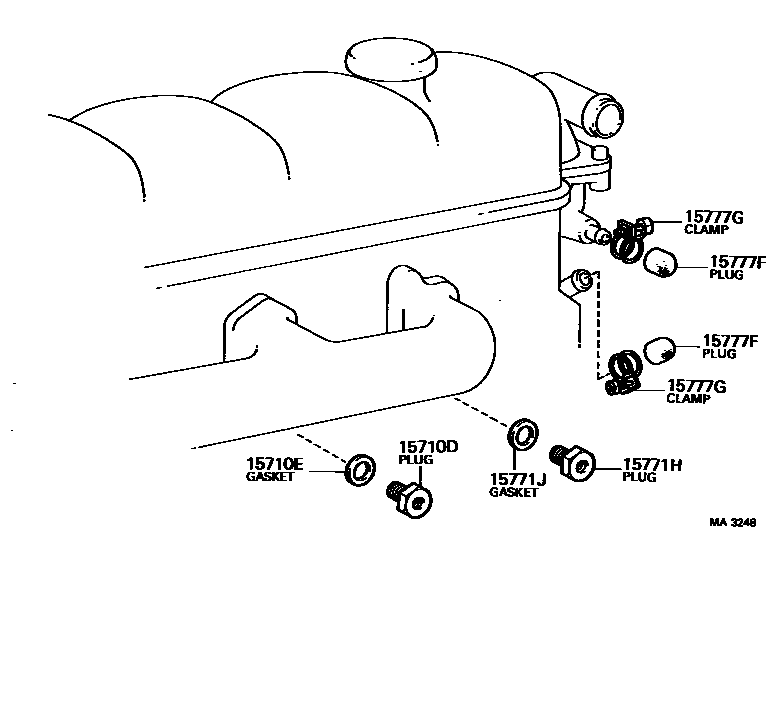

ENGINE OIL COOLER

0001 1 0002 1

15710COOLER ASSY, OIL

main15710-61010i2F..FJ56197509-198007

15710DPLUG, W/HEAD STRAIGHT SCREW

main90043-41017iB,2B..BJ4#197402-198007

L/OIL COOLER

15710EGASKET(FOR STRAIGHT SCREW PLUG)

main90430-18012iB,2B..BJ4#197402-198007

L/OIL COOLER

15771HPLUG, W/HEAD STRAIGHT SCREW

main90043-41008iB..BJ4#197402-197709

L/OIL COOLER

main90043-41017iB,2B..BJ4#197402-198007

L/OIL COOLER W/EDIC

15771JGASKET(FOR STRAIGHT SCREW PLUG)

main90430-18012iB,2B..BJ4#197402-198007

15777HOSE, OIL COOLER

main15779-61010i2F..FJ56197509-198007

15777FPLUG

main90339-16007iB,2B..BJ4#197402-198007

L/OIL COOLER

sub90339-16001

15777GCLAMP OR CRIP, HOSE

main90461-10139i2F..FJ56197509-198007

main96112-10250iB,2B..BJ4#197402-198007

L/OIL COOLER

8 parts on this diagram · 2 diagrams in section
