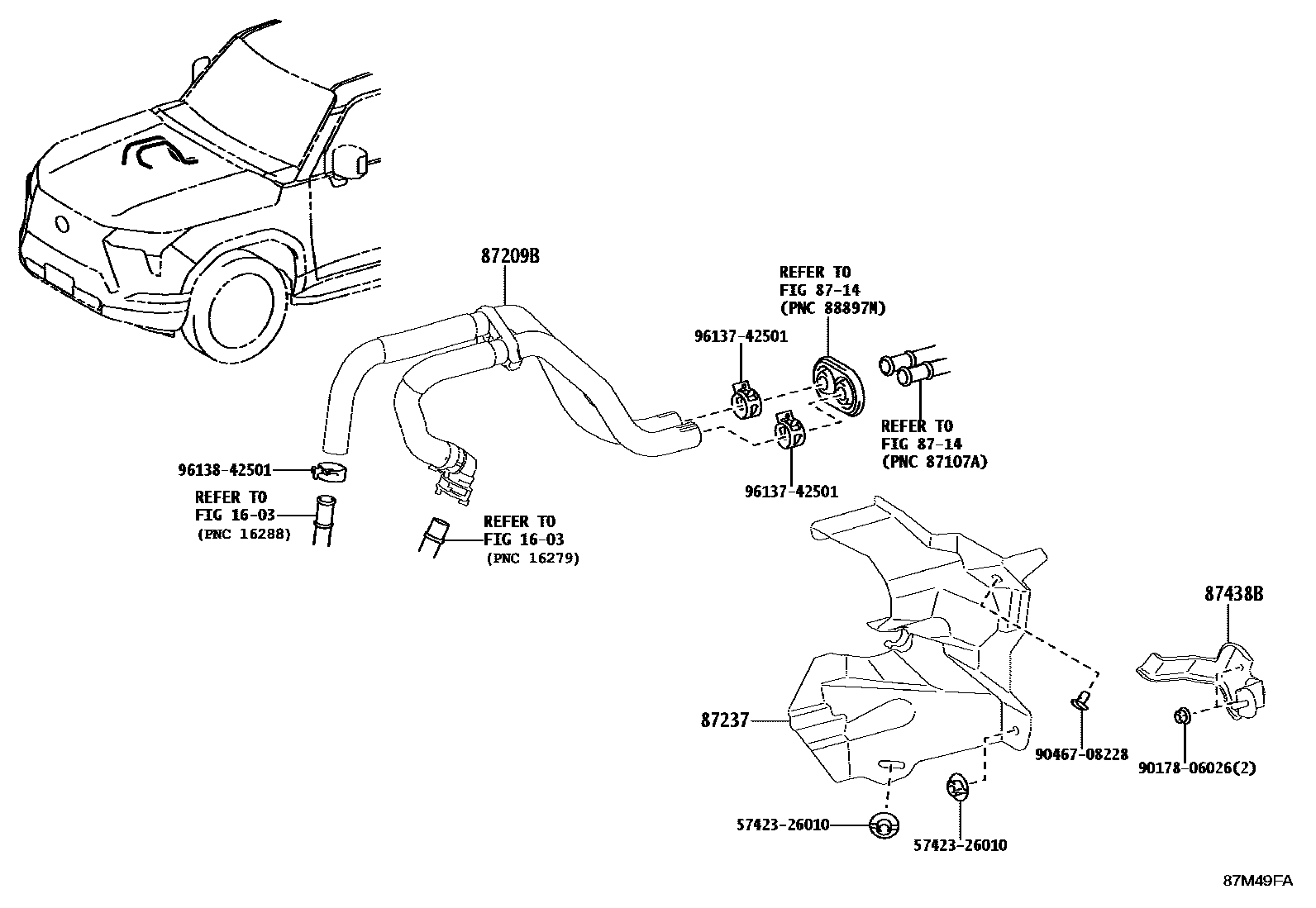

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT(SINGLE) 0002 1FRONT(DUEL) 0003 1REAR NO.1 0004 1REAR NO.2

1603

8714

87209BHOSE SUB-ASSY, WATER, B

main87209-60R10supersedes 87209-60R00iVJA252202405

87237COVER, HEATER PIPING

main87237-60040iVJA252202405

87438BBRACKET, HEATER PIPE, C

main87436-60020iVJA252202405

5742326010BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-26010

9017806026

main90178-06026

9046708228

main90467-08228

9613742501

main96137-42501

9613842501

main96138-42501

10 parts on this diagram · 4 diagrams in section
