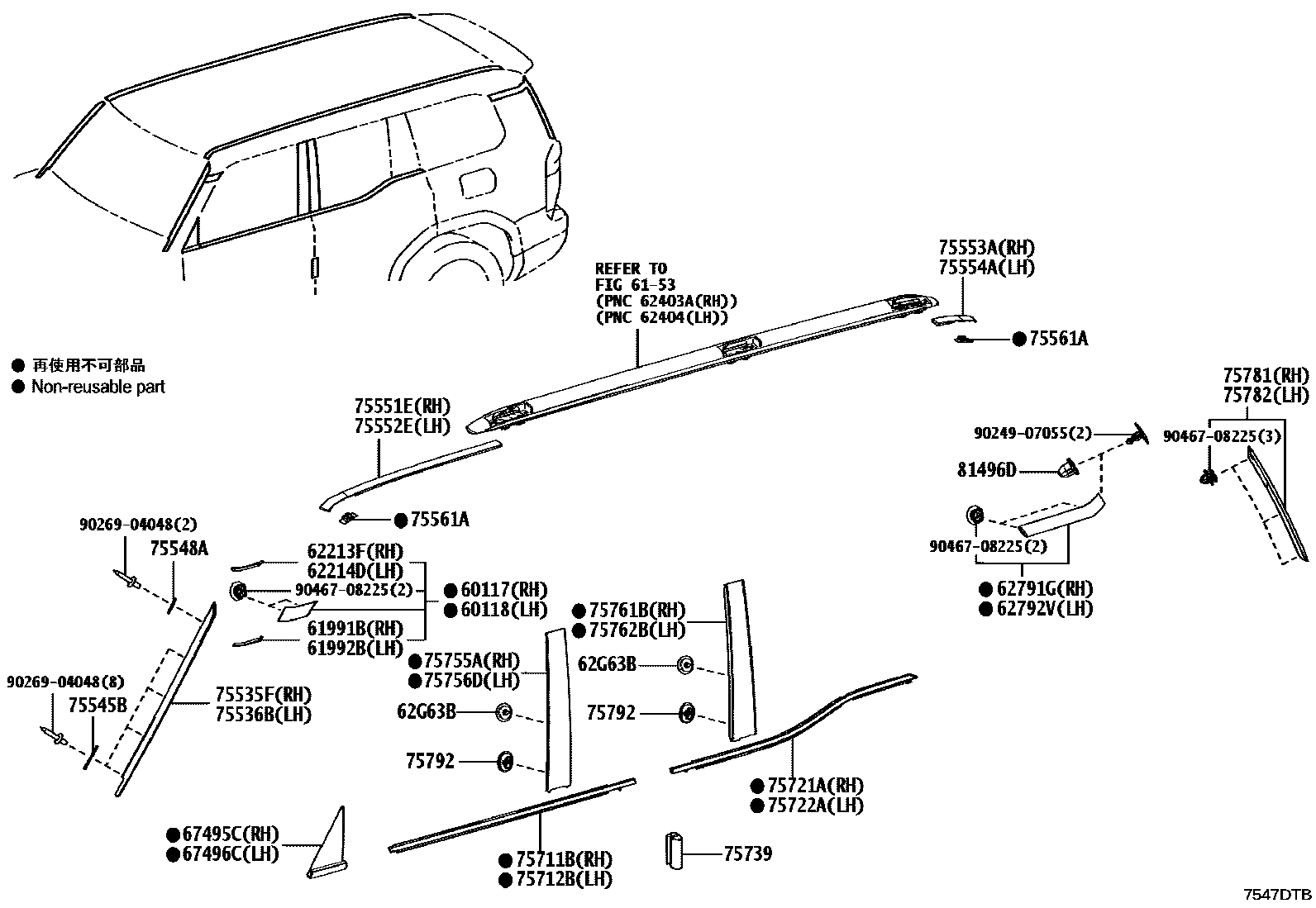

MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
6153
61991BPROTECTOR, FRONT PILLAR COVER, RH
61992BPROTECTOR, FRONT PILLAR COVER, LH
62213FPAD, FRONT PILLAR GARNISH, RH
62214DPAD, FRONT PILLAR GARNISH, LH
62791GMOULDING, QUARTER WINDOW, UPPER RH
62792VMOULDING, QUARTER WINDOW, UPPER LH
62G63BRETAINER, SIDE WINDOW FRAME
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75535FMOULDING, WINDSHIELD, OUTSIDE LOWER RH
75536BMOULDING, WINDSHIELD, OUTSIDE LOWER LH
75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75551EMOULDING, ROOF DRIP SIDE FINISH, RH
75552EMOULDING, ROOF DRIP SIDE FINISH, LH
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75711BMOULDING, FRONT DOOR BELT, RH
75712BMOULDING, FRONT DOOR BELT, LH
75721AMOULDING, REAR DOOR BELT, RH
75722AMOULDING, REAR DOOR BELT, LH
75739MOULDING, DOOR EDGE PROTECTION
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75781MOULDING, QUARTER WINDOW, LOWER RH
75782MOULDING, QUARTER WINDOW, LOWER LH
75792CLIP, DOOR WINDOW FRAME MOULDING
81496DGUIDE, REAR COMBINATION LAMP
9024907055
main90249-07055
9026904048
main90269-04048
9046708225
main90467-08225
37 parts on this diagram · 4 diagrams in section
