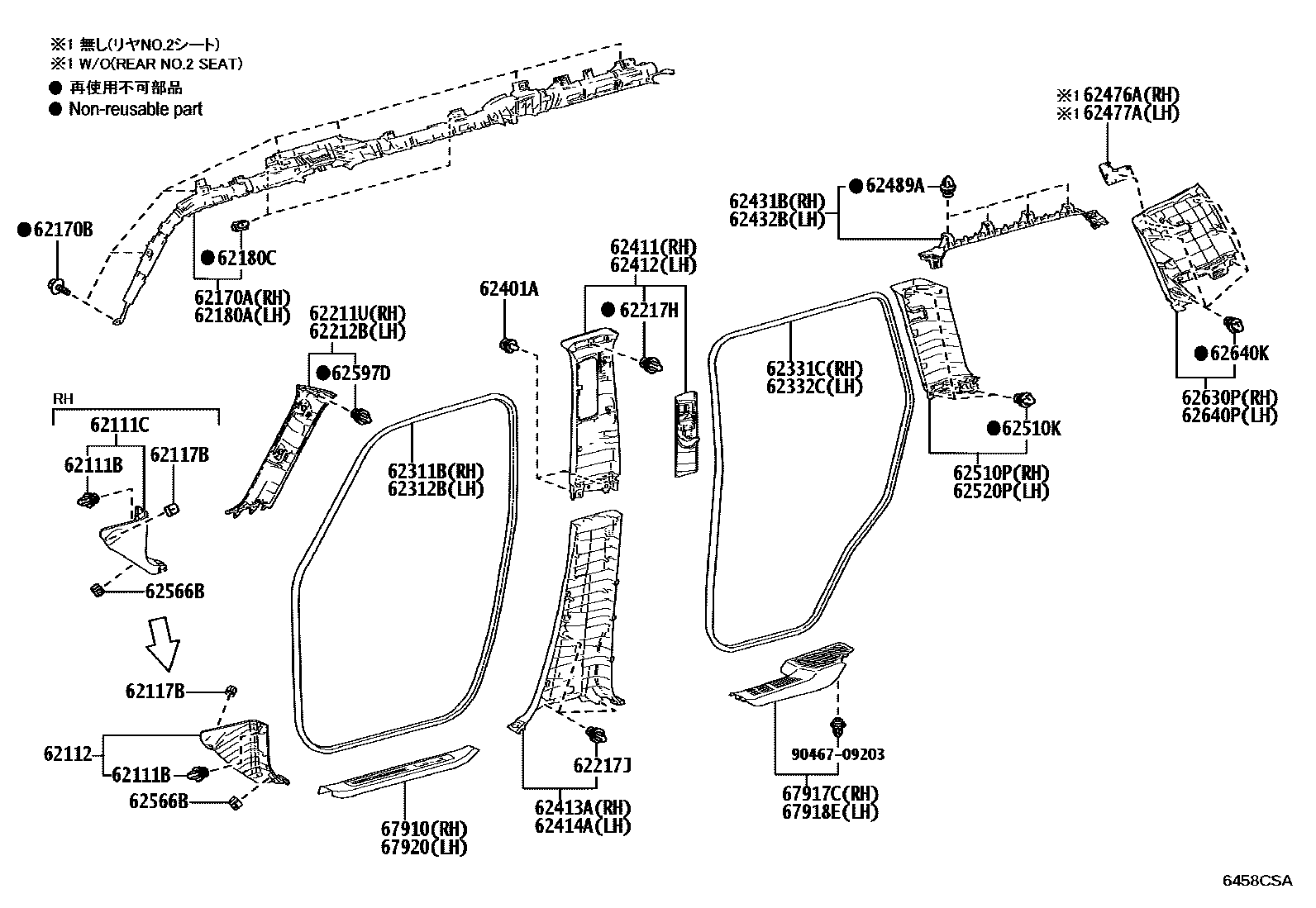

INSIDE TRIM BOARD
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM1#,2#,4#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM1#,2#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62180CCLIP, CURTAIN SHIELD AIRBAG
62211UGARNISH ASSY, FRONT PILLAR, RH
BLACK,TRIM1#,2#,4#
62212BGARNISH ASSY, FRONT PILLAR, LH
BLACK,TRIM1#,2#,4#
62217HCLIP, CENTER PILLER GARNISH
62217JCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411GARNISH, CENTER PILLAR, RH
BLACK,TRIM1#,2#,4#
62412GARNISH, CENTER PILLAR, LH
BLACK,TRIM1#,2#,4#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#,2#,4#
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#,4#
62431BGARNISH, ROOF SIDE RAIL, NO.1 RH
BLACK,TRIM1#,2#,4#
62432BGARNISH, ROOF SIDE RAIL, NO.1 LH
BLACK,TRIM1#,2#,4#
62476ACAP, ROOF SIDE INNER GARNISH, RH
62477ACAP, ROOF SIDE INNER GARNISH, LH
62489ACLIP, ROOF SIDE INNER GARNISH
62510KCLIP(FOR QUARTER TRIM FRONT PANEL)
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
BLACK,TRIM1#,2#,4#
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
BLACK,TRIM1#,2#,4#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62597DCLIP
62630PPANEL ASSY, QUARTER TRIM, REAR RH
BLACK,TRIM1#,2#,4#
62640KCLIP(FOR QUARTER TRIM REAR PANEL)
62640PPANEL ASSY, QUARTER TRIM, REAR LH
BLACK,TRIM1#,2#,4#
67910PLATE ASSY, DOOR SCUFF, RH
BLACK,TRIM1#,2#,4#
67917CPLATE, REAR DOOR SCUFF, RH
BLACK,TRIM1#,2#,4#
67918EPLATE, REAR DOOR SCUFF, LH
BLACK,TRIM1#,2#,4#
67920PLATE ASSY, DOOR SCUFF, LH
BLACK,TRIM1#,2#,4#
9046709203
main90467-09203
39 parts on this diagram · 3 diagrams in section
