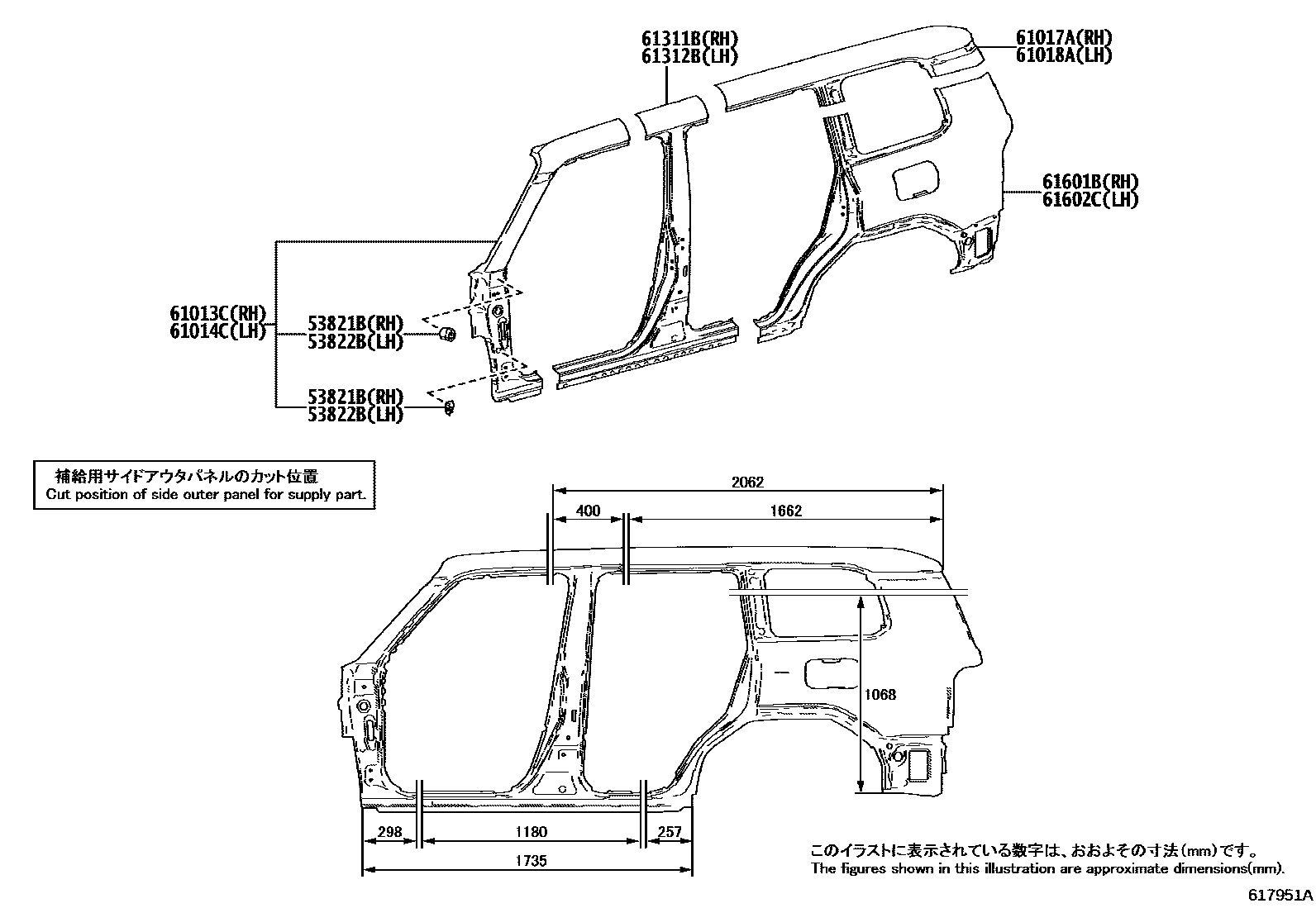

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iVJA252202405

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iVJA252202405

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-60070iVJA252202405

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-60060iVJA252202405

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-60020iVJA252202405

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-60030iVJA252202405

61311BPILLAR, CENTER BODY, OUTER RH

main61311-60210iVJA252202405

61312BPILLAR, CENTER BODY, OUTER LH

main61312-60270iVJA252202405

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-60B10iVJA252202405

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-60B00iVJA252202405

10 parts on this diagram · 3 diagrams in section
