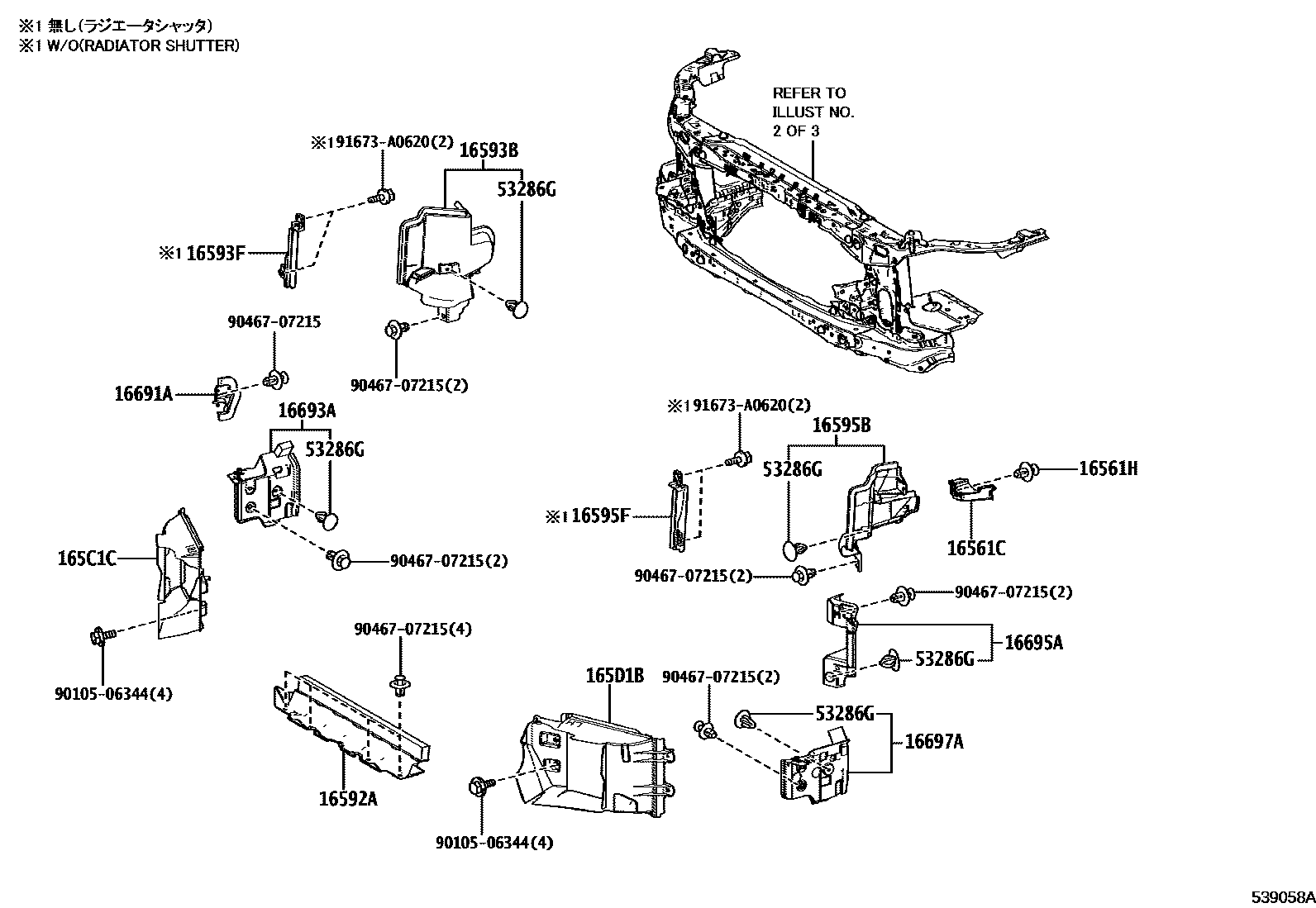

FRONT FENDER APRON & DASH PANEL

0001 1������� 0002 1�����������&���������� 0003 1���������

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-25040iV35..VJA252¥490202405

16561HCLIP, RADIATOR TO SUPPORT SEAL

main90467-07215iV35..VJA252¥80202405

16592AGUIDE, RADIATOR AIR, NO.3

main16592-75010iV35..VJA252¥3,850202405

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-70070iV35..VJA252¥3,850202405

16593FGUIDE, RADIATOR AIR, NO.1 RH

main16593-70030iV35..VJA252¥1,310202405

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-70080iV35..VJA252¥3,220202405

16595FGUIDE, RADIATOR AIR, NO.1 LH

main16595-70040iV35..VJA252¥1,360202405

165C1CDUCT, SUB-RADIATOR, RH NO.1

main165C1-70080iV35..VJA252¥4,710202405

165D1BDUCT, SUB-RADIATOR, LH NO.1

main165D1-70060iV35..VJA252¥4,740202405

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-70030iV35..VJA252¥780202405

16693APLATE, RADIATOR SIDE AIR GUIDE, REAR RH

main16693-70010iV35..VJA252¥2,280202405

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-70020iV35..VJA252¥2,190202405

16697APLATE, RADIATOR SIDE AIR GUIDE, REAR LH

main16697-70010iV35..VJA252¥2,160202405

53286GCLIP, RADIATOR SIDE AIR SEAL

main90467-10005-C0iVJA252202405

BLACK

sub90467-10005¥90

sub90467-06017¥110

9010506344

main90105-06344¥60

9046707215

main90467-07215¥80

91673A0620

main91673-A0620¥60

17 parts on this diagram · 3 diagrams in section
