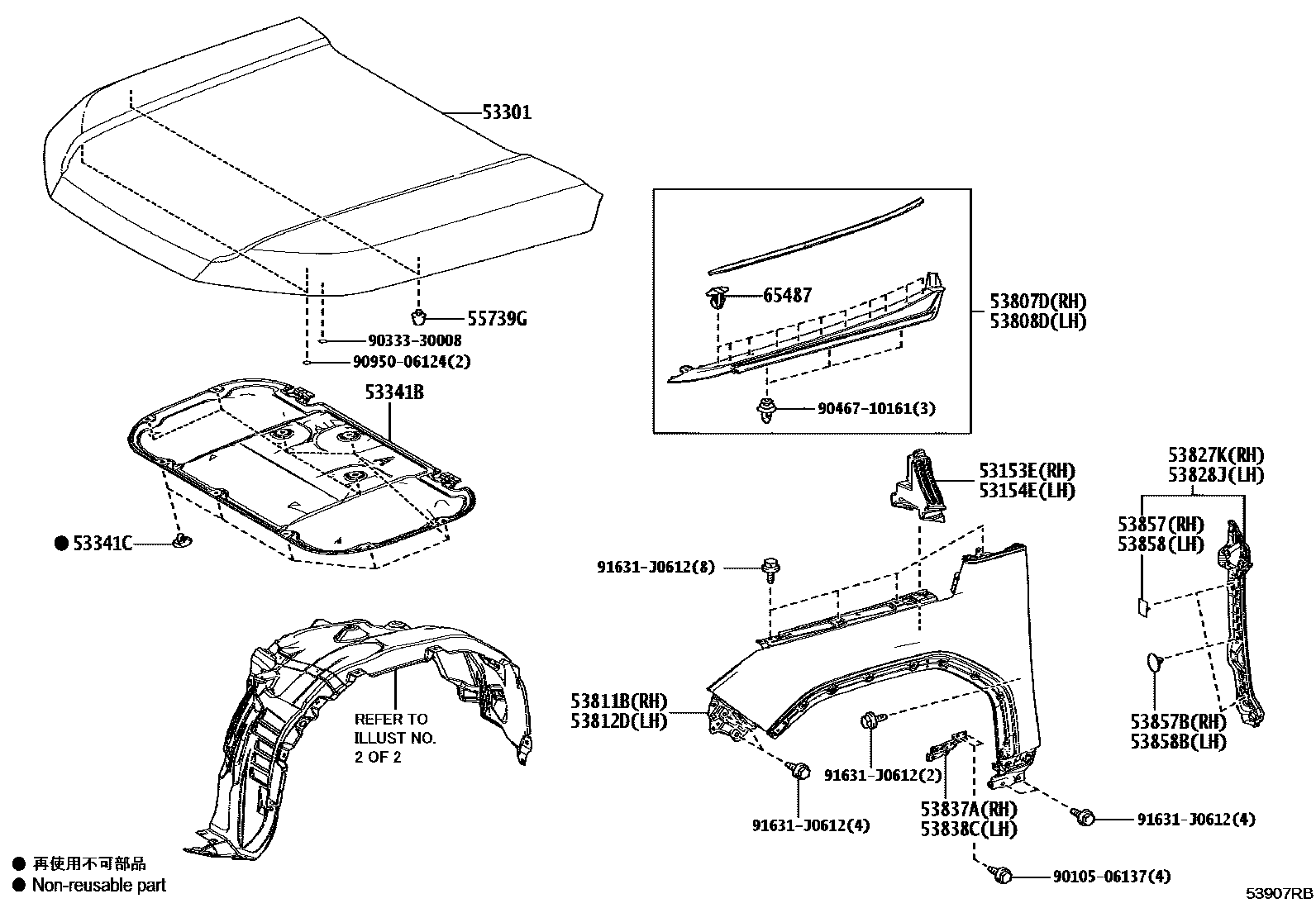

HOOD & FRONT FENDER

0001 1 0002 1

53153EGUIDE, FRONT SIDE AIR

main53153-60040iVJA252202405

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-60050iVJA252202405

53301HOOD SUB-ASSY

main53301-60820iVJA252202405

53341BINSULATOR, HOOD

main53341-60550iVJA252202405

53341CCLIP(FOR HOOD INSULATOR)

main90467-07229iVJA252202405

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-60230iVJA252202405

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-60180iVJA252202405

53811BPANEL, FRONT FENDER, RH

main53811-60E10iVJA252202405-202408

sub53811-60E11

main53811-60E11iVJA252202409

53812DPANEL, FRONT FENDER, LH

main53812-60E10iVJA252202405-202408

sub53812-60E11

main53812-60E11iVJA252202409

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-60070iVJA252202405

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-60100iVJA252202405

53837ABRACKET, FRONT SIDE PANEL, NO.2

main53837-60070iVJA252202405

53838CBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-60100iVJA252202405

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iVJA252202405

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iVJA252202405

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iVJA252202405

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iVJA252202405

55739GSTOPPER, HOOD

main55739-60040iVJA252202405

65487CLIP, CORNER PROTECTOR

main65487-60010iVJA252202405

9010506137

main90105-06137

9033330008

main90333-30008

9046710161

main90467-10161

9095006124

main90950-06124

91631J0612

main91631-J0612

24 parts on this diagram · 2 diagrams in section
