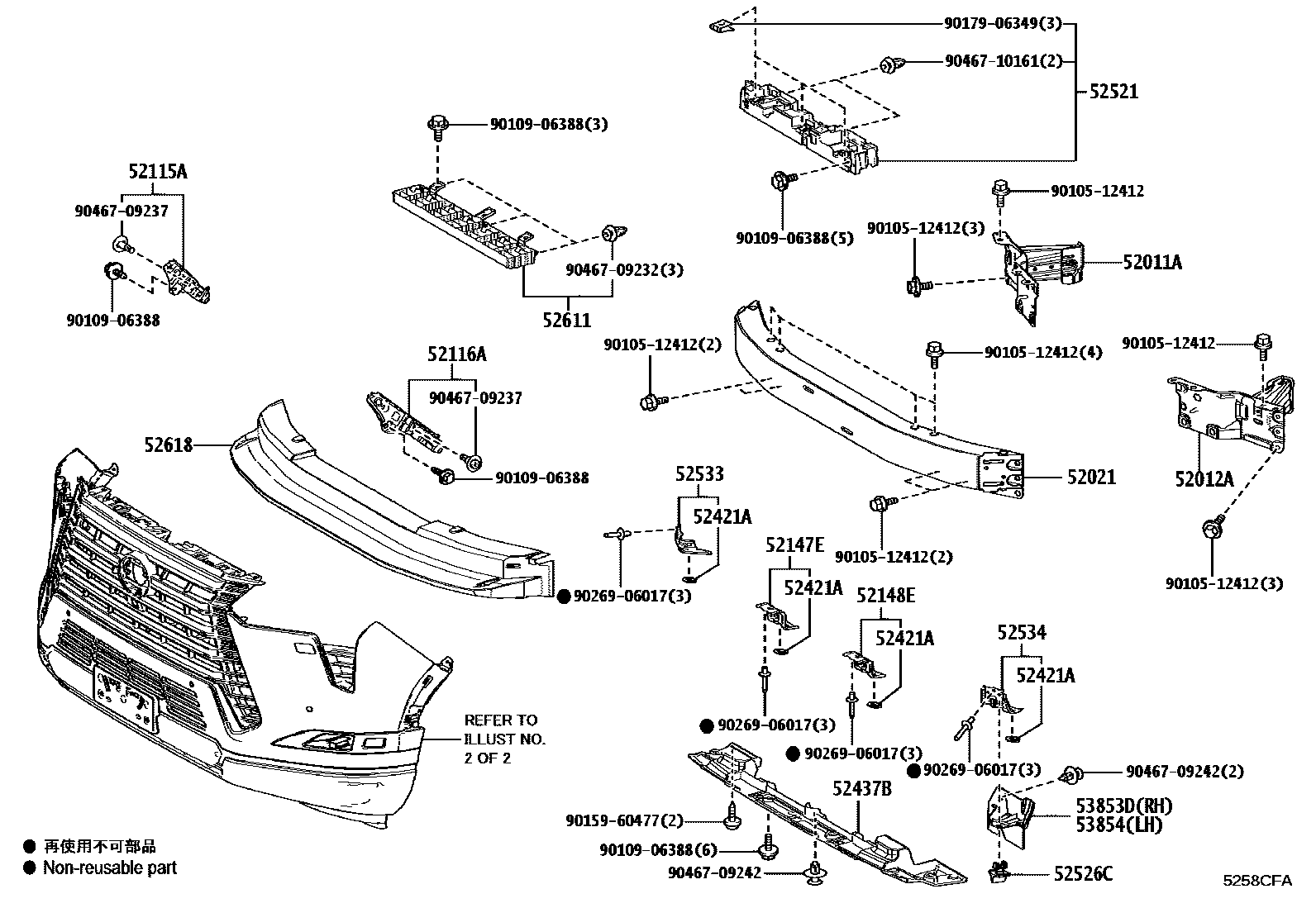

FRONT BUMPER & BUMPER STAY

0001 1 0002 1���������+������� 0003 1 0004 1���������+�������

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-60050iVJA252202405

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-60050iVJA252202405

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60250iVJA252202405

main52021-60320iVJA252202405

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-60380iVJA252202405

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-60380iVJA252202405

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-60170iVJA252202405

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52148-60170iVJA252202405

52421APAD, FRONT BUMPER

main52421-60191iVJA252202405

52437BCOVER, FRONT BUMPER GUARD BASE

main52437-60120iVJA252202405

main52437-60130iVJA252202405

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-60260iVJA252202405

52526CRETAINER, FRONT BUMPER, LOWER

main52526-60030iVJA252202405

52533BRACKET, FRONT BUMPER RETAINER, NO.1

main52533-60100iVJA252202405

52534BRACKET, FRONT BUMPER RETAINER, NO.2

main52534-60080iVJA252202405

52611ABSORBER, FRONT BUMPER ENERGY

main52611-60220iVJA252202405

52618ABSORBER, FRONT BUMPER, LOWER

main52618-60100iVJA252202405

53853DPAD, FRONT WHEEL OPENING EXTENSION, NO.3

main53853-60070iVJA252202405

53854PAD, FRONT WHEEL OPENING EXTENSION, NO.4

main53854-60020iVJA252202405

9010512412

main90105-12412

9010906388

main90109-06388

9015960477

main90159-60477

9017906349

main90179-06349

9026906017

main90269-06017

9046709232

main90467-09232

9046709237

main90467-09237

9046709242

main90467-09242

9046710161

main90467-10161

26 parts on this diagram · 4 diagrams in section
