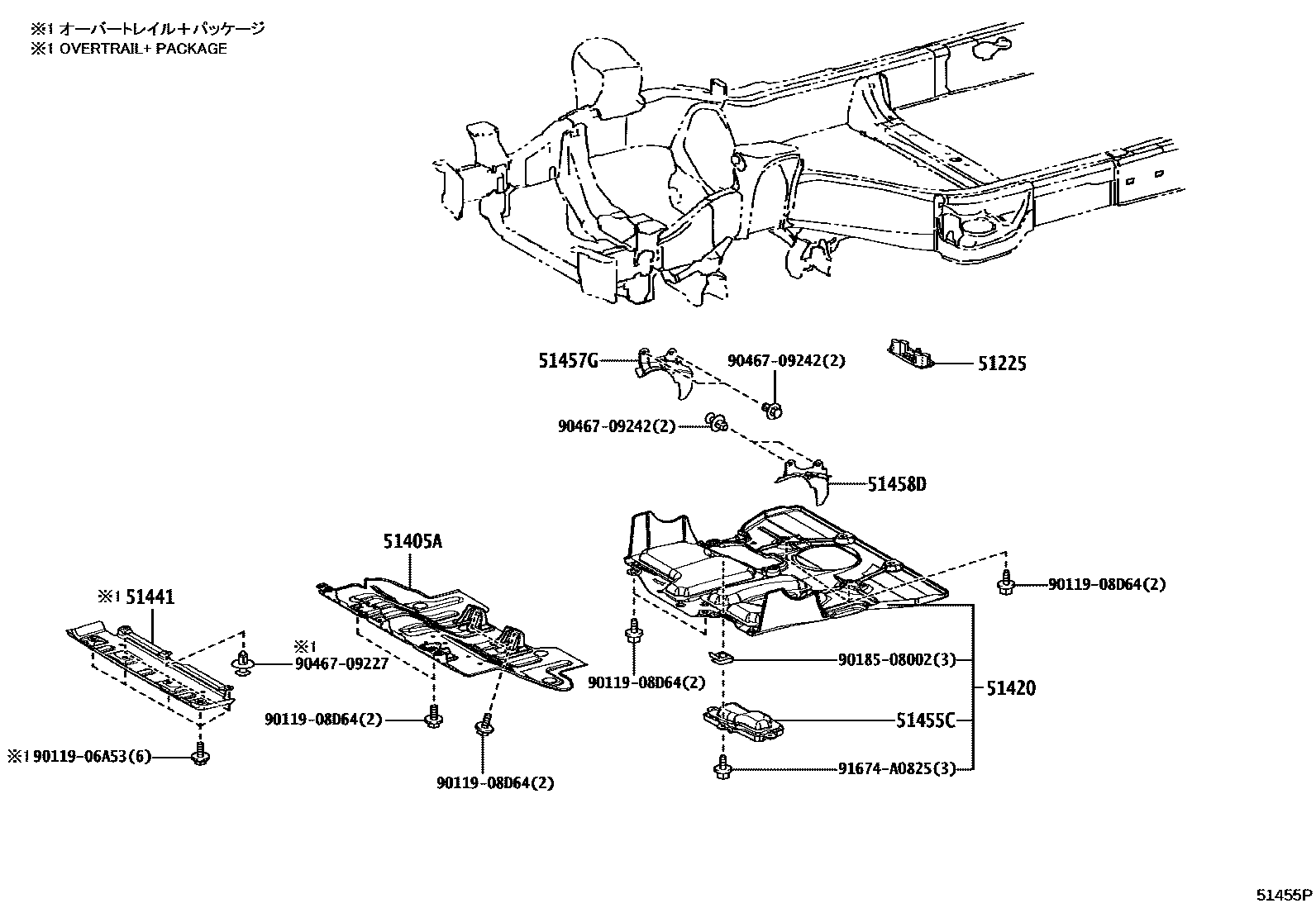

SUSPENSION CROSSMEMBER & UNDER COVER

51225COVER, ENGINE MOUNTING HOLE, NO.3

main51225-60020iVJA252202405

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60260iVJA252202405

51420COVER ASSY, ENGINE UNDER, NO.2

main51420-60180iVJA252202405

51441COVER, ENGINE UNDER, NO.1

main51441-60360

51455CSEAL, ENGINE UNDER COVER, NO.2

main51466-60060iVJA252202405

51457GSEAL, FRAME UNDER, NO.2 RH

main51457-60050iVJA252202405

51458DSEAL, FRAME UNDER, NO.2 LH

main51458-60050iVJA252202405

9011906A53

main90119-06A53

9011908D64

main90119-08D64

9018508002

main90185-08002

9046709227

main90467-09227

9046709242

main90467-09242

91674A0825

main91674-A0825

13 parts on this diagram · 1 diagram in section
