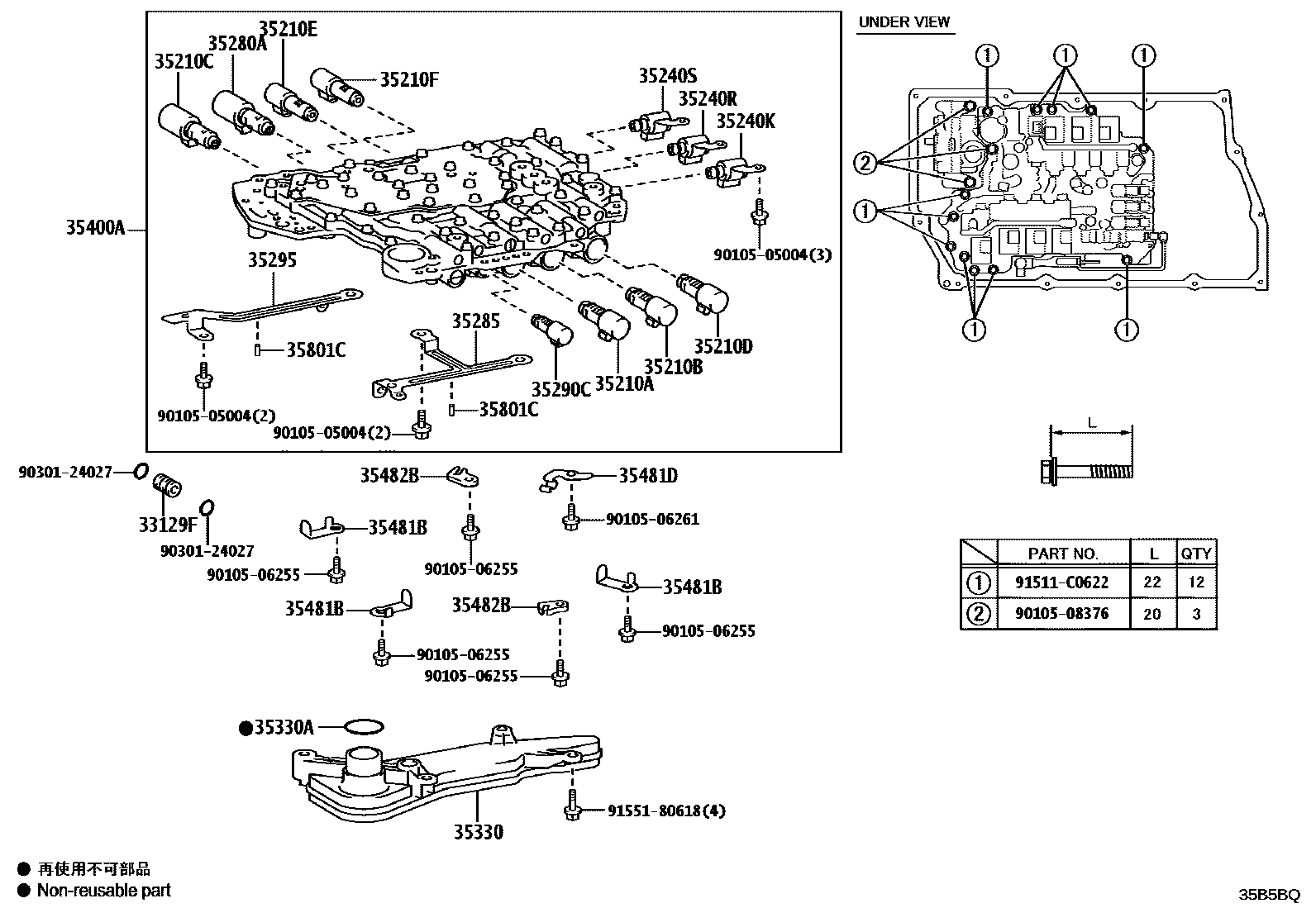

VALVE BODY & OIL STRAINER (ATM)
33129FPIPE, TRANSMISSION OIL
35210AVALVE, SOLENOID(SL1)
35210BVALVE, SOLENOID(SL3)
35210CVALVE, SOLENOID(SL2)
35210DVALVE, SOLENOID(SL4)
35210EVALVE, SOLENOID(SL5)
35210FVALVE, SOLENOID(SL6)
35240KSOLENOID ASSY, TRANSMISSION 3WAY(SC1)
35240RSOLENOID ASSY, TRANSMISSION 3WAY(SR)
35240SSOLENOID ASSY, TRANSMISSION 3WAY(SL)
35280AVALVE, SOLENOID(SLU)
35285PLATE, SOLENOID LOCK
35290CVALVE, SOLENOID(SLT)
35295PLATE, SOLENOID LOCK, NO.2
35330STRAINER ASSY, VALVE BODY OIL
35330ARING, O (FOR OIL STRAINER)
35400ABODY ASSY, TRANSMISSION VALVE W/SOLENOID
35481BCLAMP, VALVE BODY WIRE HARNESS
35481DCLAMP, VALVE BODY WIRE HARNESS, NO.2
35482BCLAMP, TEMPERATURE SENSOR
35801CPIN, STRAIGHT
9010505004
main90105-05004
9010506255
main90105-06255
9010506261
main90105-06261
9010508376
main90105-08376
9030124027
main90301-24027
91511C0622
main91511-C0622
9155180618
main91551-80618
28 parts on this diagram · 2 diagrams in section
