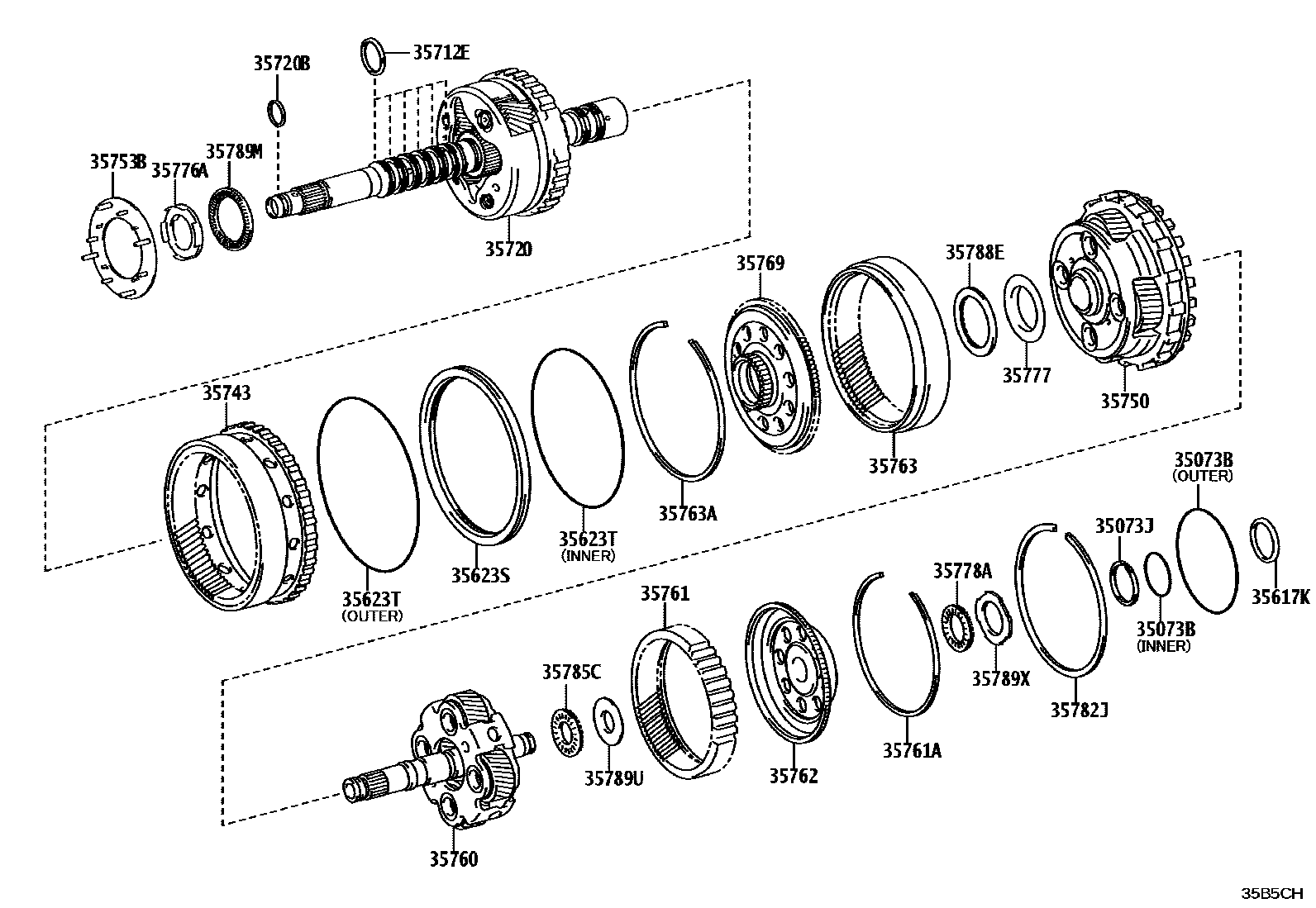

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35073BRING, O (FOR OUTPUT SHAFT)

main90301-41009iVJA252202405

main90301-99263iVJA252202405

35073JRING, HOLE SNAP (FOR OUTPUT SHAFT)

main90520-43010iVJA252202405

35617KRING, CLUTCH DRUM OIL SEAL

main35617-60030iVJA252202405

35623SPISTON,1ST & REVERSE BRAKE

main35623-60090iVJA252202405

35623TRING, O(FOR 1ST & REVERSE BRAKE PISTON)

main90301-99261iVJA252202405

main90301-99262iVJA252202405

35712ERING, INPUT SHAFT OIL SEAL

main35617-11090×6iVJA252202405

35720GEAR ASSY, FRONT PLANETARY

main35720-60110iVJA252202405

35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)

main35617-11030iVJA252202405

35743GEAR, FRONT PLANETARY RING

main35743-60080iVJA252202405

35750GEAR ASSY, CENTER PLANETARY

main35750-60040iVJA252202405

35753BRECEIVER, FRONT PLANETARY OIL

main35753-60020iVJA252202405

35760GEAR ASSY, REAR PLANETARY

main35760-60170iVJA252202405

35761GEAR, REAR PLANETARY RING

main35761-60070iVJA252202405

35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)

main90520-99206iVJA252202405

35762FLANGE, REAR PLANETARY RING GEAR

main35762-60050iVJA252202405

35763GEAR, CENTER PLANETARY RING

main35763-60030iVJA252202405

35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)

main90520-99199iVJA252202405

35769FLANGE, PLANETARY RING GEAR, CTR

main35769-60020iVJA252202405

35776ARACE, THRUST BEARING, NO.6

main35776-60020iVJA252202405

35777RACE, THRUST BEARING, NO.7

main35777-60030iVJA252202405

35778ABEARING, THRUST NEEDLE ROLLER

main90374-30020iVJA252202405

35782JRING, SNAP

main90520-99205iVJA252202405

35785CBEARING, THRUST NEEDLE ROLLER

main90374-22013iVJA252202405

35788EBEARING, THRUST NEEDLE ROLLER

main90374-39012iVJA252202405

35789MBEARING, THRUST NEEDLE ROLLER

main90374-45004iVJA252202405

35789URACE, THRUST BEARING

main35789-60170iVJA252202405

35789XRACE, THRUST BEARING

main35789-60180iVJA252202405

27 parts on this diagram · 1 diagram in section
