MANIFOLD
1201
12601FCOVER SUB-ASSY, ENGINE, NO.1
12602ECOVER SUB-ASSY, ENGINE, NO.2
1703
17203BELBOW SUB-ASSY, COMPRESSOR INLET
17204ELBOW SUB-ASSY, COMPRESSOR INLET, NO.2
17275BELBOW, COMPRESSOR OUTLET, NO.1
17277GASKET, COMPRESSOR OUTLET
17285AELBOW, COMPRESSOR OUTLET, NO.2
17304ATUBE SUB-ASSY, AIR, RH
17309DTUBE SUB-ASSY, AIR, LH
17311DUCT, AIR INLET, NO.1
17312DDUCT, AIR INLET, NO.2
17341JCLAMP, HOSE
17341MHOSE, AIR, NO.1
17341NCLAMP OR CLIP(FOR AIR HOSE, NO.1)
17342MHOSE, AIR, NO.2
17343NHOSE, AIR, NO.3
17343PCLAMP OR CLIP(FOR AIR HOSE, NO.3)
17344LHOSE, AIR, NO.4
17345MHOSE, AIR, NO.5
17346GHOSE, AIR, NO.6
17368GSUPPORT, AIR TUBE, NO.1
17369BSUPPORT, AIR TUBE, NO.2
17376CGASKET, AIR TUBE
17670BVALVE ASSY, AIR BY-PASS
17962BRACKET, COOL AIR INLET
9010508506
main90105-08506
9011906A28
main90119-06A28
9014860058
main90148-60058
9046080006
main90460-80006
9167180616
main91671-80616
9611110670
main96111-10670
9613741501
main96137-41501

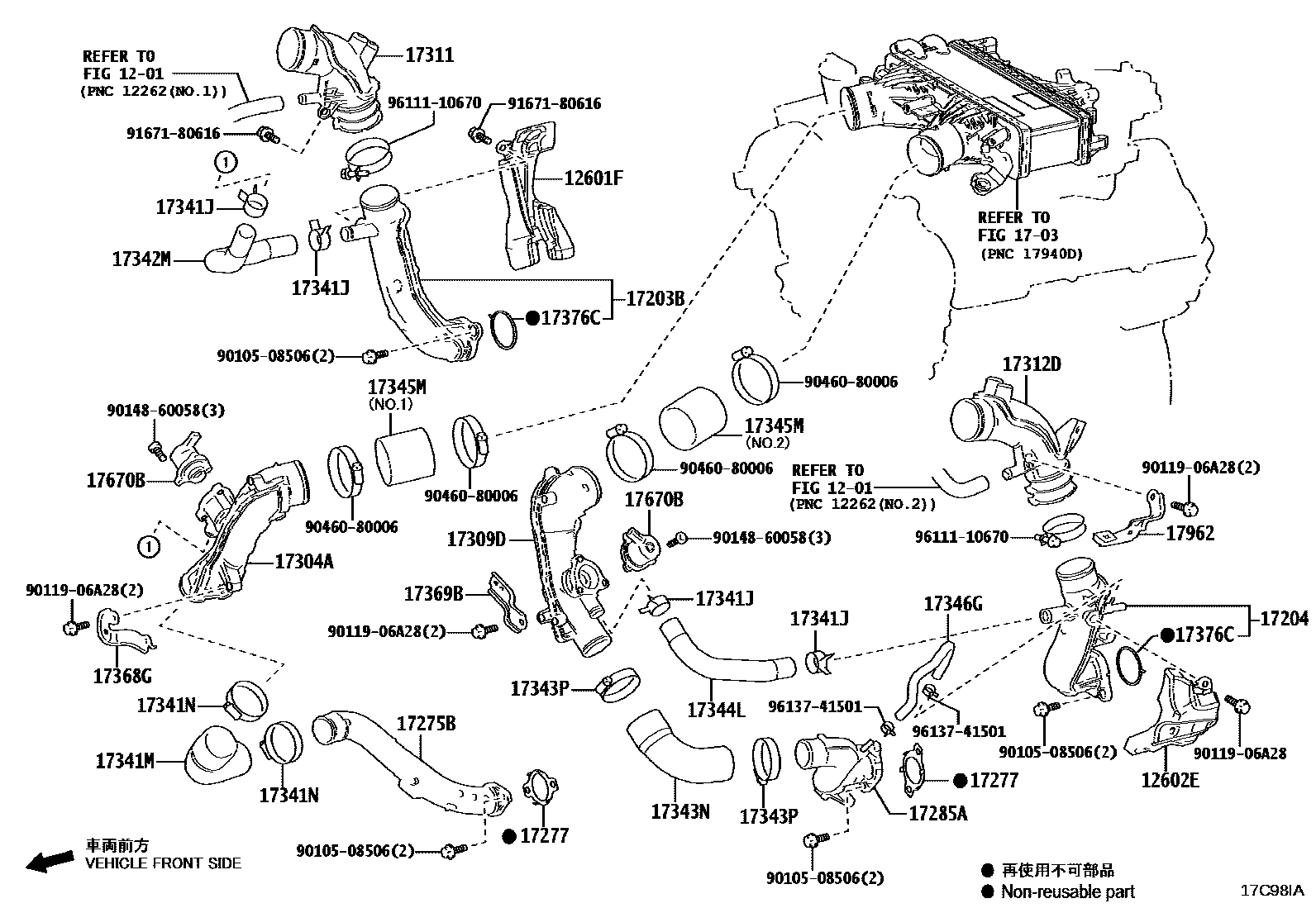

34 parts on this diagram · 4 diagrams in section
