WATER PUMP

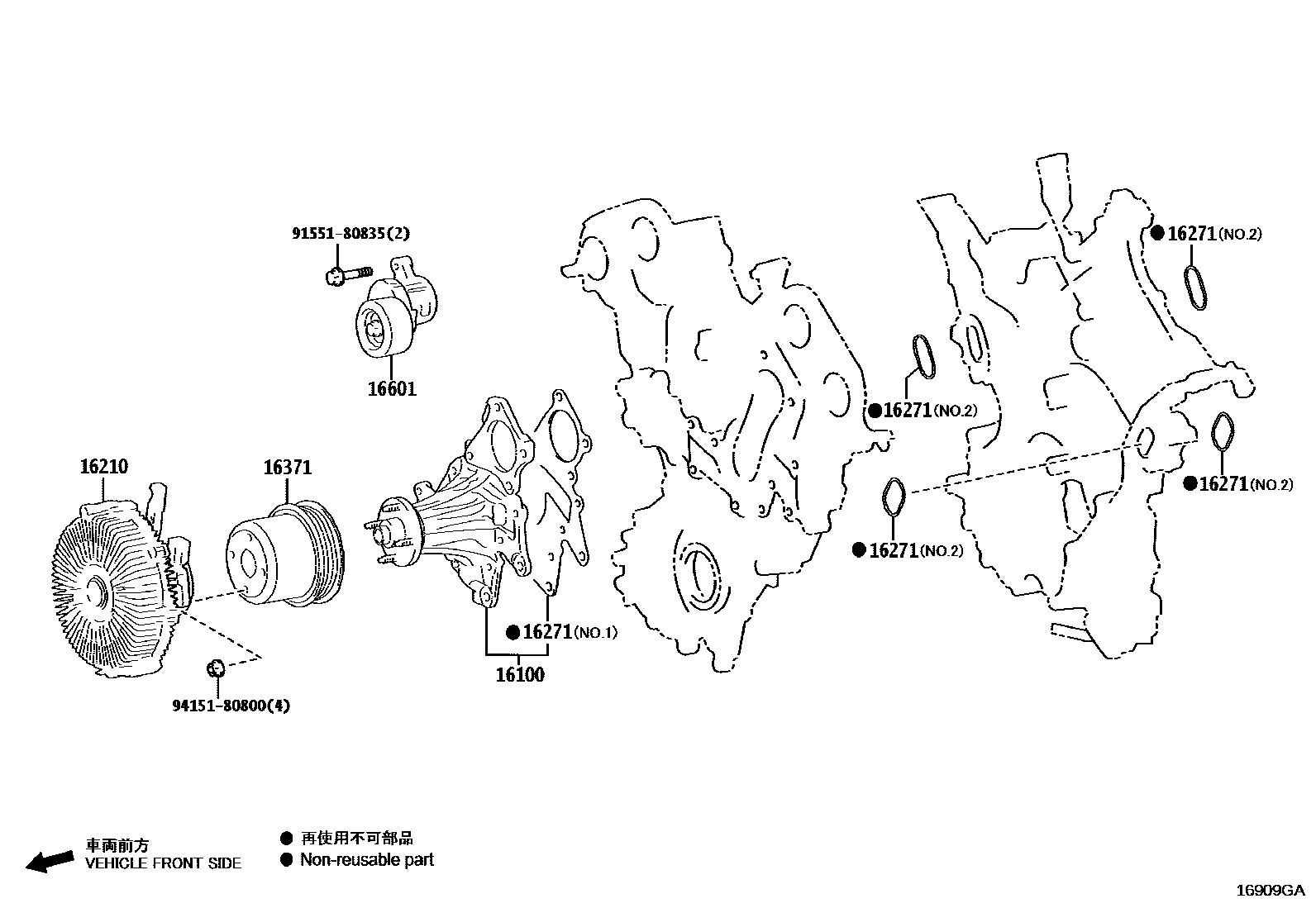

Parts diagram

16100PUMP ASSY, ENGINE WATER

main16100-79525i202405

16210COUPLING ASSY, FLUID

main16210-70110i202405-202407

main16210-70111i202408

16271GASKET, WATER PUMP

main16271-70020×4i202405

main16271-70030i202405

16371PULLEY, FAN

main16371-0W010i202405

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16610-70010i202405

9155180835

main91551-80835

9415180800

main94151-80800

7 parts on this diagram · 1 diagram in section
