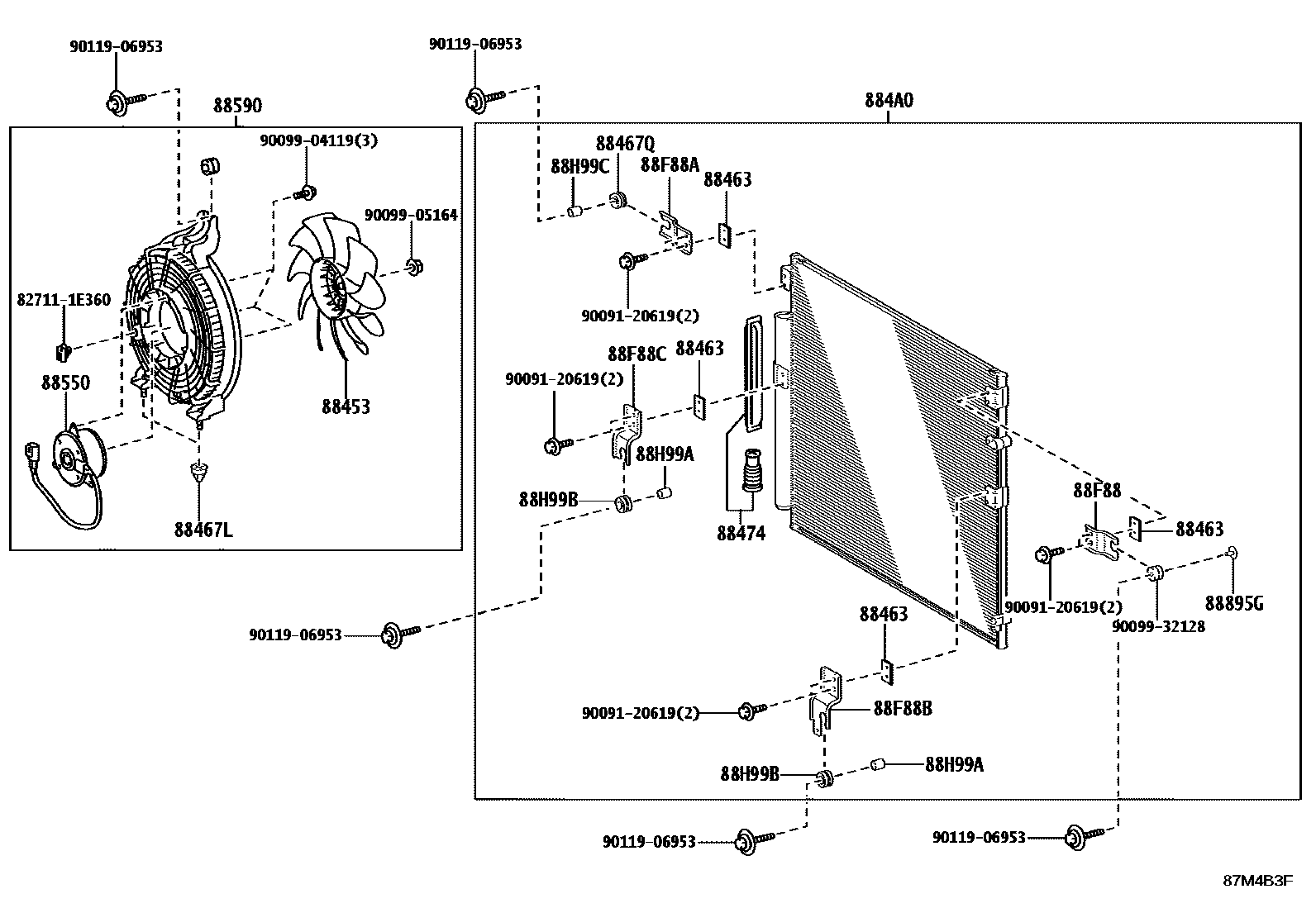

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1������ & ��� 0002 1������ & ��� 0003 1���� �� (���������������) 0004 1���� �� (���������������) 0005 1���� �� (���������������) 0006 1���� �� (���������������) 0007 1��

88453FAN, COOLING (FOR CONDENSER)

main88453-26040iGDJ250;TRJ250..07S;TRJ250..05S..T202404

88463BRACKET, COOLER CONDENSER, NO.1

main88463-37370iGDJ250,TRJ250202404

88467LCUSHION, COOLER, NO.1

main88467-60010iGDJ250;TRJ250..07S;TRJ250..05S..T202404

88467QBUSH, NO.1

main88899-60680iGDJ250202404

88474DRYER, COOLER

main88474-12010iGDJ250,TRJ250202404

884A0CONDENSER ASSY, COOLER

main884A0-60070iTRJ250202404

main884A0-60110iGDJ250202404

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-26120iGDJ250202404

main88550-60130iTRJ250..07S;TRJ250..05S..T202404

88590BLOWER ASSY, W/SHROUD

main88590-60111iTRJ250..07S;TRJ250..05S..T202404

main88590-60130iGDJ250202404

88895GBUSH

main88895-89102iGDJ250202404

88F88BRACKET, CONDENSER, NO.1

main88688-60C40iTRJ250202404

main88688-60G20iGDJ250202404

88F88ABRACKET, CONDENSER, NO.2

main88688-60C50iTRJ250202404

main88688-60G30iGDJ250202404

88F88BBRACKET, CONDENSER, NO.3

main88688-60C60iTRJ250202404

main88688-60G40iGDJ250202404

88F88CBRACKET, CONDENSER, NO.4

main88688-60C70iTRJ250202404

main88688-60G50iGDJ250202404

88H99ABUSH, CONDENSER BRACKET, NO.1

main88899-60530iTRJ250202404

main88899-60650iGDJ250202404

88H99BBUSH, CONDENSER BRACKET, NO.2

main88899-60540iTRJ250202404

main88899-60660iGDJ250202404

88H99CBUSH, CONDENSER BRACKET, NO.3

main88899-60550iTRJ250202404

main88899-60670iGDJ250202404

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009120619

main90091-20619

9009904119

main90099-04119

9009905164

main90099-05164

9009932128

main90099-32128

9011906953

main90119-06953

22 parts on this diagram · 7 diagrams in section
