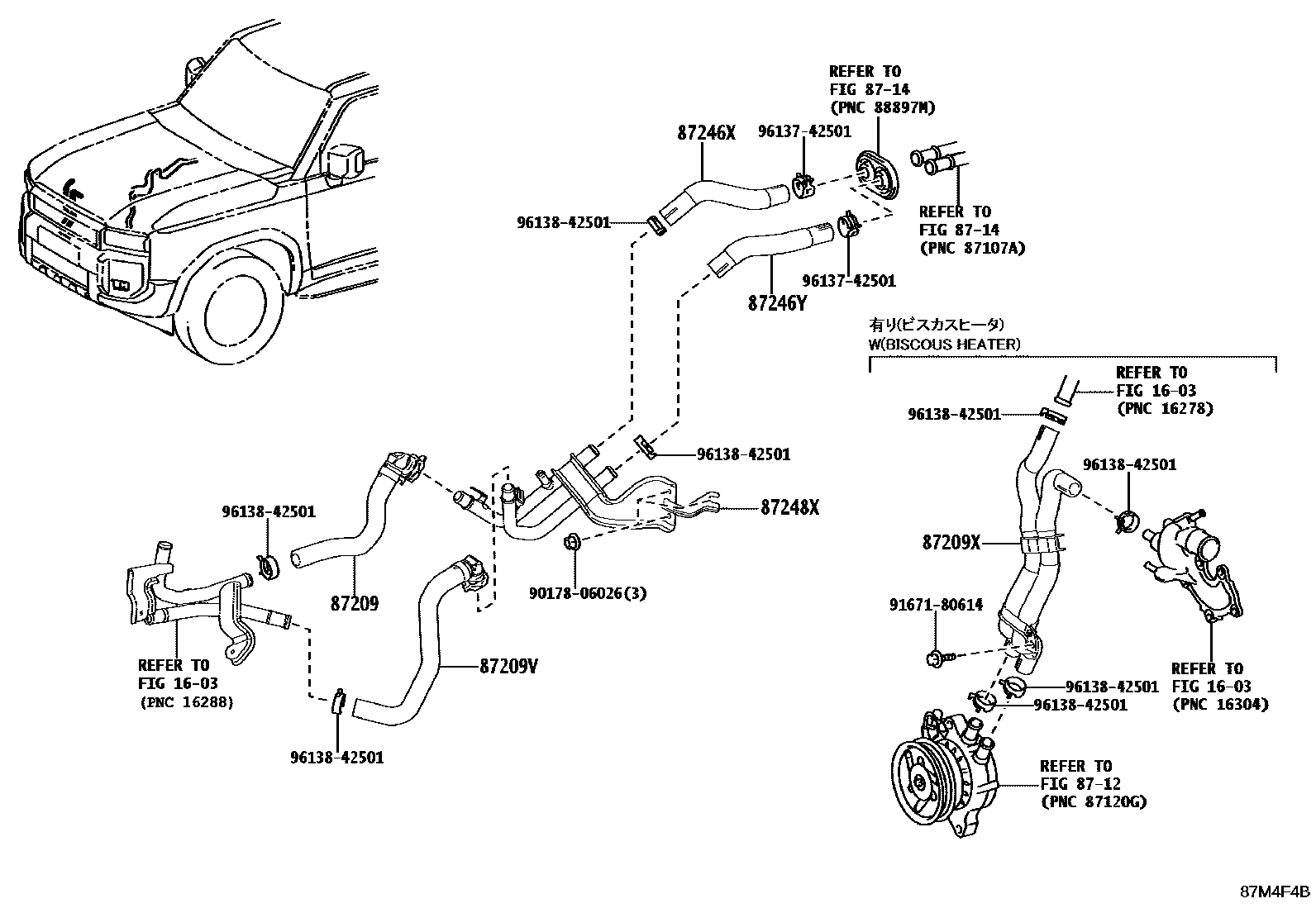

HEATING & AIR CONDITIONING - WATER PIPING

0001 1����,��(������) 0002 1����,��(������) 0003 1����,��(������) 0004 1����,��(������) 0005 1��(1/2) 0006 1��(2/2)

1603

8712

8714

87209HOSE SUB-ASSY, WATER

main87209-60R50iTRJ250202404

main87209-60S10iGDJ250202404

87209VHOSE SUB-ASSY, WATER, NO.2

main87209-60R60iTRJ250202404

main87209-60S20iGDJ250202404

87209XHOSE SUB-ASSY, WATER, NO.4

main87209-60N70iGDJ250202404

87246XHOSE, HEATER WATER

main87243-60470iGDJ250202404

87246YHOSE, HEATER WATER

main87243-60480iGDJ250202404

87248XPIPE, HEATER WATER

main87248-60F70iTRJ250..07S;TRJ250..05S..T202404

main87248-60F90iTRJ250..05S..R202404

main87248-60J50iGDJ250..07S;GDJ250..05S..T202404

main87248-60J70iGDJ250..05S..R202404

9017806026

main90178-06026

9167180614

main91671-80614

9613742501

main96137-42501

9613842501

main96138-42501

13 parts on this diagram · 6 diagrams in section
