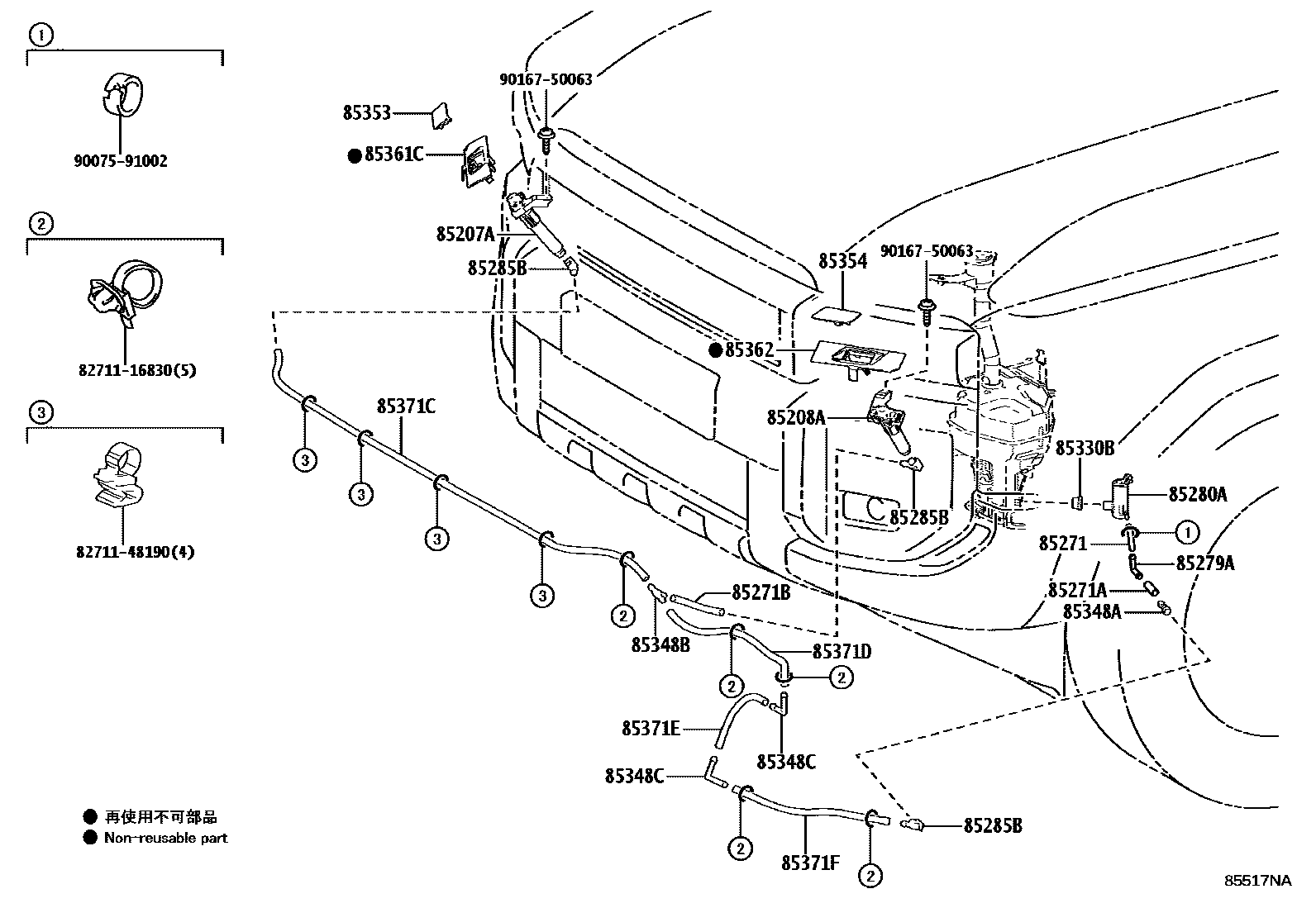

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85279AJOINT, HEADLAMP CLEANER HOSE
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85285BJOINT, HEADLAMP CLEANER NOZZLE NO.1
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85353COVER, HEADLAMP WASHER, RH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
DK.GRAY,1L7
BLACK,202
ATTITUDE BLACK MC.,218
AVANT-GARDE BRONZE ME.,4V8
SAND,5C8
SMOKY BLUE,8X0
85354COVER, HEADLAMP WASHER, LH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
DK.GRAY,1L7
BLACK,202
ATTITUDE BLACK MC.,218
AVANT-GARDE BRONZE ME.,4V8
SAND,5C8
SMOKY BLUE,8X0
85361CBRACKET, WASHER
85362BRACKET, WASHER, NO.2
85371CHOSE, HEADLAMP CLEANER, NO.1
85371DHOSE, HEADLAMP CLEANER, NO.2
85371EHOSE, HEADLAMP CLEANER, NO.3
85371FHOSE, HEADLAMP CLEANER, NO.4
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
8271148190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48190
9007591002
main90075-91002
9016750063
main90167-50063
24 parts on this diagram · 1 diagram in section
