SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 2/2 0003 1����� & ��������� 0004 1�������� 0005 1�������� �������� 0006 1�������� �������� 0007 1��� 0008 1������������ 0009 1����� ����� 0010 1������� 0011 1���� ��� 0012 1�� NO.1 ��� 0013 1��� & ��� 0014 1��� & �������

89424GSENSOR, INLET AIR TEMPERATURE

main89424-60020iGDJ250202404

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-71070iGDJ250202404

89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4

main89425-60260iGDJ250202404

89439DBRACKET, SENSOR, NO.1

main8946A-60180iGDJ250202404

89439JBRACKET, SENSOR, NO.2

main8946A-60190iGDJ250202404

89463ASENSOR, NITROGEN OXIDES

main89463-60100iGDJ250202404

89463CSENSOR, NITROGEN OXIDES, NO.1

main89463-60130iGDJ250202404

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iGDJ250202404

8946A60240BRACKET, EXHAUST SENSOR CLAMP

main8946A-60240

8946A60260BRACKET, EXHAUST SENSOR CLAMP

main8946A-60260

8946A60280BRACKET, EXHAUST SENSOR CLAMP

main8946A-60280

9043012221

main90430-12221

9167180616

main91671-80616

9167380820

main91673-80820

91674A0820

main91674-A0820

9415180600

main94151-80600

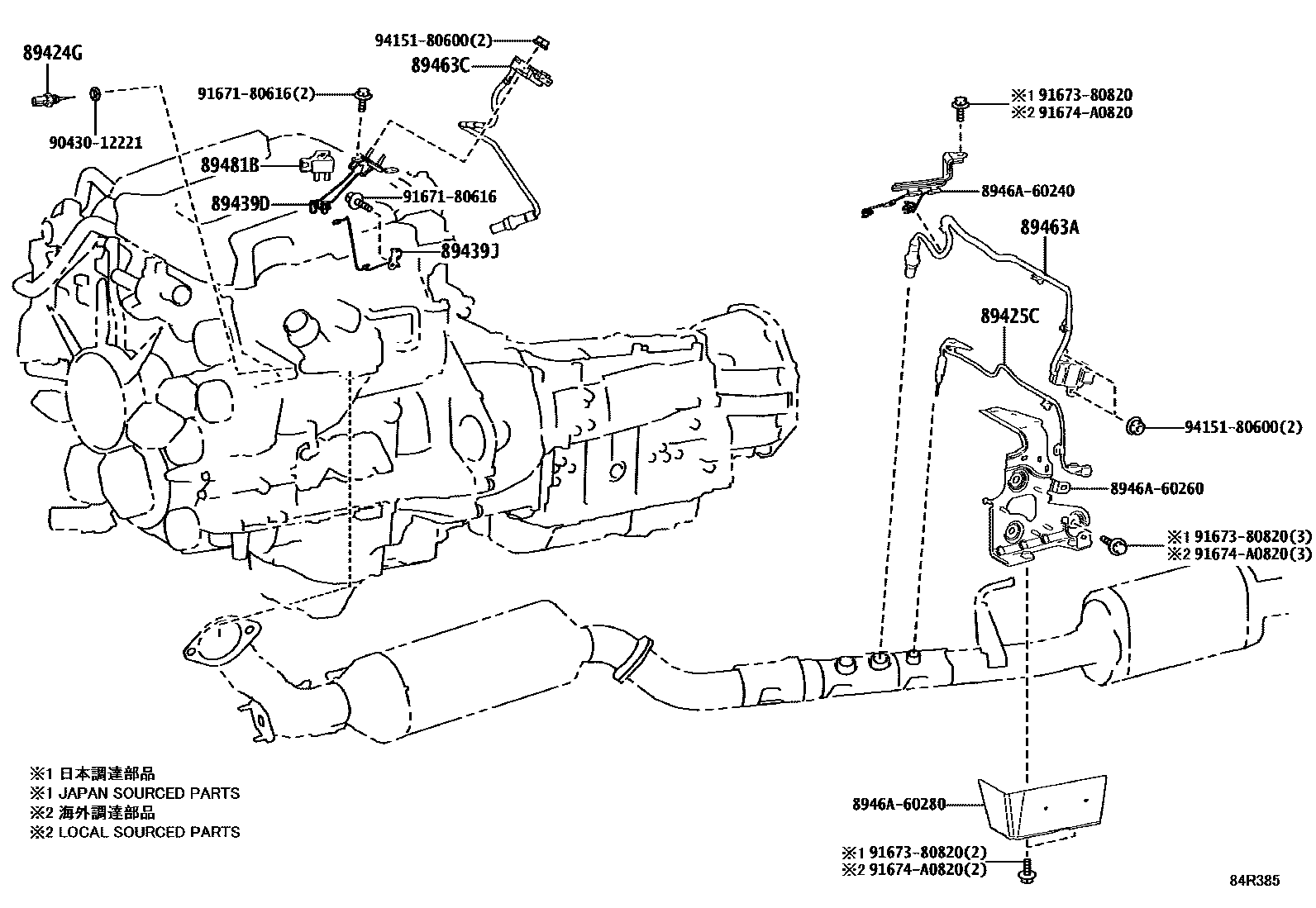

16 parts on this diagram · 14 diagrams in section
