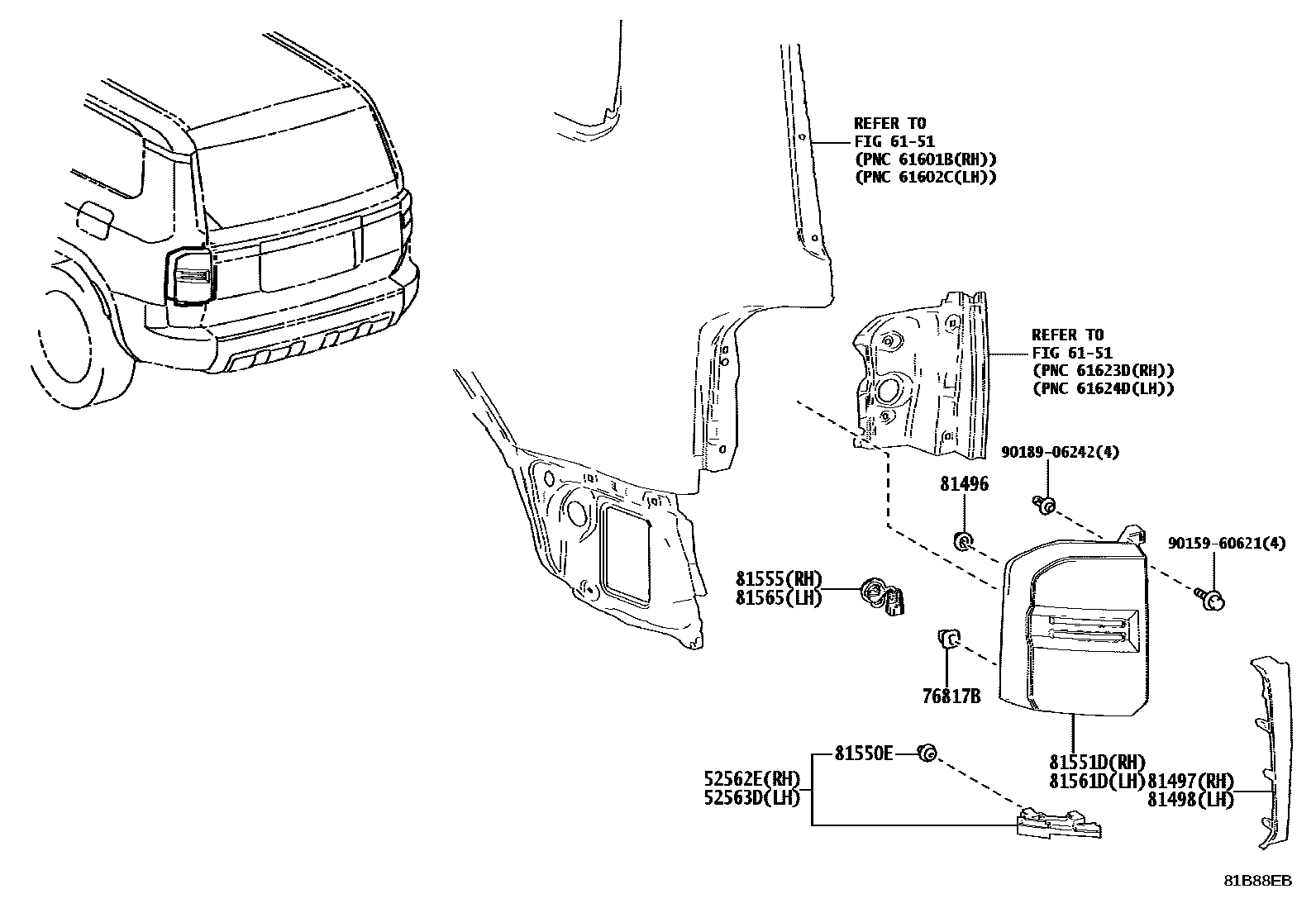

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-60140iGDJ250,TRJ250202404

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-60140iGDJ250,TRJ250202404

6151

76817BCLIP, REAR LAMP

main76817-26040iGDJ250,TRJ250202404

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iGDJ250,TRJ250202404

81497COVER, REAR COMBINATION LAMP, RH

main81497-60060iGDJ250,TRJ250202404

81498COVER, REAR COMBINATION LAMP, LH

main81498-60060iGDJ250,TRJ250202404

81550ECLIP(FOR REAR COMBINATION LAMP)

main90467-09203iGDJ250,TRJ250202404

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60D00iGDJ250,TRJ250202404

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60D00iGDJ250,TRJ250202404

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60D70iGDJ250,TRJ250202404

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-60D00iGDJ250,TRJ250202404

9015960621

main90159-60621

9018906242

main90189-06242

14 parts on this diagram · 1 diagram in section
