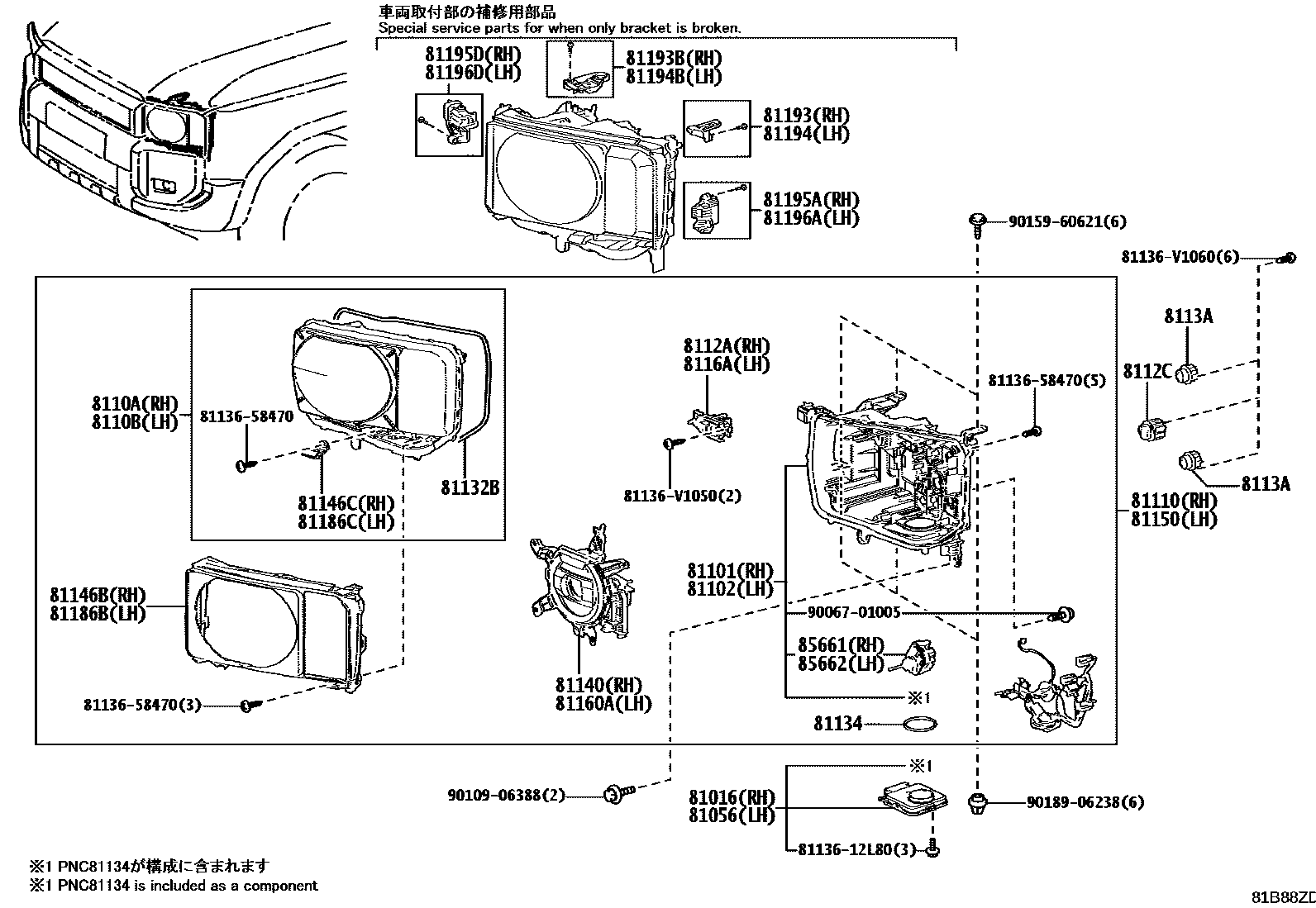

HEADLAMP
81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1
81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1
81101HOUSING SUB-ASSY, HEADLAMP, RH
81102HOUSING SUB-ASSY, HEADLAMP, LH
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
8112CSOCKET, HEADLAMP CLEARANCE LED
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
8113ALED, HEADLAMP FRONT TURN SIGNAL
81140UNIT ASSY, HEADLAMP LED, RH
81146BFITTING, HEADLAMP, NO.1 RH
81146CFITTING, HEADLAMP, NO.2 RH
81150HEADLAMP ASSY, LH
81160AUNIT ASSY, HEADLAMP LED, LH
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
81186BFITTING, HEADLAMP, NO.1 LH
81186CFITTING, HEADLAMP, NO.2 LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
8113612L80PROTECTOR, HEADLAMP, NO.1 RH
main81136-12L80
8113658470PROTECTOR, HEADLAMP, NO.1 RH
main81136-58470
81136V1050PROTECTOR, HEADLAMP, NO.1 RH
main81136-V1050
81136V1060PROTECTOR, HEADLAMP, NO.1 RH
main81136-V1060
9006701005
main90067-01005
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
38 parts on this diagram · 3 diagrams in section
