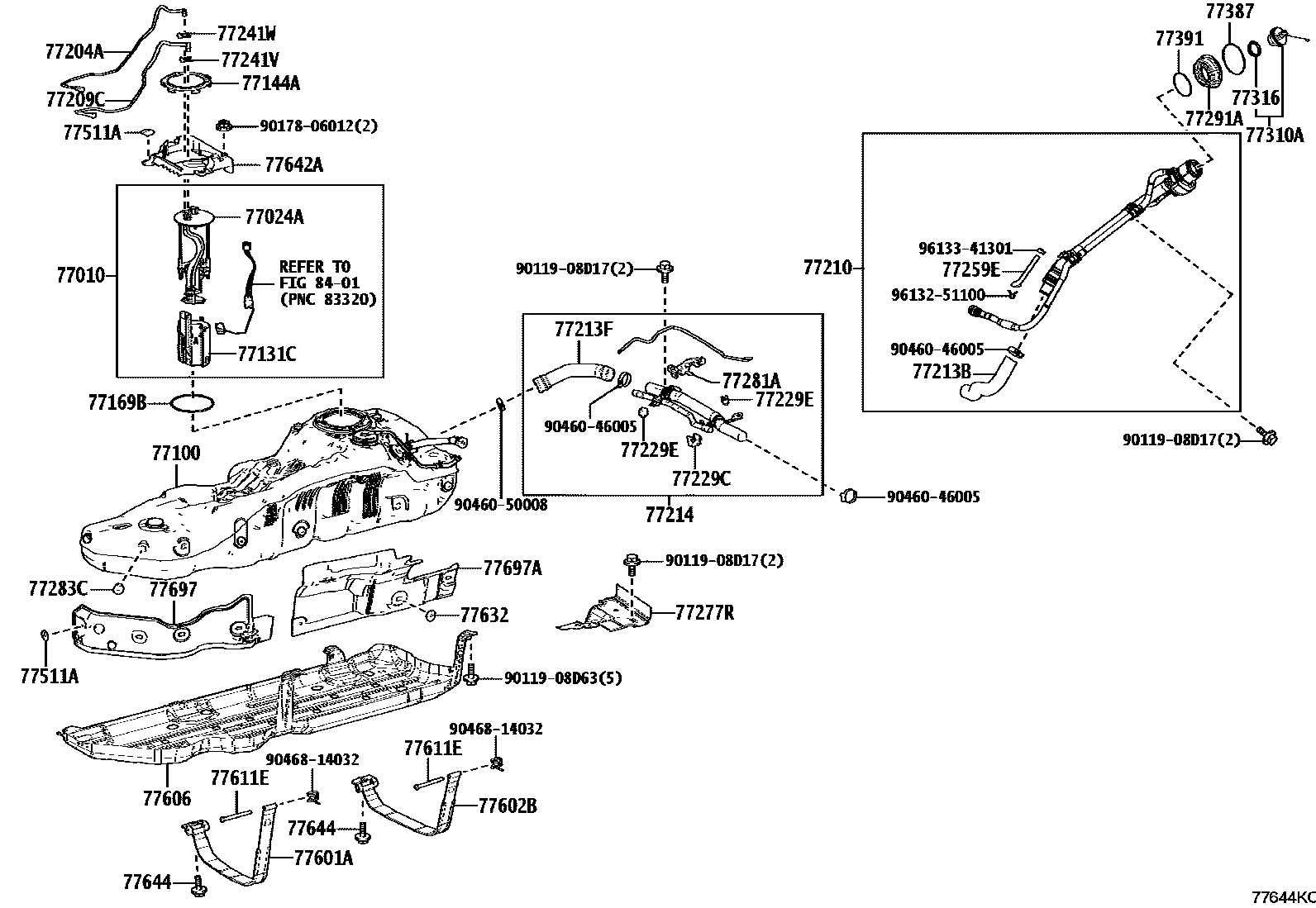

FUEL TANK & TUBE

0001 1�������� 0002 1�������� 0003 1���������� 0004 1���������� 0005 1��������������

77010TUBE ASSY, FUEL TANK VENT

main77010-60330iGDJ250202404

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-60500iGDJ250202404

main77024-60520iTRJ250202404

77100TANK ASSY, FUEL

main77001-60D80iTRJ250202404

main77001-60E10iGDJ250202404

77131CSUB-TANK, FUEL, NO.1

main77131-60220iTRJ250202404

main77131-60250iGDJ250202404

77144ARETAINER, FUEL PUMP GAUGE

main77144-30030iGDJ250,TRJ250202404

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47040iGDJ250,TRJ250202404

77204ATUBE, FUEL TANK RETURN

main77204-60180iTRJ250202404

main77204-60200iGDJ250202404

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-60830iGDJ250202404

main77209-60A80iTRJ250202404

77210PIPE ASSY, FUEL TANK FILLER

main77210-60510iTRJ250202404

main77210-60530iGDJ250202404

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-60450iTRJ250202404

main77213-60500iGDJ250202404

77213FHOSE, FUEL TANK TO FILLER PIPE

main77213-60420iGDJ250202404

main77213-60480iTRJ250202404

77214PIPE, FUEL TANK FILLER

main77210-60550iTRJ250202404

main77210-60610iGDJ250202404

77229CCLAMP, BREATHER TUBE

main77229-60090iGDJ250,TRJ250202404

77229ECLAMP, BREATHER TUBE

main77229-33090×2iGDJ250202404

77241VCLIP, TUBE JOINT

main77241-60560iGDJ250202404

77241WCLIP, TUBE JOINT

main77241-60550iTRJ250202404

77259EHOSE, FUEL

main77259-60L70iTRJ250202404

main77259-60L90iGDJ250202404

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-60200iGDJ250202404

main77277-60220iTRJ250202404

77281ACLAMP, FUEL FILLER PIPE

main77281-60590iGDJ250202404

77283CBRACKET, FUEL TANK PROTECTOR

main77283-60040×5iGDJ250,TRJ250202404

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-60160iGDJ250,TRJ250202404

77310ACAP ASSY, FUEL TANK

main77300-12030iGDJ250202404

main77300-48020iTRJ250202404

77316GASKET, FUEL TANK CAP

main77316-52040iGDJ250202404

main77316-75020iTRJ250202404

77387RING, FUEL INLET BOX

main77391-60080iGDJ250,TRJ250202404

77391RING, FUEL INLET BOX

main77391-12020iGDJ250,TRJ250202404

77511ABRACKET, FUEL TANK

main77512-47030×5iGDJ250,TRJ250202404

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-60430iGDJ250,TRJ250202404

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-60170iGDJ250,TRJ250202404

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60270iGDJ250,TRJ250202404

77611EPIN, FUEL TANK BAND

main77653-35040×2iGDJ250,TRJ250202404

77632BRACKET, FUEL TANK, NO.2

main77512-35140×5iGDJ250,TRJ250202404

77642APROTECTOR, FUEL TANK, NO.2

main77642-60080iGDJ250,TRJ250202404

77644BOLT, FUEL TANK

main90119-10A27×2iGDJ250,TRJ250202404

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-60020iTRJ250202404

main77697-60080iGDJ250202404

77697AINSULATOR, FUEL TANK HEAT, NO.2

main77697-60030iGDJ250,TRJ250202404

8401

9011908D17

main90119-08D17

9011908D63

main90119-08D63

9017806012

main90178-06012

9046046005

main90460-46005

9046050008

main90460-50008

9046814032

main90468-14032

9613251100

main96132-51100

9613341301

main96133-41301
