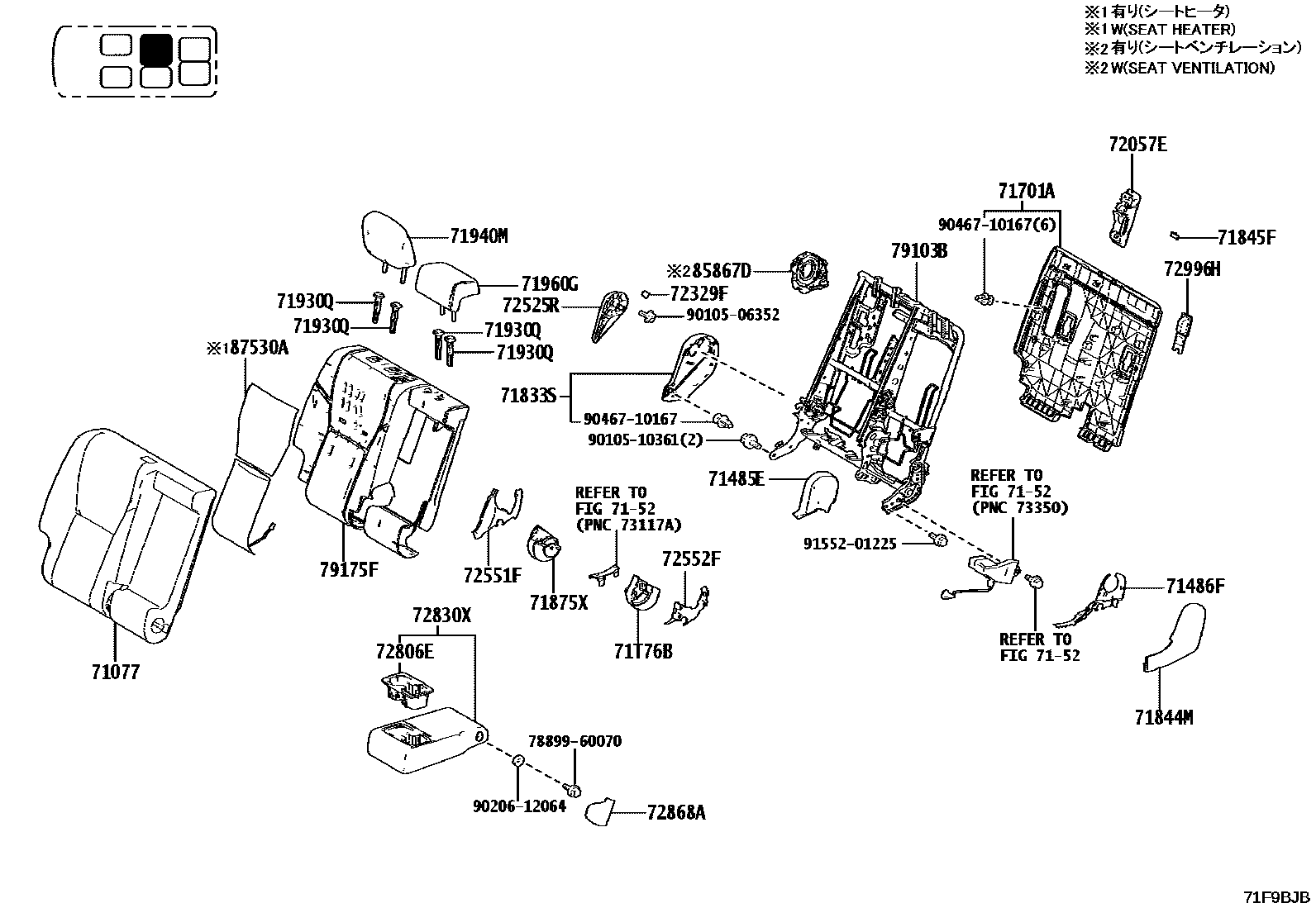

REAR SEAT & SEAT TRACK

0001 1NO.1���(6:4),��� ������� 0002 1NO.1���(6:4),��� �������� 0003 1NO.1���(6:4),���� ������� 0004 1NO.1���(6:4),���� �������� 0005 1NO.1��� ������������ 0006 1NO.2���(�����������),��� ����0007 1NO.2���(�����������),��� ����0008 1NO.2���(�����������),���� ���0009 1NO.2���(�����������),���� ���0010 1NO.2���(�����������),��� ����0011 1NO.2���(�����������),��� ����0012 1NO.2���(�����������),���� ���0013 1NO.2���(�����������),���� ���

71077COVER SUB-ASSY, REAR NO.1 SEATBACK, RH

main71077-60T20-B3iGDJ250,TRJ250..R202404

CHATEAU,TRIM1#

main71077-60T20-C7iGDJ250,TRJ250..R202404

BLACK,TRIM2#

main71077-60X90-B2iGDJ250,TRJ250..T202404

CHATEAU,TRIM1#

main71077-60X90-C6iGDJ250,TRJ250..E,T202404

BLACK,TRIM2#

main71077-60X90-E4iGDJ250,TRJ250..E202404

DK.CHESTNUT,TRIM4#

main71077-60Y10-C6iGDJ250..A,F202404

BLACK,TRIM2#

main71077-60Y10-E4iGDJ250..A,F202404

DK.CHESTNUT,TRIM4#

71485ECOVER, REAR SEAT HINGE

main71485-60130-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main71485-60130-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#,4#

main71485-60130-C0iGDJ250,TRJ250..T202404

BLACK,TRIM2#,4#

71486FCOVER, REAR SEAT HINGE, LH

main71486-60110-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main71486-60110-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#,4#

main71486-60110-C0iGDJ250,TRJ250..T202404

BLACK,TRIM2#,4#

7152

71701ABOARD SUB-ASSY, REAR SEATBACK, RH

main71701-60350iGDJ250,TRJ250202404

71833SCOVER, REAR SEAT RECLINING, NO.1 RH

main71833-60360-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main71833-60360-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#,4#

main71833-60360-C0iGDJ250,TRJ250..T202404

BLACK,TRIM2#,4#

71844MCOVER, REAR SEAT RECLINING, NO.2 LH

main71834-60360-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main71834-60360-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#,4#

main71834-60360-C0iGDJ250,TRJ250..T202404

BLACK,TRIM2#,4#

71845FCAP, REAR SEAT COVER

main71845-60040-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main71845-60040-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#,4#

main71845-60040-C0iGDJ250,TRJ250..T202404

BLACK,TRIM2#,4#

71875XCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-60310iGDJ250,TRJ250202404

71930QSUPPORT ASSY, REAR SEAT HEADREST

main71930-28050-C0iGDJ250,TRJ250..T202404

main71930-28050-C0iGDJ250,TRJ250..T202404

main71930-28050-C0iGDJ250,TRJ250..T202404

main71931-28060-C0iGDJ250,TRJ250..T202404

main71931-28060-C0iGDJ250,TRJ250..T202404

main71931-28060-C0iGDJ250,TRJ250..T202404

71940MHEADREST ASSY, REAR SEAT

main71940-60D10-B2iGDJ250,TRJ250..R202404

CHATEAU,TRIM1#

main71940-60D10-C4iGDJ250,TRJ250..R202404

BLACK,TRIM2#

main71940-60D20-B2iGDJ250,TRJ250..T202404

CHATEAU,TRIM1#

main71940-60D20-C5iGDJ250,TRJ250..A,E,F,T202404

BLACK,TRIM2#

main71940-60D20-E3iGDJ250,TRJ250..A,E,F202404

DK.CHESTNUT,TRIM4#

71960GHEADREST ASSY, REAR NO.1 SEAT, CENTER

main71960-60A00-B3iGDJ250,TRJ250..R202404

CHATEAU,TRIM1#

main71960-60A00-C5iGDJ250,TRJ250..R202404

BLACK,TRIM2#

main71960-60A10-B2iGDJ250,TRJ250..T202404

CHATEAU,TRIM1#

main71960-60A10-C4iGDJ250,TRJ250..A,E,F,T202404

BLACK,TRIM2#

main71960-60A10-E3iGDJ250,TRJ250..A,E,F202404

DK.CHESTNUT,TRIM4#

71T76BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-60380iGDJ250,TRJ250202404

72057ELEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

main72057-60230-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main72057-60230-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#,4#

main72057-60230-C0iGDJ250,TRJ250..T202404

BLACK,TRIM2#,4#

72329FCOVER, REAR SEAT ADJUSTER BOLT

main72329-60140-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main72329-60140-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#,4#

main72329-60140-C0iGDJ250,TRJ250..T202404

BLACK,TRIM2#,4#

72525RHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-60160-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main72525-60160-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#,4#

main72525-60160-C0iGDJ250,TRJ250..T202404

BLACK,TRIM2#,4#

72551FCOVER, RECLINING LINK, RH NO.1

main72551-60190-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main72551-60190-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#,4#

main72551-60190-C0iGDJ250,TRJ250..T202404

BLACK,TRIM2#,4#

72552FCOVER, RECLINING LINK, LH NO.1

main72552-60170-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main72552-60170-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#,4#

main72552-60170-C0iGDJ250,TRJ250..T202404

BLACK,TRIM2#,4#

72806EHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-78010-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main72806-78010-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#,4#

main72806-78010-C0iGDJ250,TRJ250..T202404

BLACK,TRIM2#,4#

72830XARMREST ASSY, REAR SEAT, CENTER

main72830-60E00-C8iGDJ250,TRJ250..R202404

BLACK/BLACK,TRIM2#

main72830-60E00-C9iGDJ250,TRJ250..R202404

BLACK/CHATEAU,TRIM1#

main72830-60G20-C4iGDJ250,TRJ250..A,E,F,T202404

BLACK/BLACK,TRIM2#

main72830-60G20-C5iGDJ250,TRJ250..T202404

BLACK/CHATEAU,TRIM1#

main72830-60G20-C6iGDJ250,TRJ250..A,E,F202404

BLACK/DK.CHESTNUT,TRIM4#

72868ACOVER, CENTER ARMREST HINGE

main72868-60030-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main72868-60030-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#,4#

main72868-60030-C0iGDJ250,TRJ250..T202404

BLACK,TRIM2#,4#

72996HCOVER, REAR SEATBACK

main72996-60280-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main72996-60280-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#,4#

main72996-60280-C0iGDJ250,TRJ250..T202404

BLACK,TRIM2#,4#

79103BFRAME SUB-ASSY, NO.1 SEATBACK, RH

main71017-60890iGDJ250,TRJ250202404

79175FPAD, NO.1 SEATBACK, RH

main71507-60350iGDJ250,TRJ250..E,T202404

main71507-60360iGDJ250..A,F202404

main71651-60750iGDJ250,TRJ250..R202404

85867DBLOWER, NO.1 SEATBACK CLIMATE CONTROL(FOR RH SEAT)

main85867-60090iGDJ250..A,F202404

87530HEATER ASSY, REAR NO.1 SEATBACK, LH

main87530-60090iGDJ250..A,F202404

87530AHEATER ASSY, REAR NO.1 SEATBACK, RH

main87530-60090iGDJ250..A,F202404

7889960070BOLT, FRONT SEAT

main78899-60070

9010506352

main90105-06352

9010510361

main90105-10361

9020612064

main90206-12064

9046710167

main90467-10167

9155201225

main91552-01225

33 parts on this diagram · 13 diagrams in section
