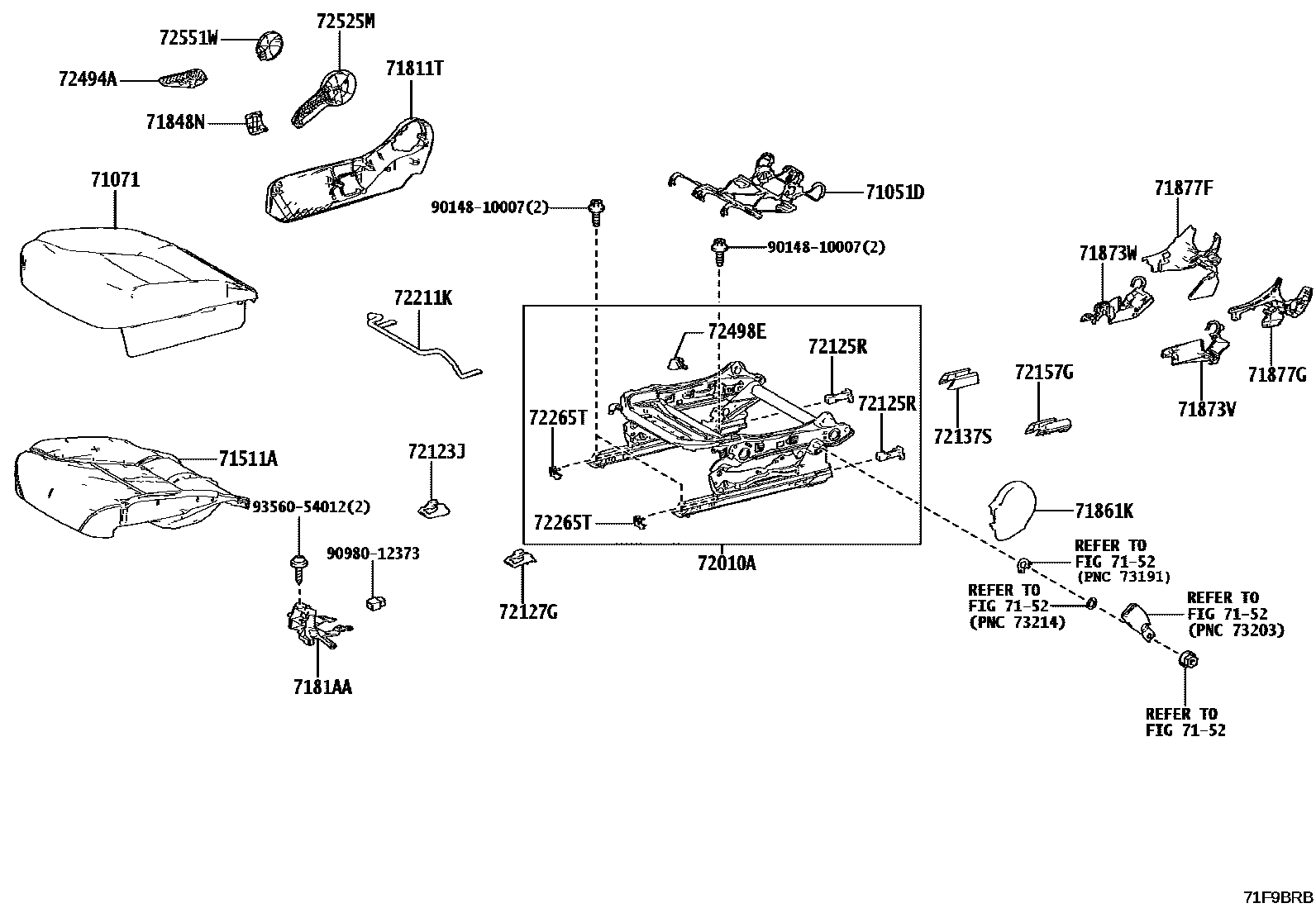

FRONT SEAT & SEAT TRACK

0001 1���������(��������) 0002 1���������(��������) 0003 1����������(��������) 0004 1����������(��������) 0005 1���������(�������) 0006 1���������(�������) 0007 1����������(�������) 0008 1����������(�������)

71051DSPRING SUB-ASSY, FRONT SEAT CUSHION

main71051-47090×2iGDJ250,TRJ250202404

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-60U80-B1iGDJ250,TRJ250..R202404

CHATEAU,TRIM1#

main71071-60U80-C4iGDJ250,TRJ250..R202404

BLACK,TRIM2#

main71071-60V50-B1iGDJ250,TRJ250..T202404

CHATEAU,TRIM1#

main71071-60V50-C5iGDJ250,TRJ250..E,T202404

BLACK,TRIM2#

main71071-60V50-E4iGDJ250,TRJ250..E202404

DK.CHESTNUT,TRIM4#

main71071-60V60-C5iGDJ250..A,F202404

BLACK,TRIM2#

main71071-60V60-E4iGDJ250..A,F202404

DK.CHESTNUT,TRIM4#

71511APAD, FRONT SEAT CUSHION, RH

main71501-60B70iGDJ250,TRJ250..E,T202404

main71501-60B90iGDJ250..A,F202404

main71511-60860iGDJ250,TRJ250..R202404

7152

71811TSHIELD, FRONT SEAT CUSHION, RH

main71811-26510-C0iGDJ250,TRJ250..R202404

BLACK,TRIM1#,2#,4#

main71811-42200-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

7181AAHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-42010iGDJ250,TRJ250..A,E,F,T202404

main7181A-47010iGDJ250,TRJ250..R202404

71848NCAP, FRONT SEAT ADJUSTER COVER, RH NO.1

main71848-42020-C0iGDJ250,TRJ250..R202404

BLACK,TRIM1#,2#,4#

71861KSHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C1iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

71873VSHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-42060iGDJ250,TRJ250202404

71873WSHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER

main71873-60220iGDJ250,TRJ250202404

71877FCOVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)

main71875-60330-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

71877GCOVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

main71875-42100-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

72010AADJUSTER ASSY, FRONT SEAT, RH

main72010-60850iGDJ250,TRJ250..R202404

main72010-60870iGDJ250,TRJ250..E,T202404

main72010-60890iGDJ250..A,F202404

72123JCOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-10100iGDJ250,TRJ250202404

72125RCOVER, SEAT TRACK, UPPER REAR NO.1

main72125-47010×4iGDJ250,TRJ250..R202404

main72125-47020×2iGDJ250..A,F202404

72127GCOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-60150iGDJ250,TRJ250202404

72137SCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iGDJ250,TRJ250202404

72157GCOVER, SEAT TRACK BRACKET, INNER REAR RH

main72157-47080iGDJ250,TRJ250202404

72211KHANDLE, SEAT TRACK ADJUSTING

main72211-60240iGDJ250,TRJ250..R202404

72265TCOVER, SEAT TRACK UPPER RAIL

main72265-47010×4iGDJ250,TRJ250..R202404

main72265-47020×2iGDJ250..A,F202404

72494AHANDLE, FRONT SEAT VERTICAL ADJUSTER, RH

main72494-26020-C0iGDJ250,TRJ250..R202404

BLACK,TRIM1#,2#,4#

72498ECOVER, VERTICAL ADJUSTER BRACKET

main72498-42010iGDJ250,TRJ250..R202404

72525MHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-26160-C0iGDJ250,TRJ250..R202404

BLACK,TRIM1#,2#,4#

72551WCOVER, RECLINING HINGE

main72551-47030-C1iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

9014810007

main90148-10007

9098012373

main90980-12373

9356054012

main93560-54012

27 parts on this diagram · 8 diagrams in section
