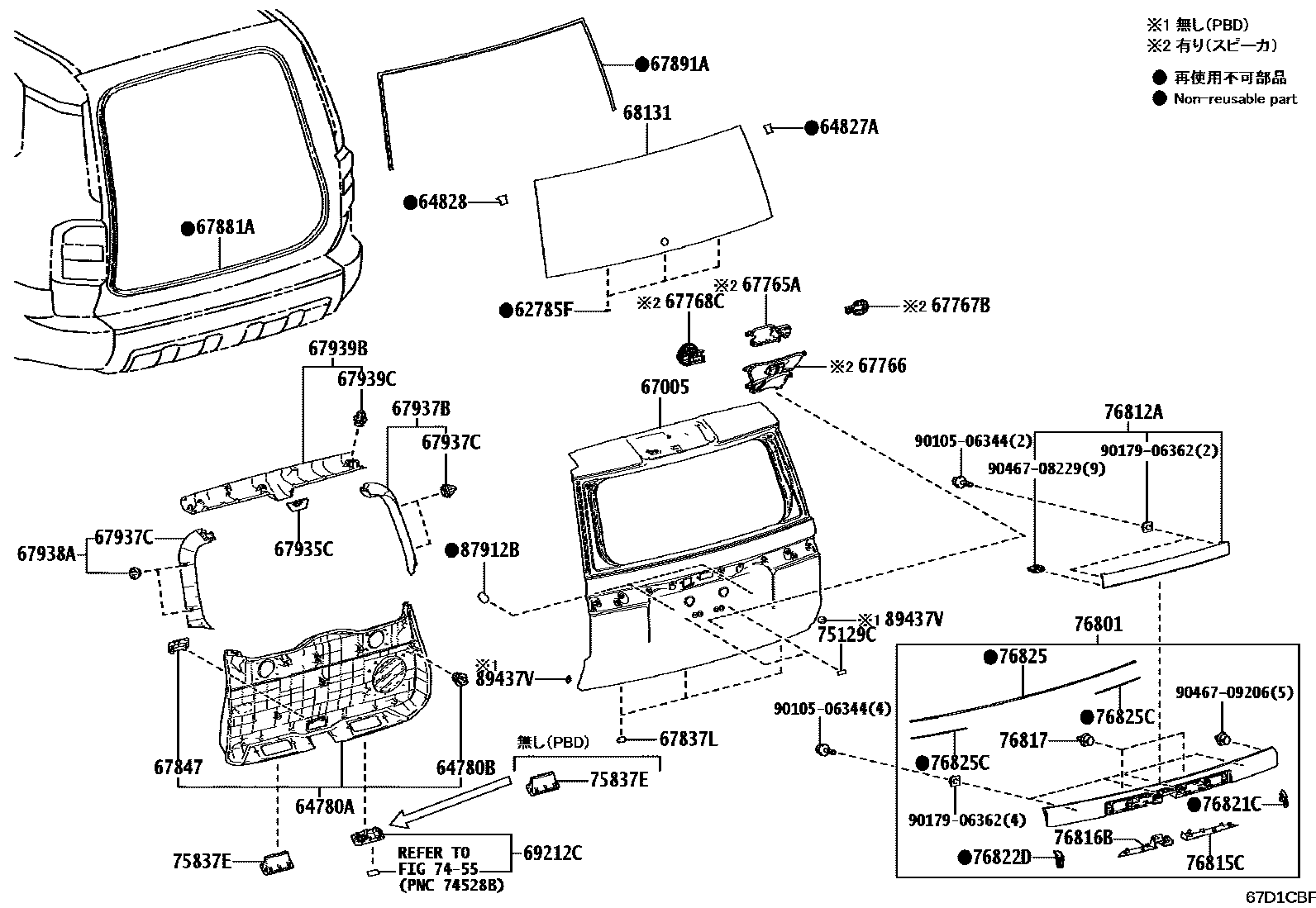

BACK DOOR PANEL & GLASS

0001 1��(��� ���) 0002 1��(��� ���) 0003 1��(��� ���)

62785FSPACER, BACK DOOR GLASS

main62785-35030×3iGDJ250,TRJ250..R202405

main62785-47010×3iGDJ250,TRJ250..R202404-202405

64780APANEL ASSY, BACK DOOR TRIM

main64780-60450-C0iGDJ250,TRJ250..R202404

BLACK,TRIM1#,2#

main64780-60490-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

main64780-60500-C0iGDJ250..T202404

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-09206×16iGDJ250,TRJ250202404

64827ACLIP, BACK WINDOW GLASS, RH

main64827-60140iGDJ250,TRJ250..R202404

64828CLIP, BACK WINDOW GLASS, LH

main64828-60140iGDJ250,TRJ250..R202404

67005PANEL SUB-ASSY, BACK DOOR

main67005-60M30iGDJ250,TRJ250..R202404

main67005-60M80iGDJ250,TRJ250..A,E,F,T202404

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-60020iGDJ250,TRJ250..A,E,F,T202404

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-60030iGDJ250,TRJ250..A,E,F,T202404

67767BCOVER, BACK DOOR SERVICE HOLE, NO.3

main67767-60040iGDJ250,TRJ250..A,E,F,T202404

67768CCOVER, BACK DOOR SERVICE HOLE, NO.4

main67768-60050iGDJ250,TRJ250..A,E,F,T202404

67837LSEAL, DOOR DUST PROOF

main67837-30120×3iGDJ250,TRJ250202404

67847COVER, BACK DOOR SERVICE HOLE, RH

main67847-60150-C0iGDJ250,TRJ250..A,E,F202404

BLACK,TRIM1#,2#

67881AWEATHERSTRIP, BACK DOOR

main67881-60200iGDJ250,TRJ250202404

67891ASEAL, BACK DOOR

main67891-60040iGDJ250,TRJ250..A,E,F,T202404

main67891-60050iGDJ250,TRJ250..R202404

67935CGARNISH, BACK DOOR

main67935-60190iGDJ250,TRJ250..A,E,F,T202404

67937BGARNISH, BACK DOOR SIDE, RH

main67937-60220-C0iGDJ250,TRJ250..R202404

BLACK,TRIM1#,2#,4#

main67937-60230-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

67937CCLIP(FOR BACK DOOR SIDE GARNISH)

main90467-09245×4iGDJ250,TRJ250202404

67938AGARNISH, BACK DOOR SIDE, LH

main67938-60160-C0iGDJ250,TRJ250..R202404

BLACK,TRIM1#,2#,4#

main67938-60170-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

67939BGARNISH, BACK DOOR, CENTER

main67939-60170-C0iGDJ250,TRJ250..R202404

BLACK,TRIM1#,2#

main67939-60200-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

67939CCLIP(FOR BACK DOOR CENTER GARNISH)

main90467-10161×5iGDJ250,TRJ250202404

68131GLASS, BACK DOOR

main68105-60530iGDJ250,TRJ250..A,E,F,T202404

main68105-60904iGDJ250,TRJ250..R202404

69212CHANDLE, BACK DOOR INSIDE

main69291-60060-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

7455

75129CCUSHION, REAR LICENCE PLATE

main75129-30010×2iGDJ250,TRJ250202404

75837ECOVER, BACK DOOR FINISH

main75837-60020-C0iGDJ250,TRJ250..T202404

BLACK,TRIM1#,2#

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-60560-A0iGDJ250,TRJ250..A,R,T202404

SUPER WHITE 2,040

main76801-60560-A1iGDJ250,TRJ250202404

PLATINUM WHITE PEARL MC.,089

main76801-60560-B0iGDJ250,TRJ250..A,R,T202404

DK.GRAY,1L7

main76801-60560-C0iGDJ250,TRJ250202404

BLACK,202

main76801-60560-C1iGDJ250,TRJ250..A,R,T202404

ATTITUDE BLACK MC.,218

main76801-60560-E0iGDJ250,TRJ250202404

AVANT-GARDE BRONZE ME.,4V8

main76801-60560-F0iGDJ250,TRJ250..E202404

SAND,5C8

main76801-60560-J0iGDJ250,TRJ250..E202404

SMOKY BLUE,2ZD ,8X0

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-60400iGDJ250,TRJ250..A,E,F202404

main76812-60450iGDJ250,TRJ250..R,T202404

76815CMOULDING, BACK DOOR OUTSIDE GARNISH, LWR RH

main76815-60030iGDJ250,TRJ250202404

76816BMOULDING, BACK DOOR OUTSIDE GARNISH, LWR LH

main76816-60040iGDJ250,TRJ250202404

76817CLIP, BACK DOOR OUTSIDE GARNISH

main75868-60020×2iGDJ250,TRJ250202404

76821CPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76821-60060iGDJ250,TRJ250202404

76822DPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76822-60080iGDJ250,TRJ250202404

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-60340iGDJ250,TRJ250202404

76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-60350×2iGDJ250,TRJ250202404

87912BPROTECTOR, OUTER MIRROR

main87912-30030×2iGDJ250,TRJ250..A,E,F,T202404

89437VCOVER, SENSOR

main89437-48030×2iGDJ250,TRJ250..R202404

9010506344

main90105-06344

9017906362

main90179-06362

9046708229

main90467-08229

9046709206

main90467-09206

40 parts on this diagram · 3 diagrams in section
