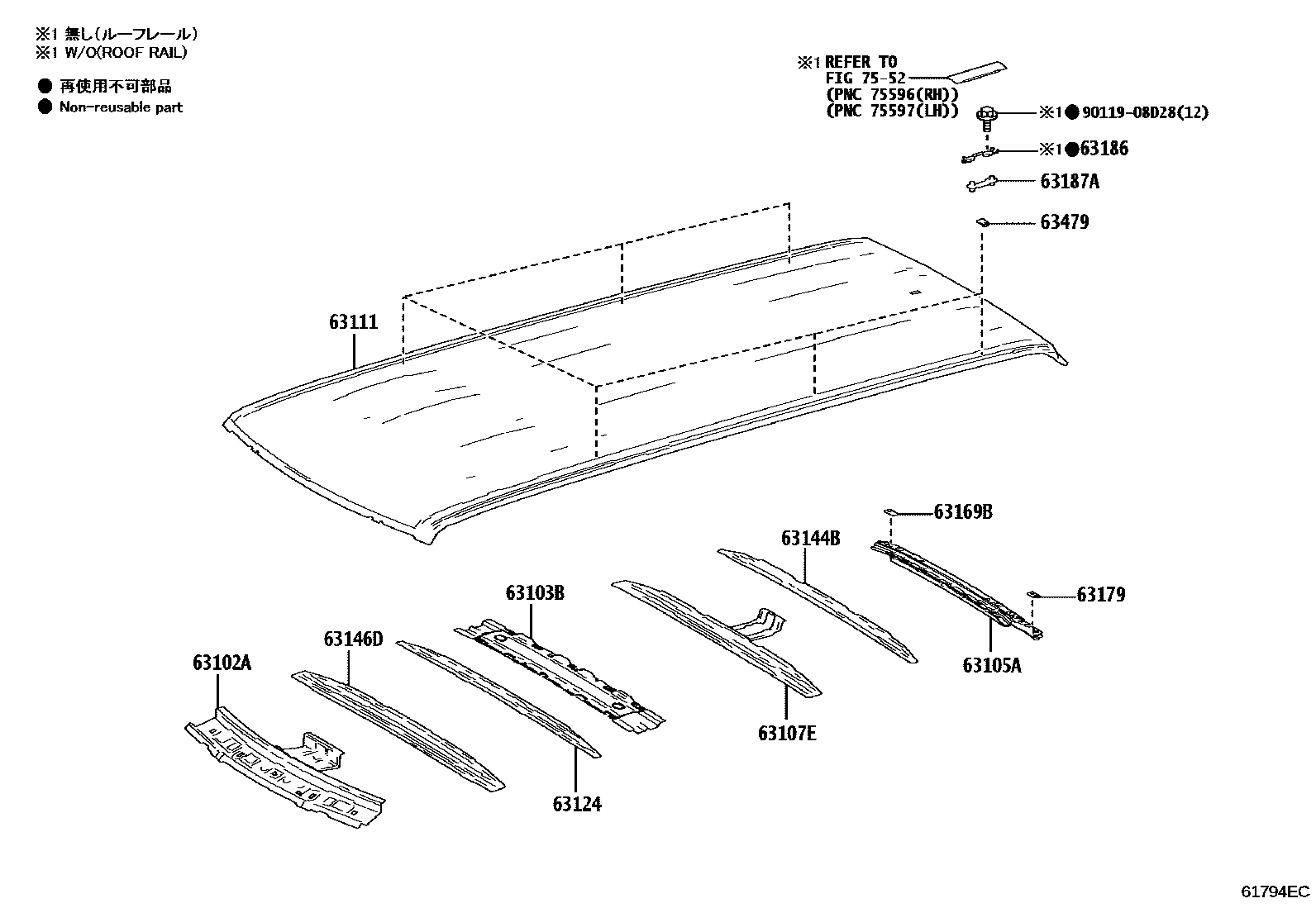

ROOF PANEL & BACK PANEL

0001 1������� 0002 1�������(������) 0003 1������ 0004 1������

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60902iGDJ250,TRJ250..R202404

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-60090supersedes 63106-60100iGDJ250,TRJ250..R202404

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60320iGDJ250,TRJ250202404

63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5

main63107-60060iGDJ250,TRJ250202404

63111PANEL, ROOF

main63111-60B00iGDJ250,TRJ250..R202404

main63111-60A60supersedes 63111-60A70iGDJ250,TRJ250..A,E,F,T202404

63124REINFORCEMENT, ROOF PANEL, NO.1

main63123-60100iGDJ250,TRJ250..R202404

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-60090iGDJ250,TRJ250202404

63146DREINFORCEMENT, ROOF PANEL, NO.6

main63128-60040iGDJ250,TRJ250..R202404

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iGDJ250,TRJ250202404

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iGDJ250,TRJ250202404

63186BRACKET, ROOF RACK, FRONT

main63185-42020×6iGDJ250,TRJ250..R202404

63187ABRACKET, ROOF RACK, REAR

main63187-35020×6iGDJ250,TRJ250202404

63479RETAINER, ROOF INNER RACK

main63479-48010×6iGDJ250,TRJ250202404

7552

9011908D28

main90119-08D28

15 parts on this diagram · 4 diagrams in section
