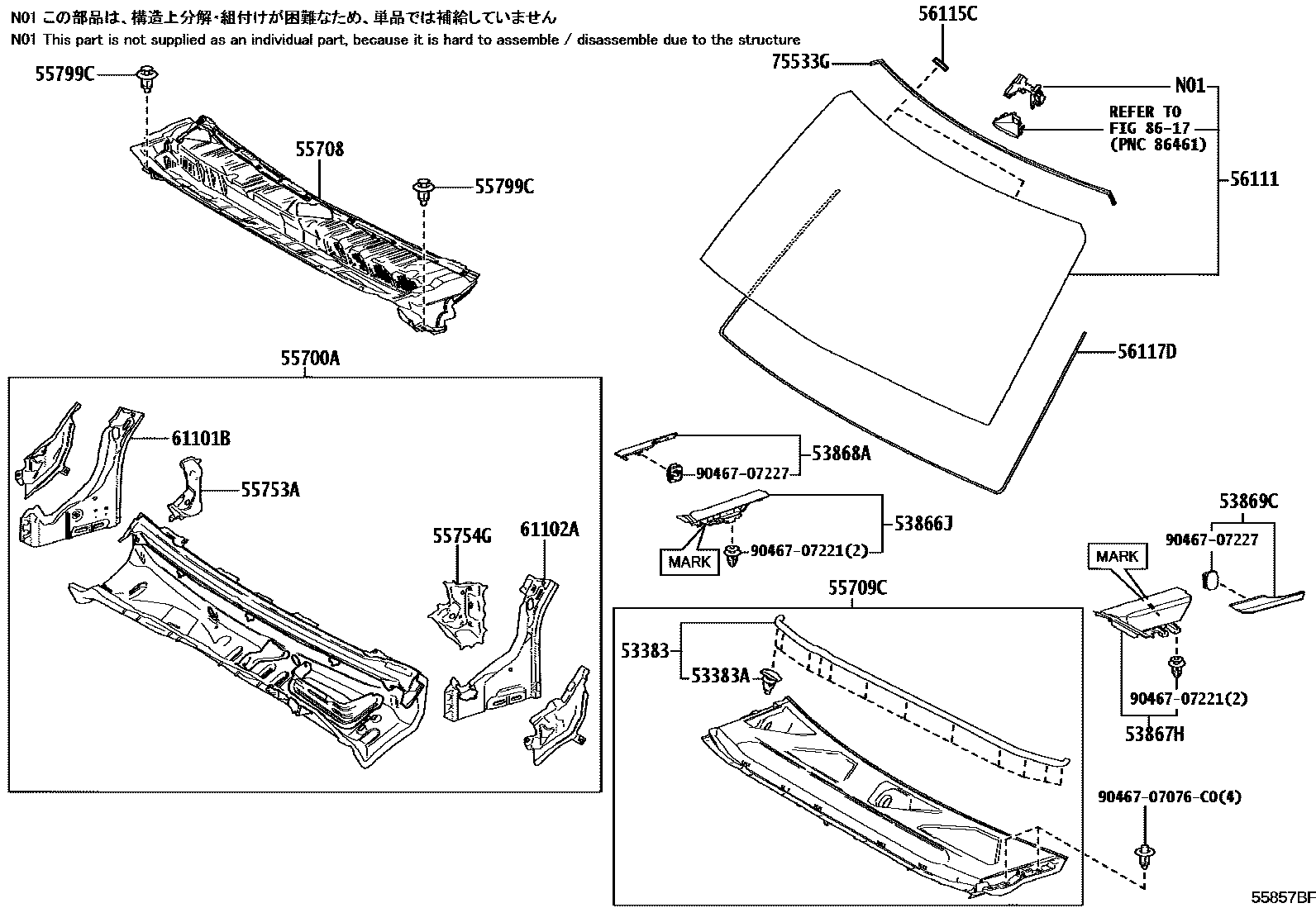

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-60140iGDJ250,TRJ250202404

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main67867-48030×12iGDJ250,TRJ250202404

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-60110iGDJ250,TRJ250202404-202412

main53866-60111iGDJ250,TRJ250202412

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-60080iGDJ250,TRJ250202404-202412

main53867-60081iGDJ250,TRJ250202412

53868ASEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-60060iGDJ250,TRJ250202404

53869CSEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-60040iGDJ250,TRJ250202404

55700APANEL ASSY, COWL TOP

main55700-60F40iGDJ250,TRJ250202404-202405

main55700-60F41iGDJ250,TRJ250202405

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-60410iGDJ250,TRJ250202404

55709CCOVER SUB-ASSY, COWL SIDE VENTILATOR, LH

main55709-60020iGDJ250,TRJ250202404

55753ABRACKET, INSTRUMENT PANEL TO COWL

main55753-60050iGDJ250,TRJ250202404

55754GBRACKET, INSTRUMENT PANEL TO COWL, NO.2

main55754-60030iGDJ250,TRJ250202404

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07217×2iGDJ250,TRJ250202404

56111GLASS, WINDSHIELD

main56101-6B928iGDJ250,TRJ250..E,R,T202404

main56101-6B929iGDJ250..A,F202404

56115CSTOPPER, WINDSHIELD GLASS

main56115-60050iGDJ250,TRJ250202404

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-64010iGDJ250,TRJ250202404

61101BPANEL SUB-ASSY, COWL SIDE, RH

main61101-60340iGDJ250,TRJ250202404

61102APANEL SUB-ASSY, COWL SIDE, LH

main61102-60370iGDJ250,TRJ250202404

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-60100iGDJ250,TRJ250202404

8617

9046707076C0

main90467-07076C0

9046707221

main90467-07221

9046707227

main90467-07227

22 parts on this diagram · 1 diagram in section
