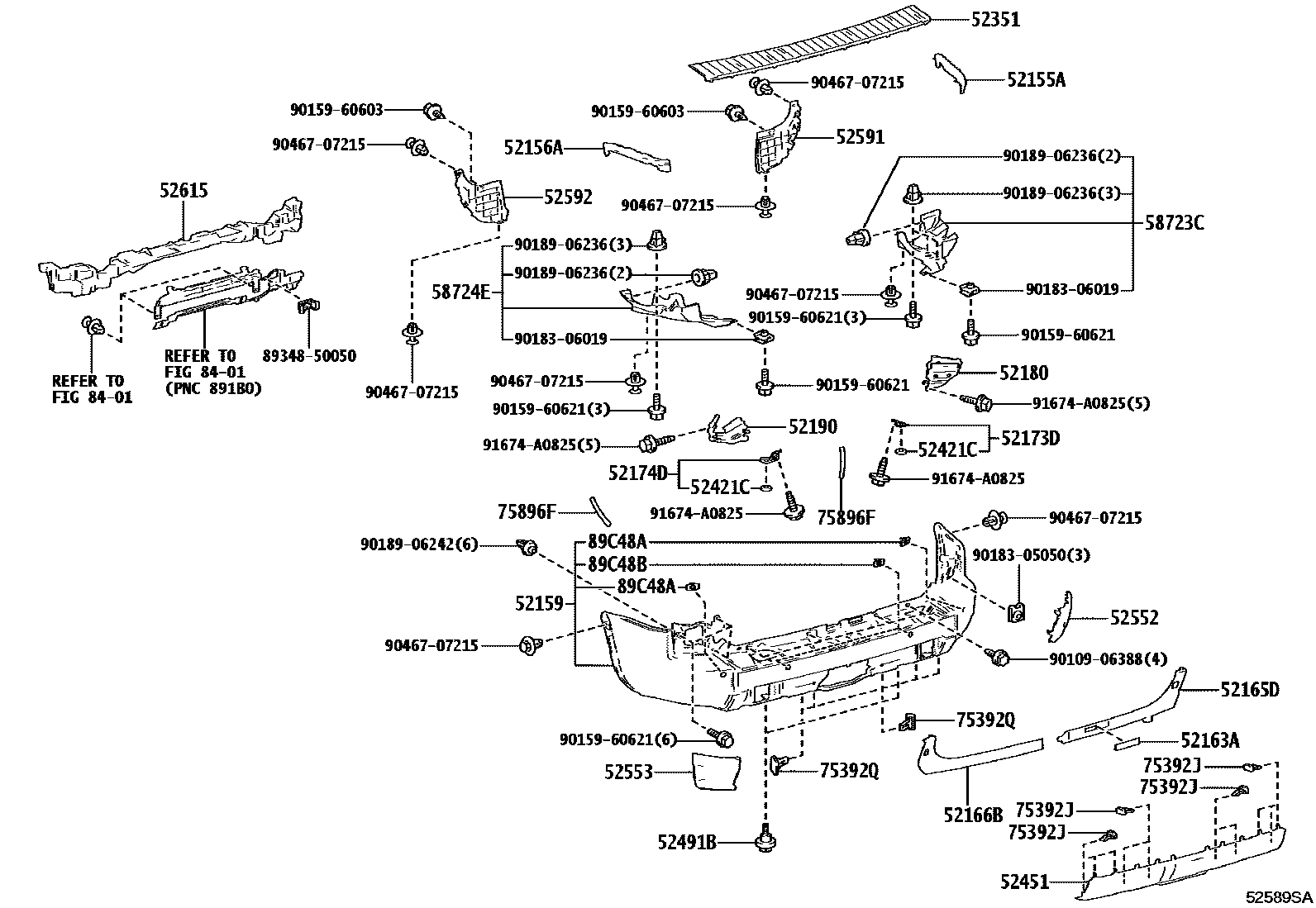

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52165DEXTENSION, REAR BUMPER CORNER, RH
52166BEXTENSION, REAR BUMPER CORNER, LH
52173DREINFORCEMENT, REAR BUMPER BAR, RH
52174DREINFORCEMENT, REAR BUMPER BAR, LH
52180BRACKET ASSY, REAR BUMPER SIDE MOUNTING, RH
52190BRACKET ASSY, REAR BUMPER SIDE MOUNTING, LH
52351STEP, REAR BUMPER
52421CPAD, REAR BUMPER
52451GUARD, REAR BUMPER
52491BBOLT, BUMPER PAD
52552FILLER, REAR BUMPER, RH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
DK.GRAY,1L7
BLACK,202
ATTITUDE BLACK MC.,218
AVANT-GARDE BRONZE ME.,4V8
SAND,2ZC ,5C8
SAND,5C8
SMOKY BLUE,2ZD ,8X0
SMOKY BLUE,8X0
52553FILLER, REAR BUMPER, LH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
DK.GRAY,1L7
BLACK,202
ATTITUDE BLACK MC.,218
AVANT-GARDE BRONZE ME.,4V8
SAND,2ZC ,5C8
SAND,5C8
SMOKY BLUE,2ZD ,8X0
SMOKY BLUE,8X0
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
58723CPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
58724EPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
75392JRETAINER, OUTSIDE MOULDING
75392QRETAINER, OUTSIDE MOULDING, NO.2
75896FTAPE, MOULDING
8401
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
DUMMY-MAT BLACK
8934850050RETAINER, ULTRASONIC SENSOR, NO.1
9010906388
9015960603
9015960621
9018305050
9018306019
9018906236
9018906242
9046707215
91674A0825
37 parts on this diagram · 2 diagrams in section
