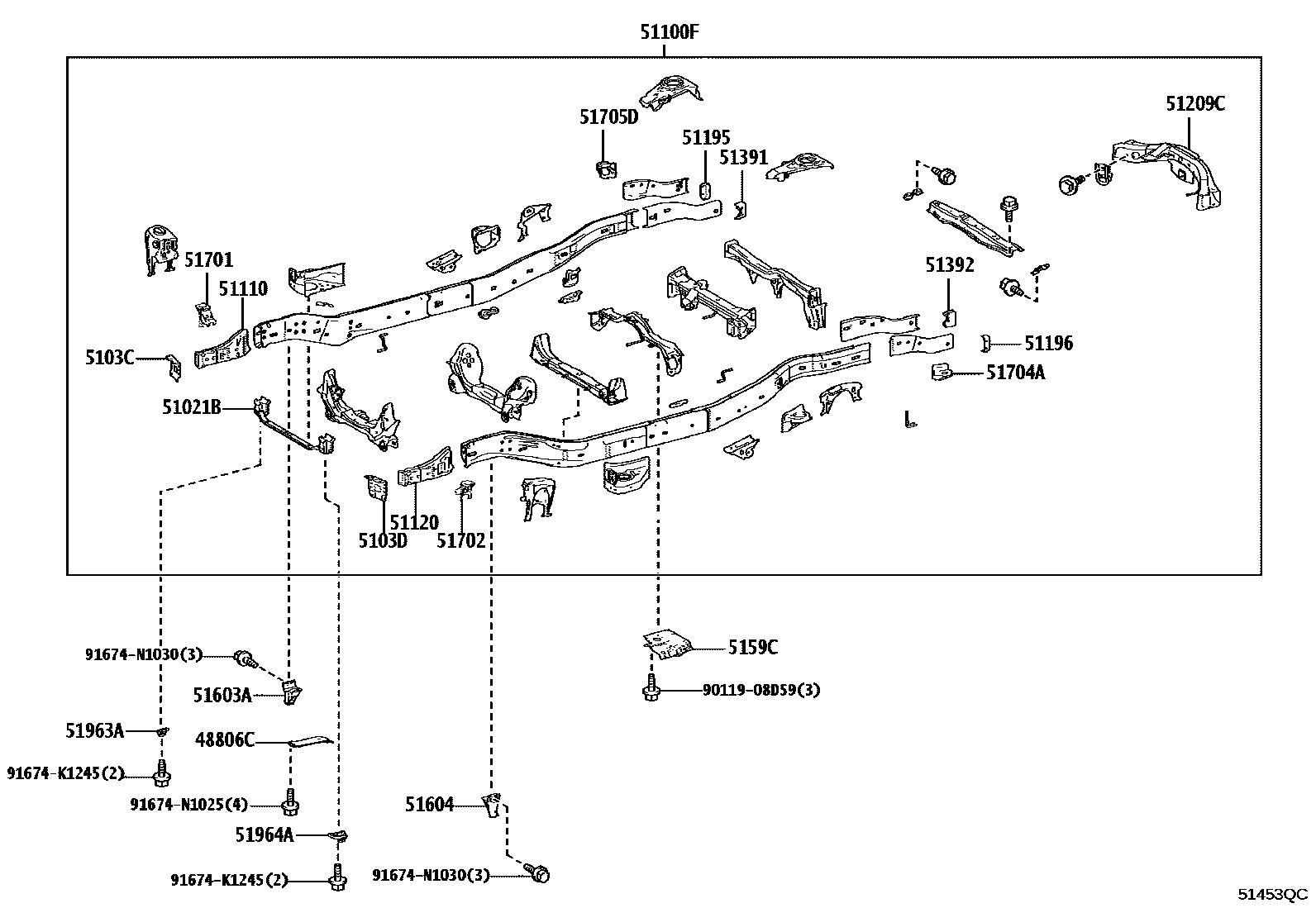

FRAME

0001 1 0002 1������� 0003 1�������

48806CBRACE SUB-ASSY, FRONT STABILIZAR, CENTER

main48806-60040iGDJ250202404

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-60080iGDJ250,TRJ250202404

5103CPLATE SUB-ASSY, SIDE RAIL EXTENSION, RH

main5103C-60030iGDJ250,TRJ250202404

5103DPLATE SUB-ASSY, SIDE RAIL EXTENSION, LH

main5103D-60030iGDJ250,TRJ250202404

51100FFRAME SUB-ASSY

main51001-6AZ50iGDJ250202404

main51001-6AZ90iGDJ250202404

main51001-6BB70iTRJ250202404

main51001-6BB80iTRJ250202404

51110EXTENSION ASSY, SIDE RAIL, RH

main51110-60110iGDJ250,TRJ250202404

51120EXTENSION ASSY, SIDE RAIL, LH

main51120-60110iGDJ250,TRJ250202404

51195PATCH, REAR FRAME RAIL, RH

main51191-60030iGDJ250,TRJ250202404

51196PATCH, REAR FRAME RAIL, LH

main51192-60020iGDJ250,TRJ250202404

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-60290iGDJ250,TRJ250202404

main51209-60310iGDJ250,TRJ250202404

51391GUSSET, FRAME REAR CROSSMEMBER, RH

main51391-60060iGDJ250,TRJ250202404

51392GUSSET, FRAME REAR CROSSMEMBER, LH

main51391-60060iGDJ250,TRJ250202404

5159CINSULATOR, FRAME CROSSMEMBER HEAT

main5159C-60010iTRJ250202404

51603ABRACKET SUB-ASSY, FRONT BOUND STOPPER, RH

main51603-60060iGDJ250,TRJ250202404

51604BRACKET SUB-ASSY, FRONT BOUND STOPPER, LH

main51604-60060iGDJ250,TRJ250202404

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-60300iGDJ250,TRJ250202404

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51702-60210iGDJ250,TRJ250202404

51704ABRACKET SUB-ASSY, CAB REAR MOUNTING, LH

main51706-60050iGDJ250,TRJ250202404

51705DBRACKET SUB-ASSY, CAB REAR MOUNTING, RH

main51705-60180iGDJ250,TRJ250202404

51963AHOOK, TRANSPORT, FRONT RH

main51963-60120iGDJ250,TRJ250202404

51964AHOOK, TRANSPORT, FRONT LH

main51960-60040iGDJ250,TRJ250202404

9011908D59

main90119-08D59

91674K1245

main91674-K1245

91674N1025

main91674-N1025

91674N1030

main91674-N1030

25 parts on this diagram · 3 diagrams in section
