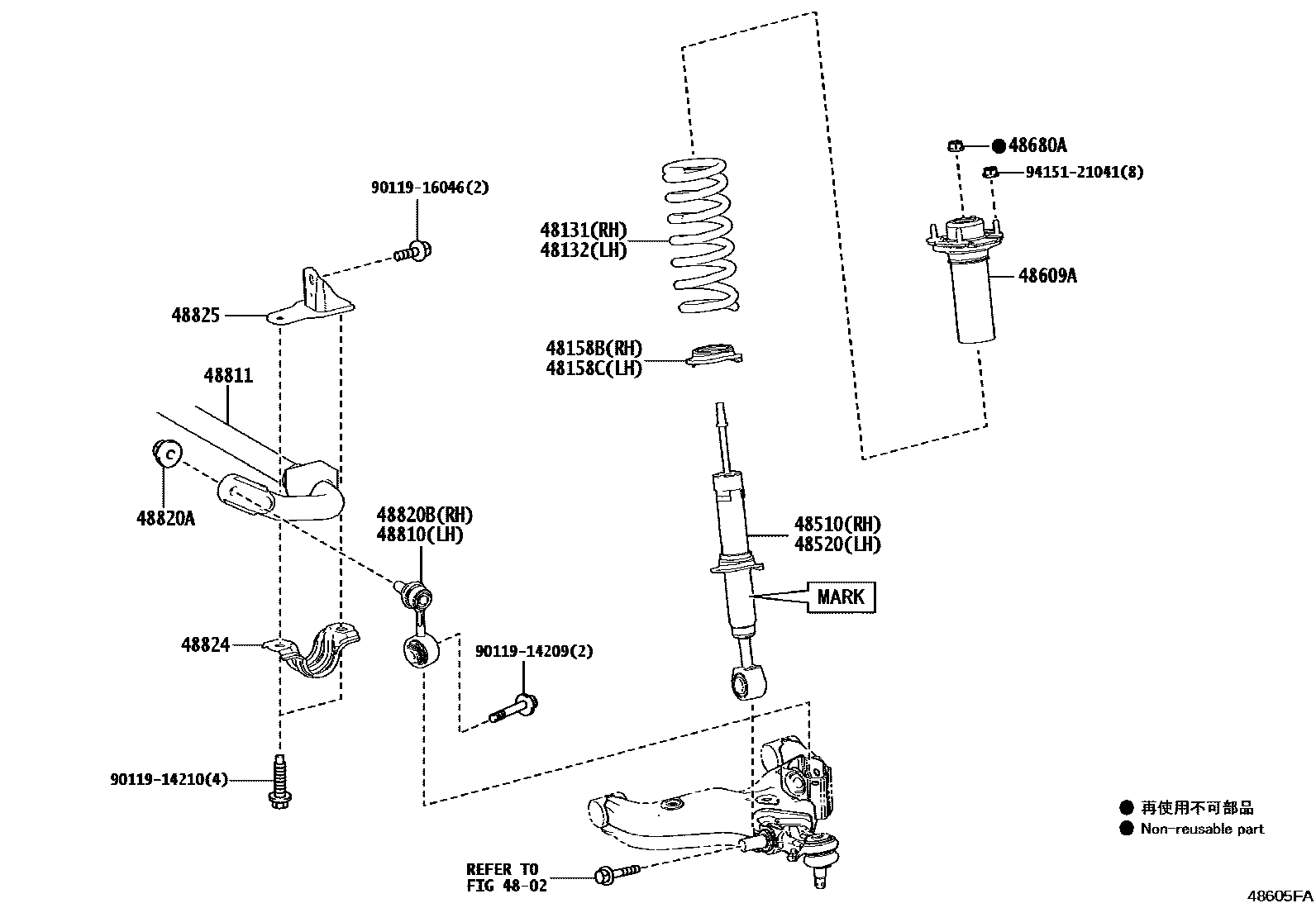

FRONT SPRING & SHOCK ABSORBER

0001 1��(ON-OFF��������) 0002 1��(ON-OFF��������)

4802

48131SPRING, FRONT COIL, RH

main48131-60S61iTRJ250..R202404

main48131-60S71iTRJ250..E,T202404

main48131-60T01iGDJ250..E,R,T202404

main48131-60T31iGDJ250..A,F202404

48132SPRING, FRONT COIL, LH

main48131-60S61iTRJ250..R202404

main48131-60S71iTRJ250..E,T202404

main48131-60T01iGDJ250..E,R,T202404

main48131-60T31iGDJ250..A,F202404

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-60020iGDJ250,TRJ250202404

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-60020iGDJ250,TRJ250202404

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-69815iGDJ250..A,F202404

main48510-80C54iTRJ250202404

main48510-80C55iGDJ250..E,R,T202404

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-69815iGDJ250..A,F202404

main48510-80C54iTRJ250202404

main48510-80C55iGDJ250..E,R,T202404

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-60120iGDJ250,TRJ250202404

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94188-01401iGDJ250,TRJ250202404

48810LINK ASSY, FRONT STABILIZER, LH

main48810-60100iGDJ250,TRJ250202404

48811BAR, STABILIZER, FRONT

main48804-60210iGDJ250,TRJ250..E,R,T202404

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-16007iGDJ250,TRJ250202404

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60150iGDJ250,TRJ250202404

48824BRACKET, STABILIZER, FRONT

main48824-60260iGDJ250,TRJ250202404

48825BRACKET, STABILIZER, NO.2

main48827-60130iGDJ250,TRJ250..E,R,T202404

9415121041

main94151-21041

16 parts on this diagram · 2 diagrams in section
